DTC 35

The ECU detected an open in the circuit.

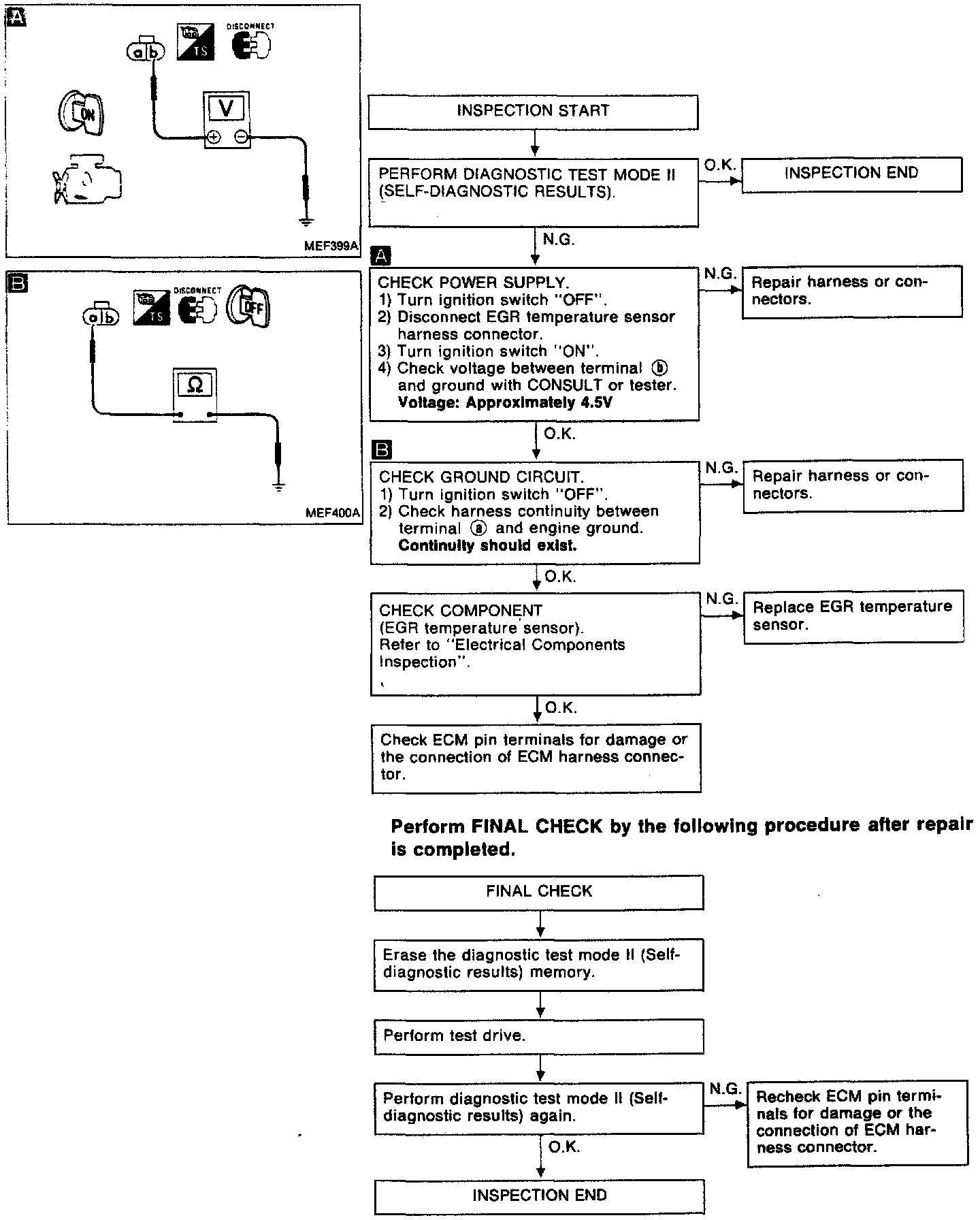

DTC 35 EGR Temperature Sensor Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

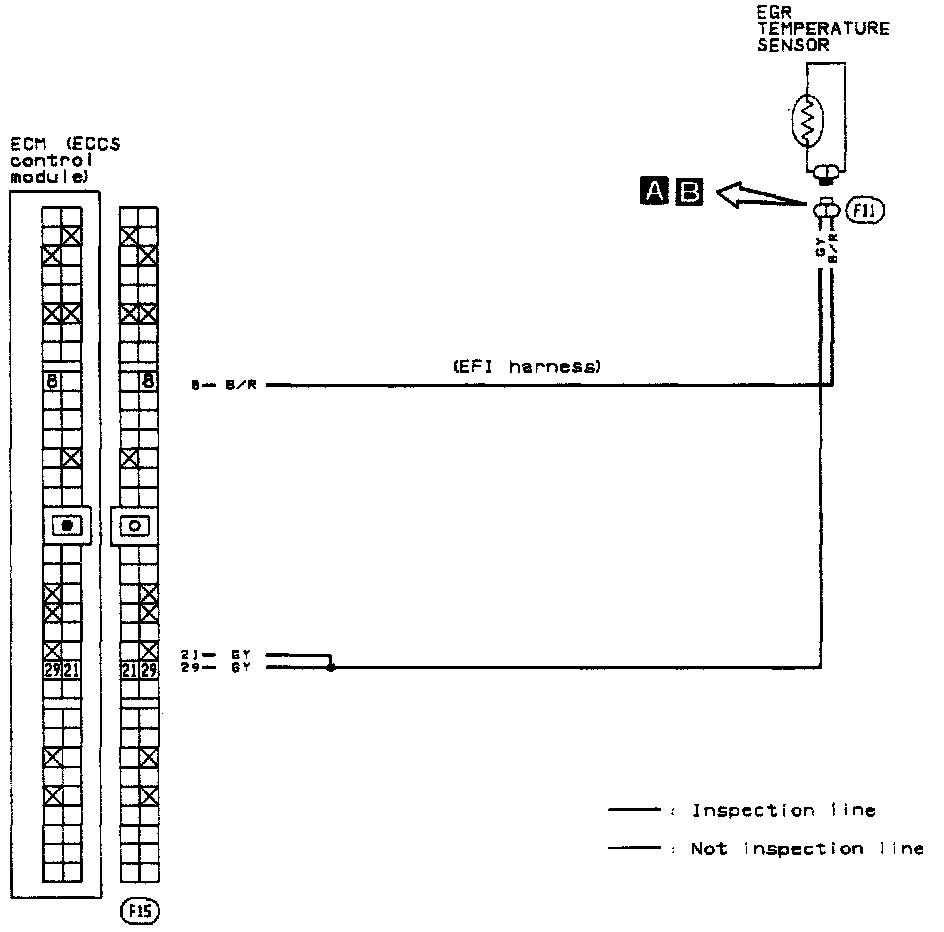

EGR Temperature Sensor Circuit:

CIRCUIT DIAGRAM IMAGE

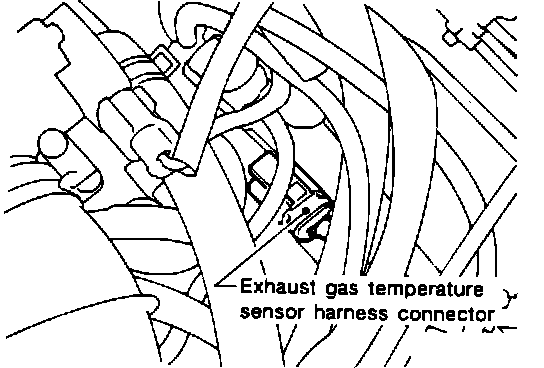

Exhaust Gas Temperature Sensor Harness Connector:

SENSOR CONNECTOR IMAGE
