DTC 33

The ECU detected an open in the circuit

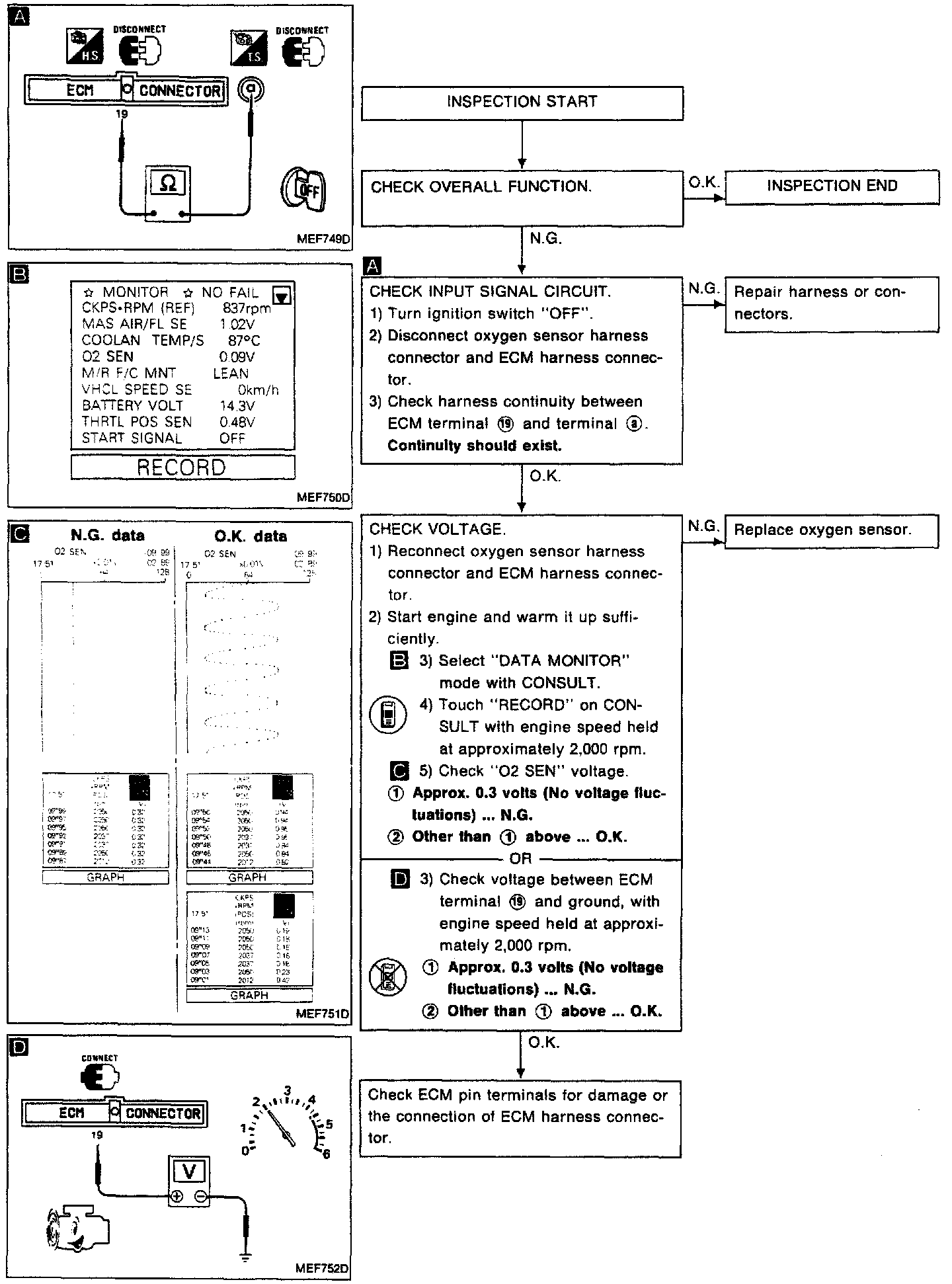

DTC 33 Oxygen Sensor Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

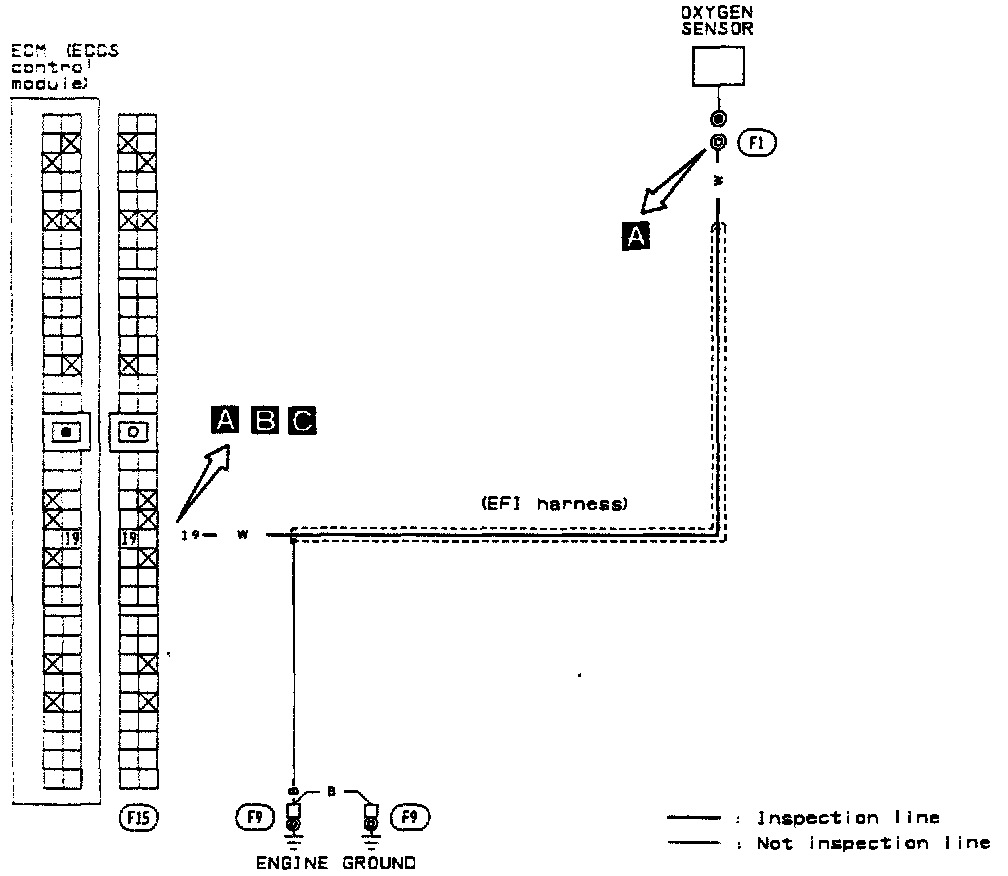

Oxygen Sensor Circuit:

CIRCUIT DIAGRAM IMAGE

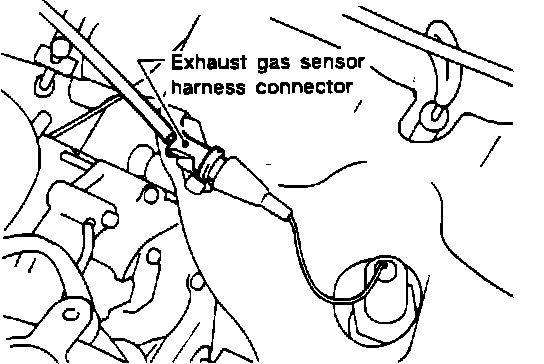

Code 33 Oxygen Sensor Connector:

SENSOR CONNECTOR IMAGE

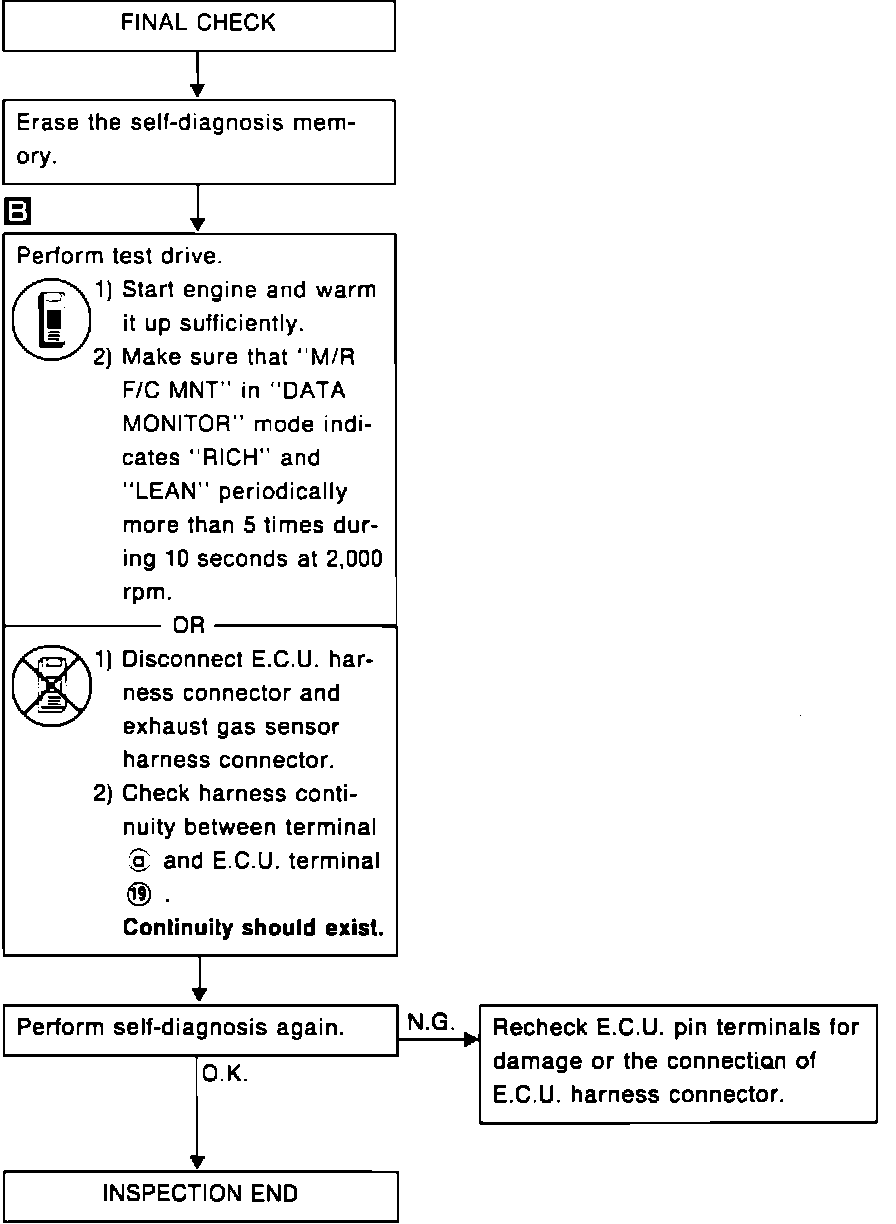

Final Check Image:

FINAL CHECK IMAGE
