DTC 32

The EGR temperature sensor (Ca. models only) signaled the ECU that the EGR system was inoperative.

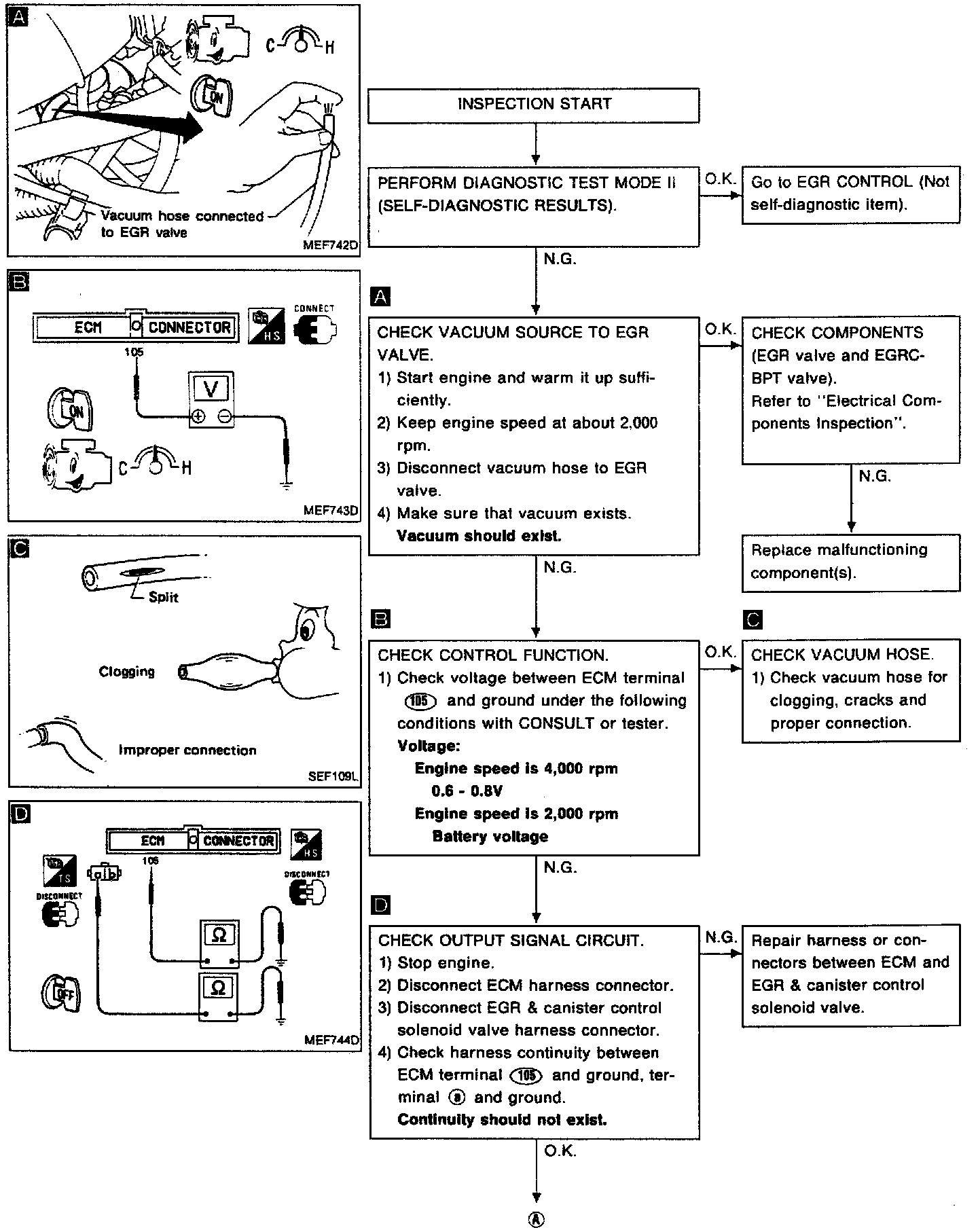

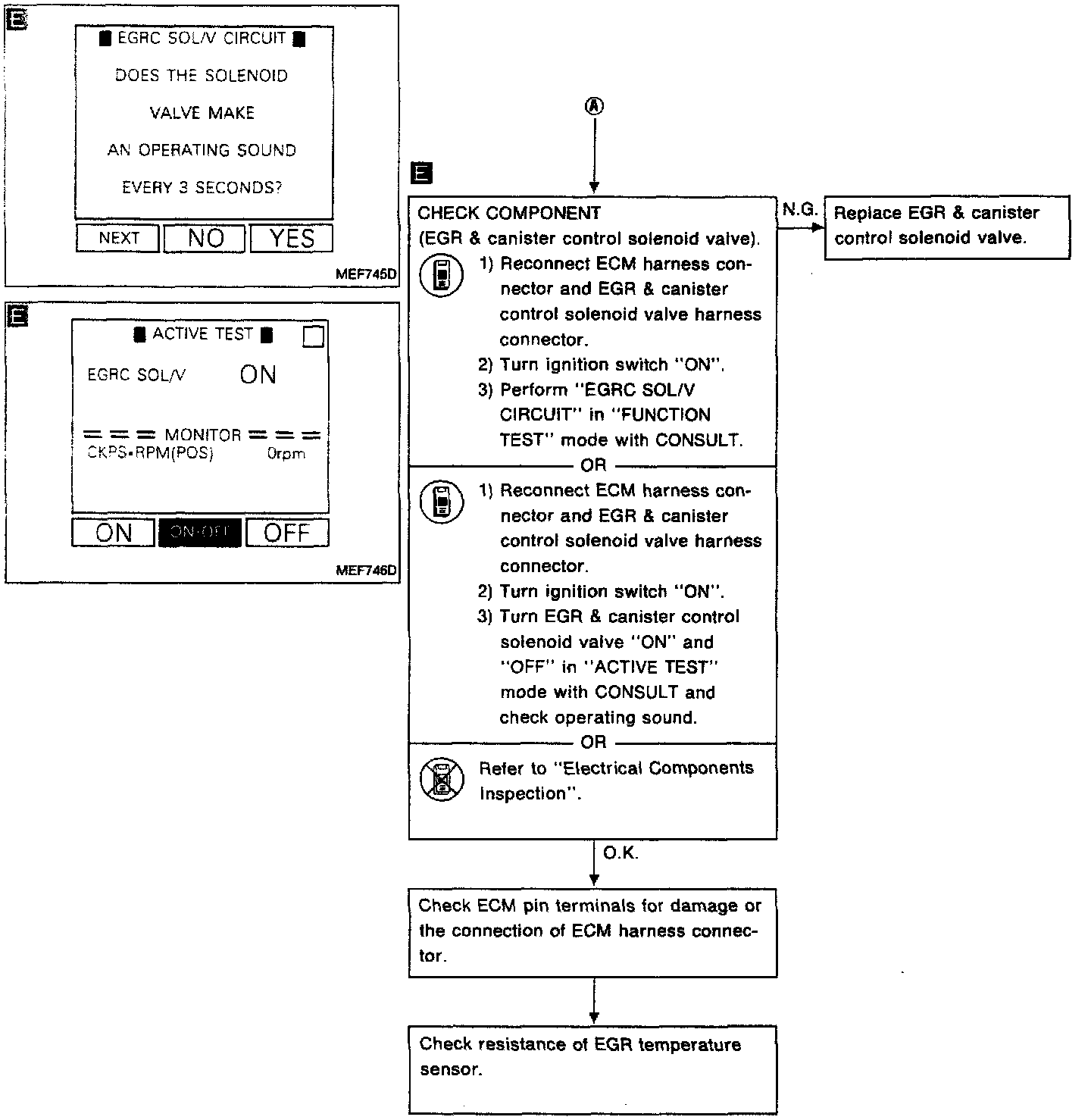

DTC 32 EGR Control Solenoid Diagnostic Chart:

DTC 32 EGR Control Solenoid Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

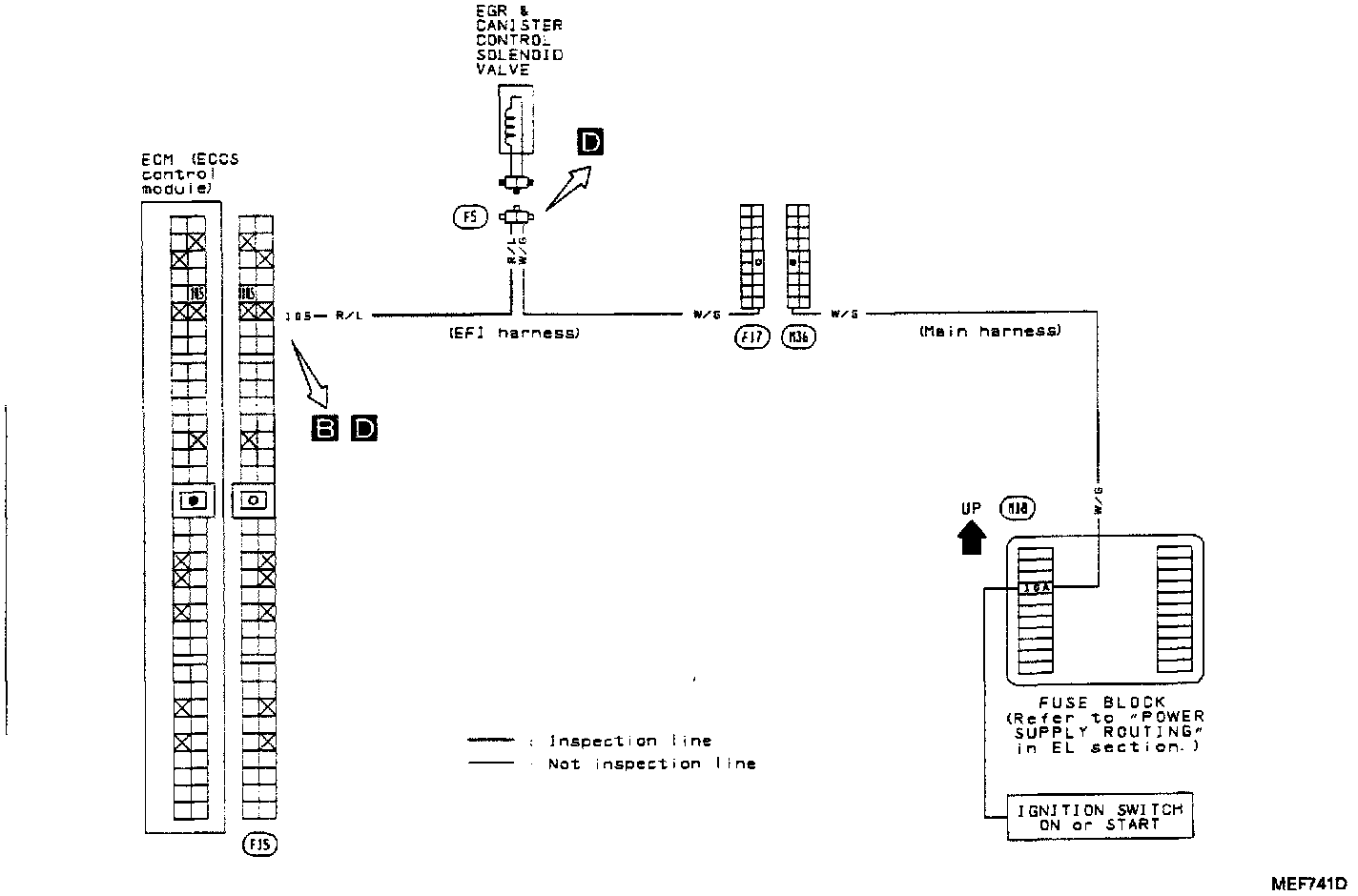

EGR Control Solenoid Circuit:

CIRCUIT DIAGRAM IMAGE

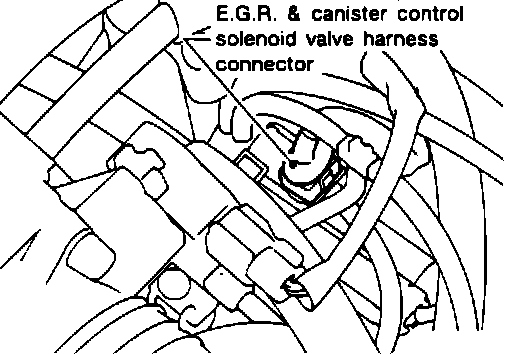

Exhaust Gas Temperature Sensor Connector:

ELECTRICAL CONNECTORS IMAGE

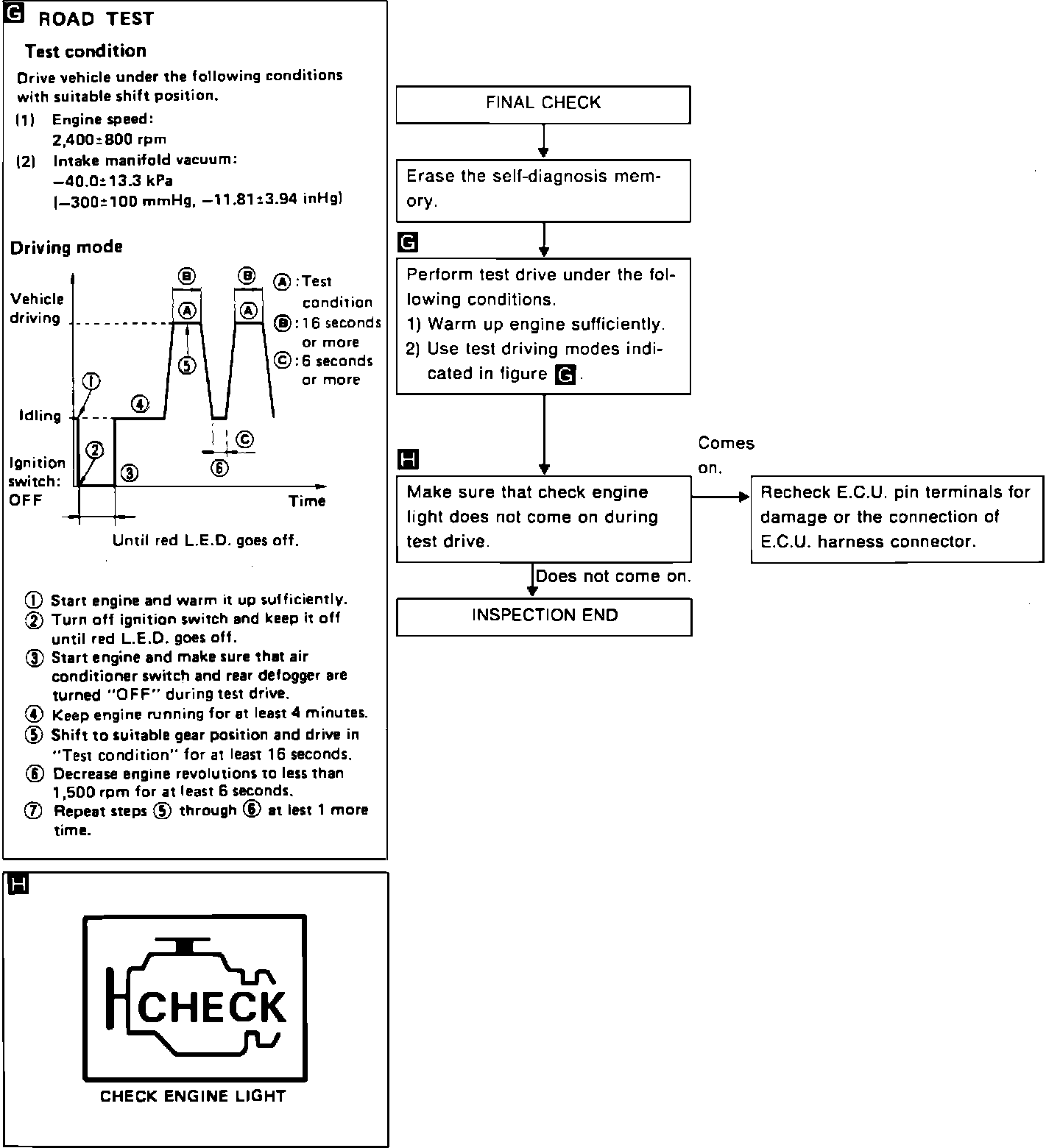

Final Check:

FINAL CHECK IMAGE
