DTC 21

The ECU did not detect the ignition primary signal during starting or running.

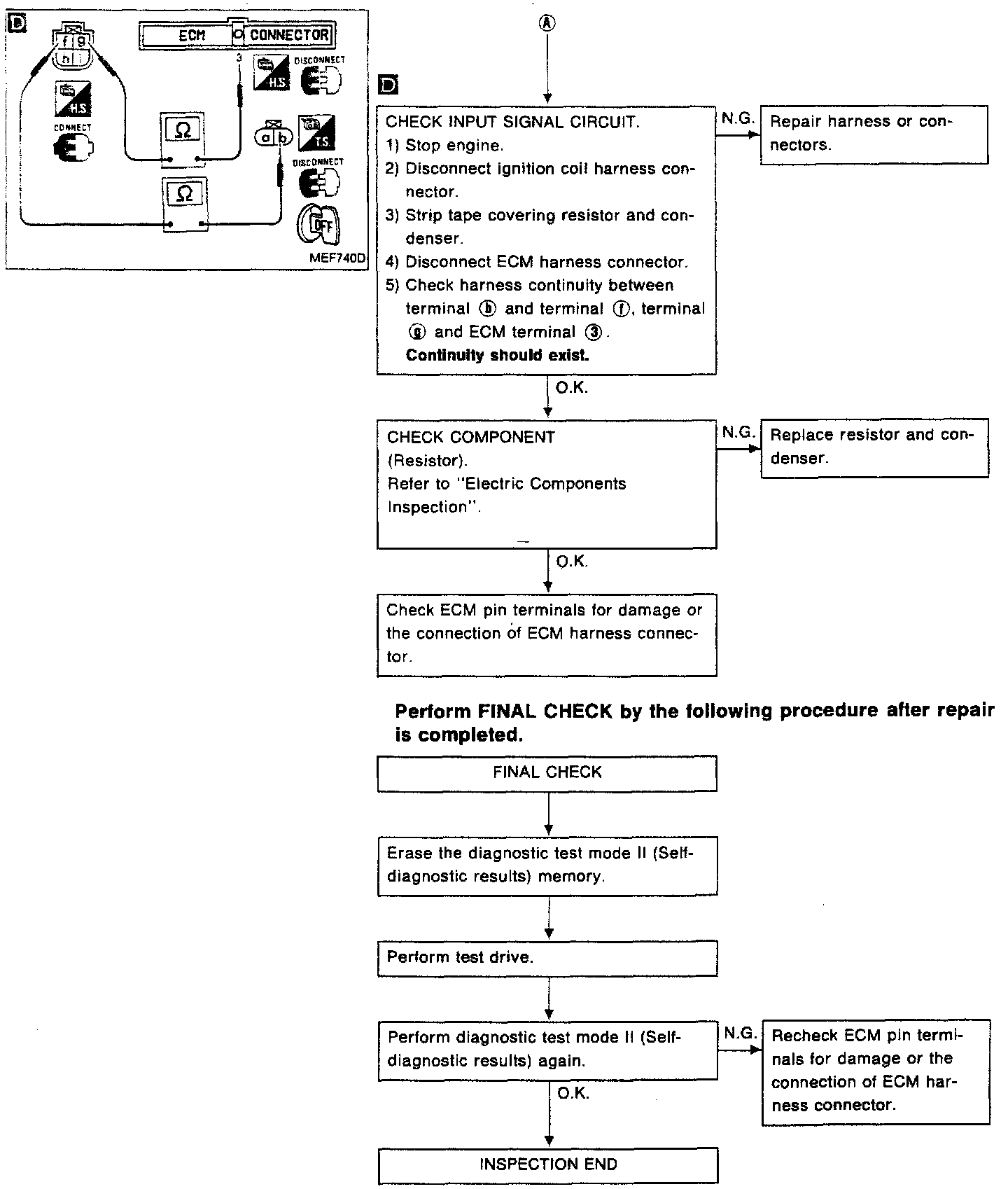

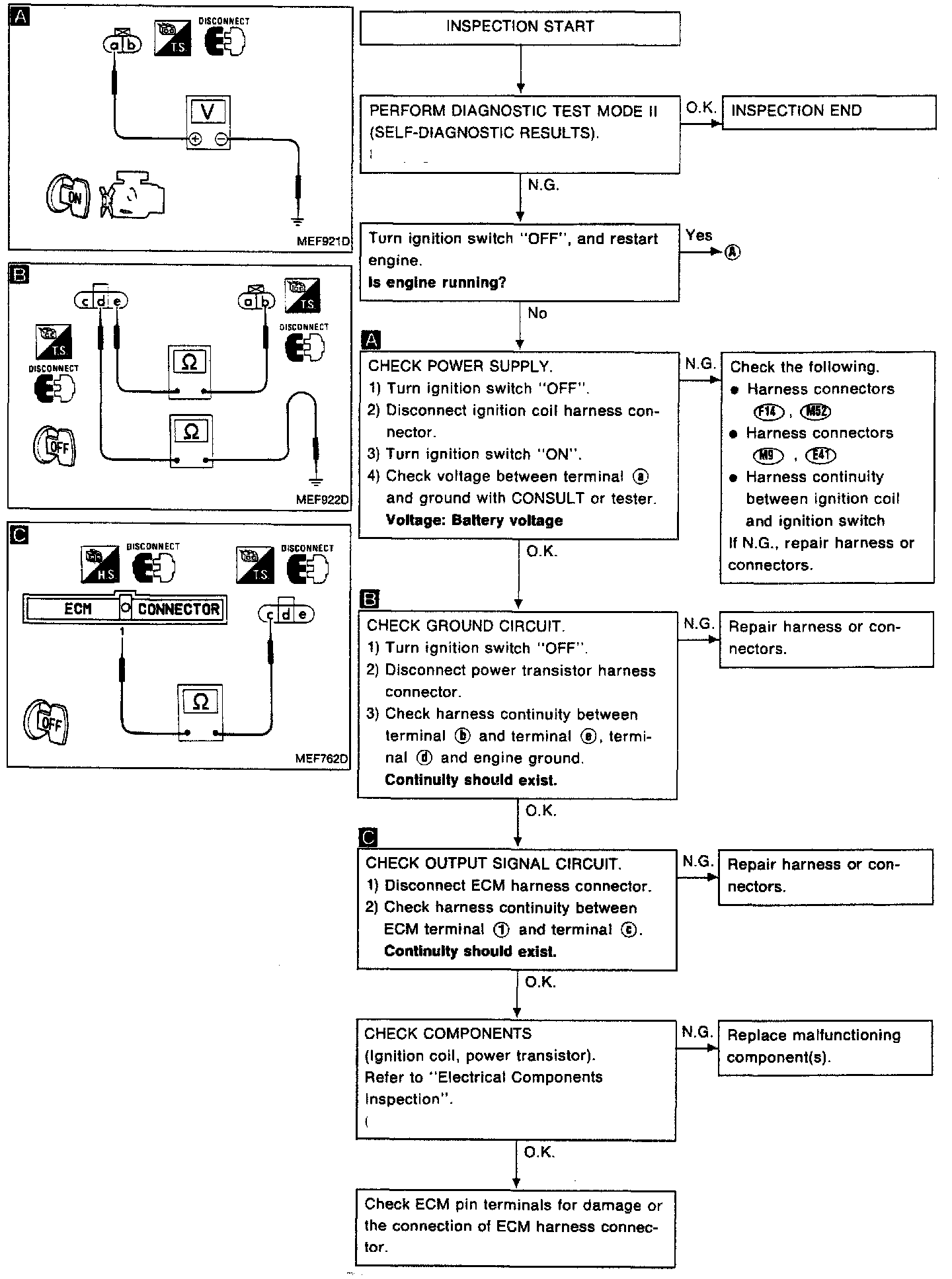

DTC 21 Ignition Signal Diagnostic Chart:

DTC 21 Ignition Signal Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

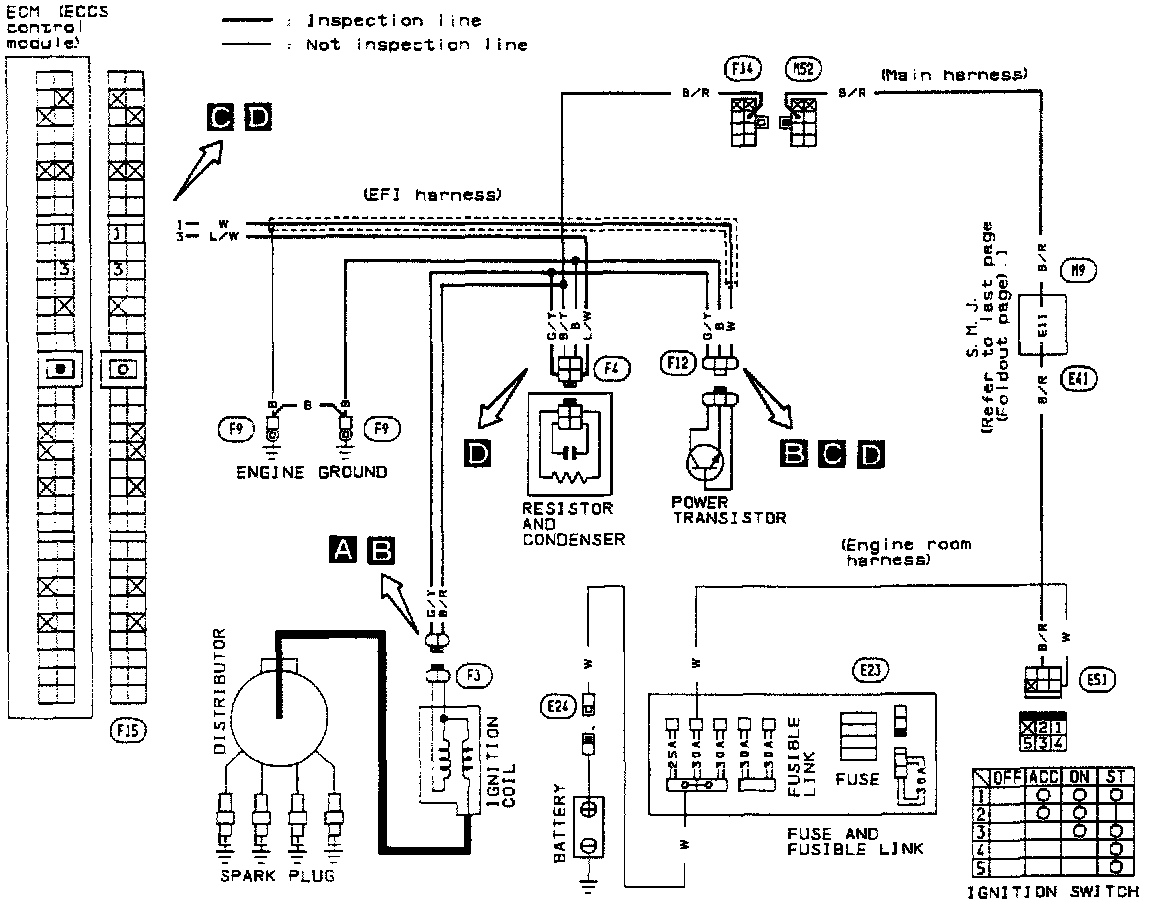

Ignition Signal Circuit:

CIRCUIT DIAGRAM IMAGE

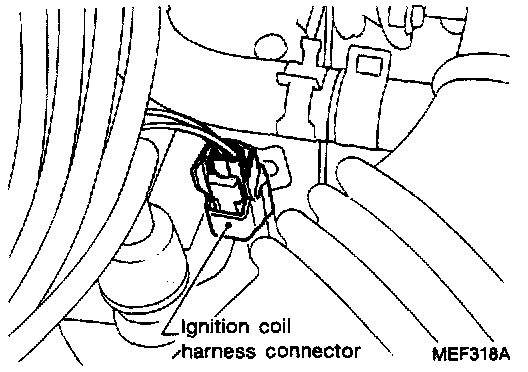

Ignition Coil Connector Location:

ELECTRICAL CONNECTORS IMAGE
