DTC 11

The ECU sensed that the 1° or 180° signal was not received for the first few seconds during starting or was erratic during engine operation.

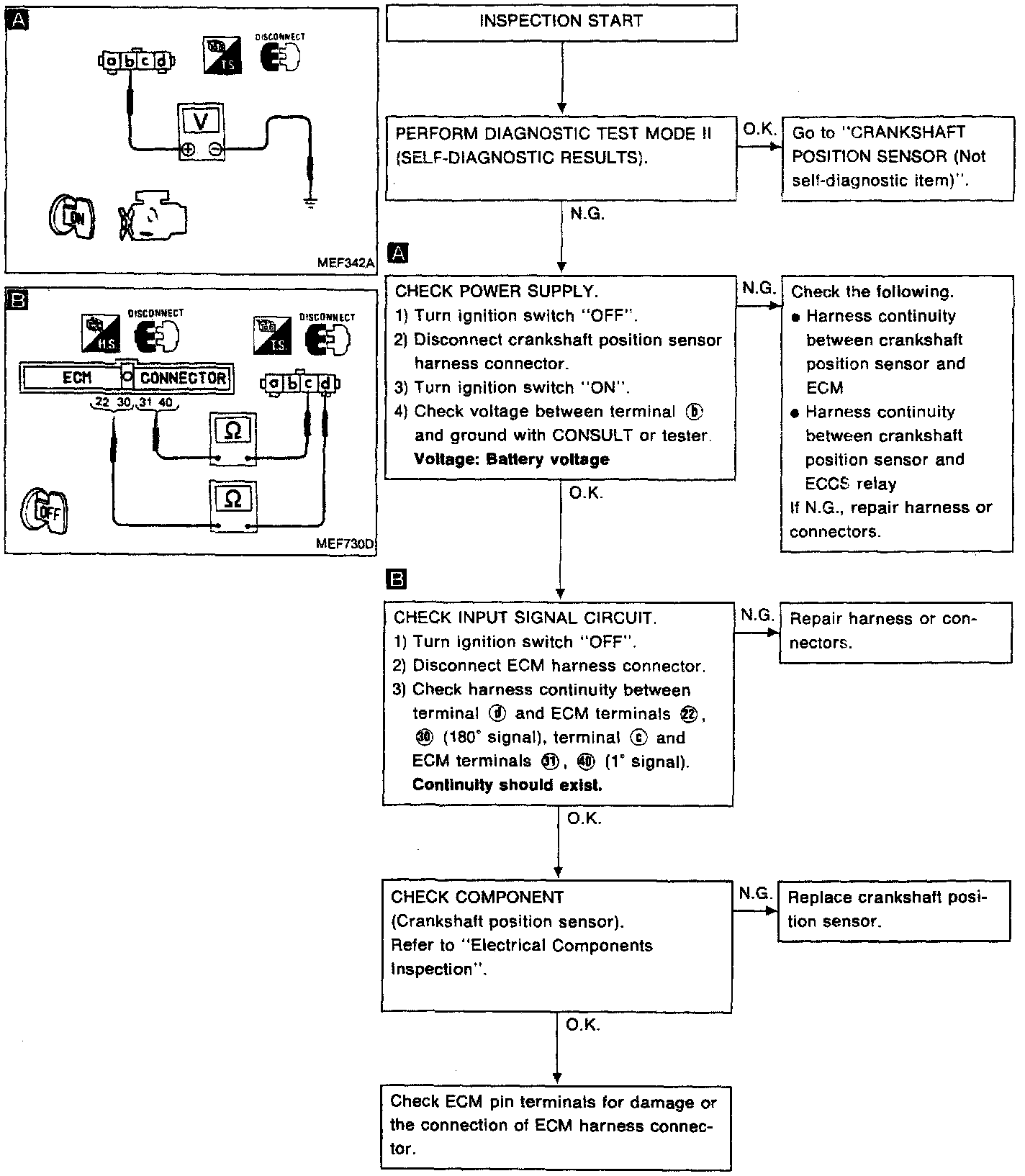

DTC 11 Crankshaft Position Sensor Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

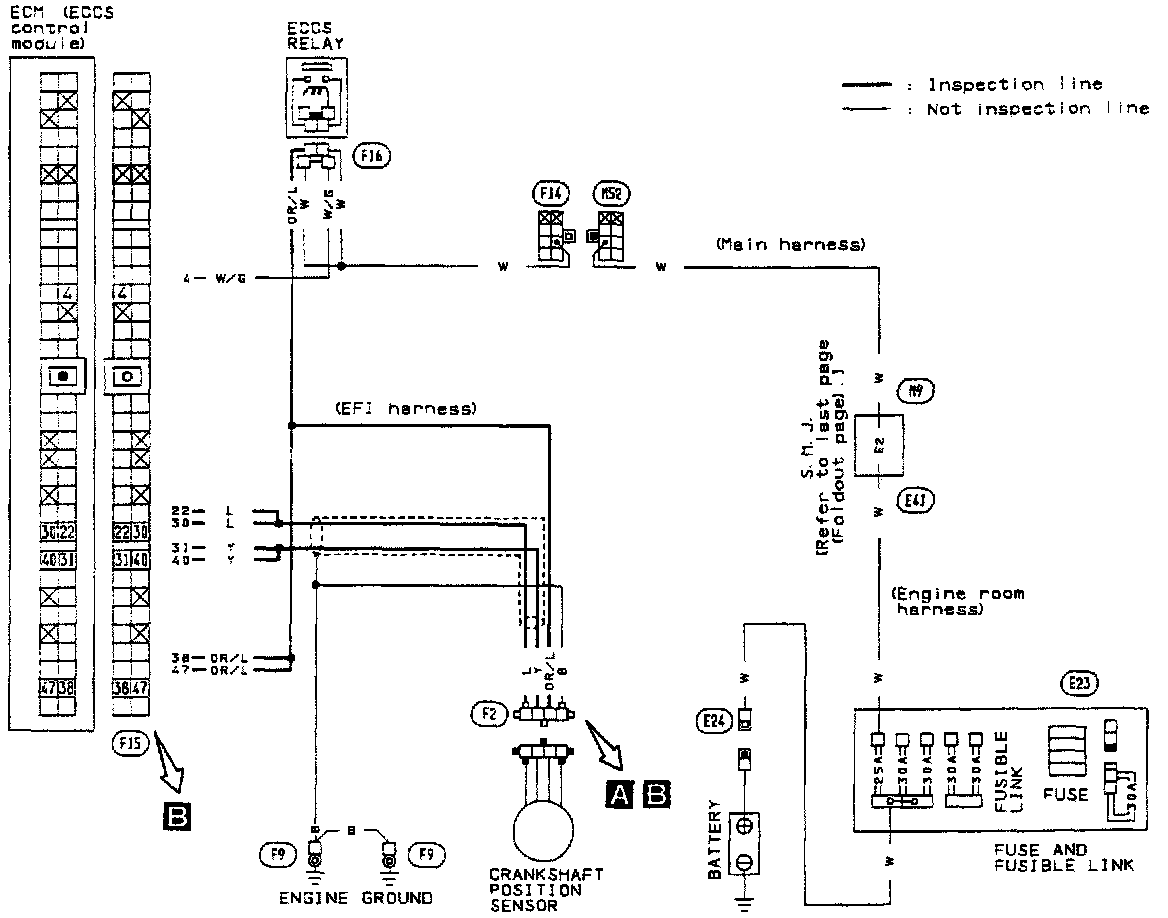

Crankshaft Position Sensor Circuit:

CIRCUIT DIAGRAM IMAGE

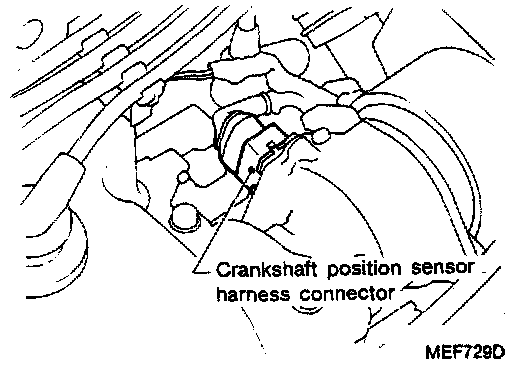

Crankshaft Position Sensor Connector:

ELECTRICAL CONNECTORS IMAGE

Final Check:

FINAL CHECK IMAGE
