Valve Body: Testing and Inspection
Solenoid Assembly Test:

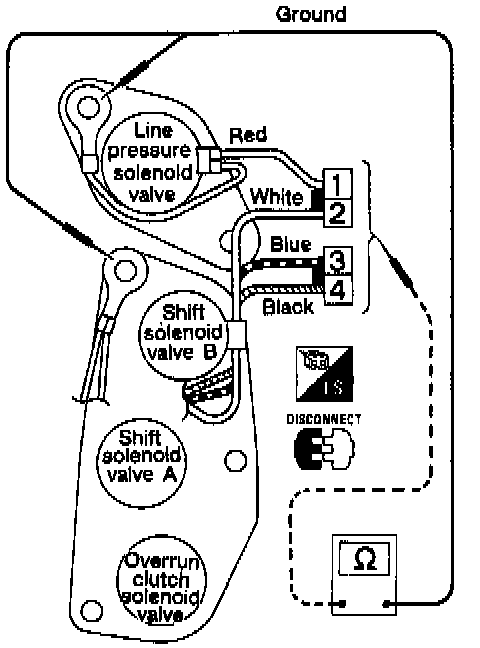

3-UNIT SOLENOID ASSEMBLY (Shift solenoid valve A, B and overrun clutch solenoid valve) AND LINE PRESSURE SOLENOID VALVE
^ Check resistance between terminals of each solenoid.
3-UNIT SOLENOID ASSEMBLY (Shift solenoid valve A, B and overrun clutch solenoid valve) AND LINE PRESSURE SOLENOID VALVE
^ Check resistance between terminals of each solenoid.
