Audio - Radio Identification

Classification:
EL93-007

Section:
Electrical

Reference:
TECHNICAL BULLETIN NTB93-035

Models:
All

Date:
February 23, 1993

RADIO IDENTIFICATION
1993 MODELS

APPLIED MODELS:
All

SERVICE INFORMATION

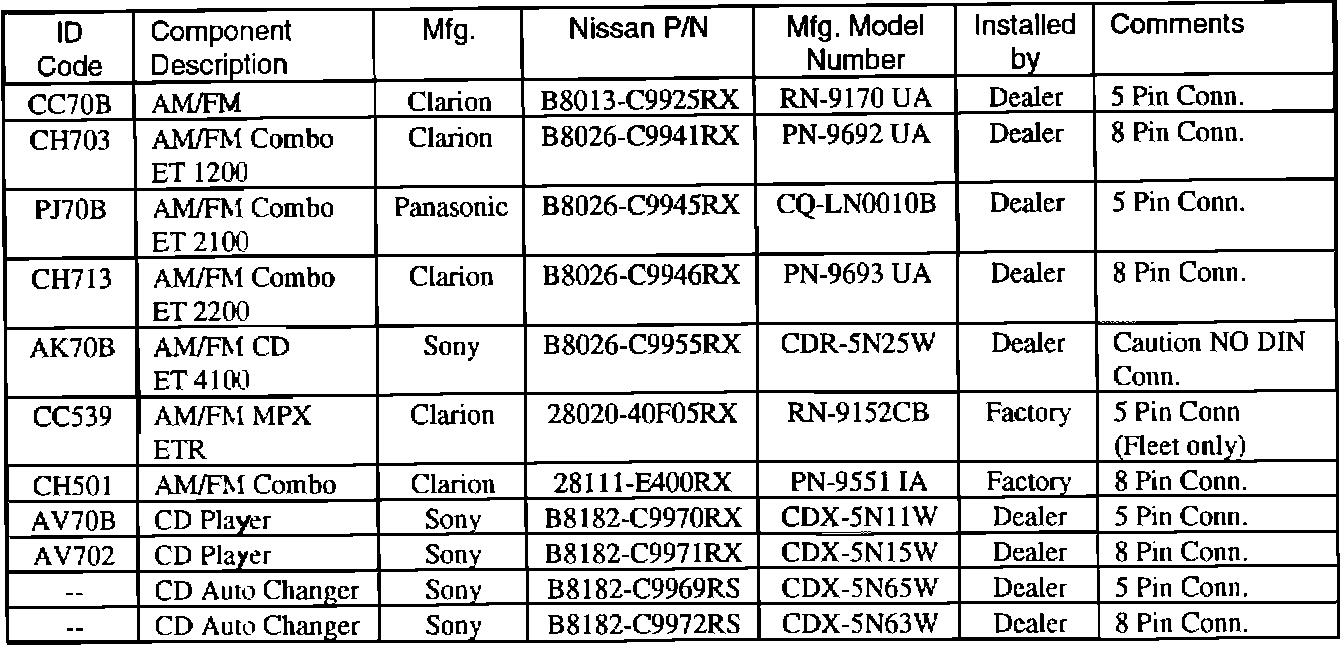

This Bulletin contains radio identification information for all available 1993 Nissan models. Use this Bulletin to identify the component manufacturer and model number when ordering an exchange unit under the Direct Dealer Manufacturer Radio Warranty Exchange Program.

The 1993 Nissan audio components are supplied by four audio manufacturers. When ordering an exchange unit, it is important to properly identify the manufacturer and model number of the incident unit. This will insure that the exchange unit shipped from the radio manufacturer is the same brand and model as the incident unit.

ALL RADIO CORES SHOULD BE RETURNED TO THE MANUFACTURER IMMEDIATELY AFTER REMOVAL FROM THE CUSTOMER'S VEHICLE.

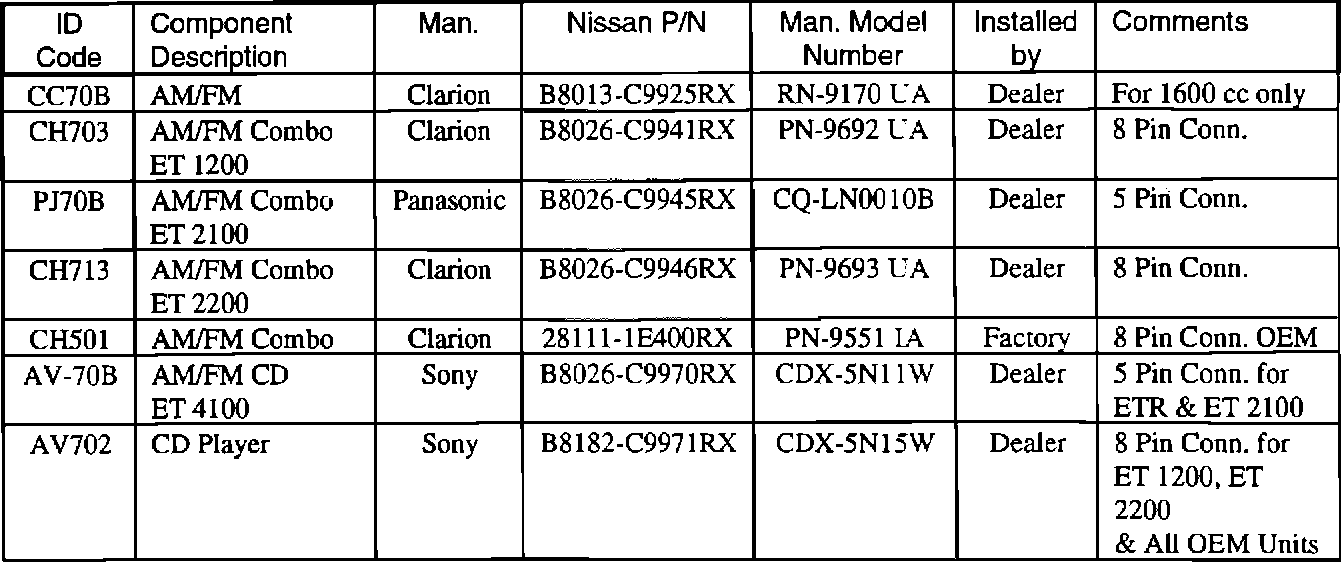

SENTRA





TRUCK

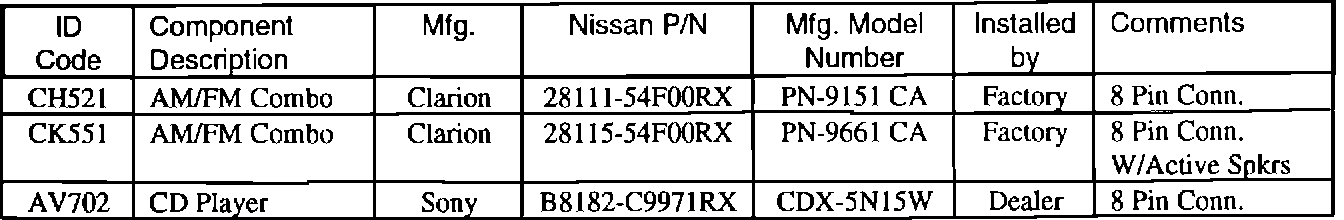

NX Coupe

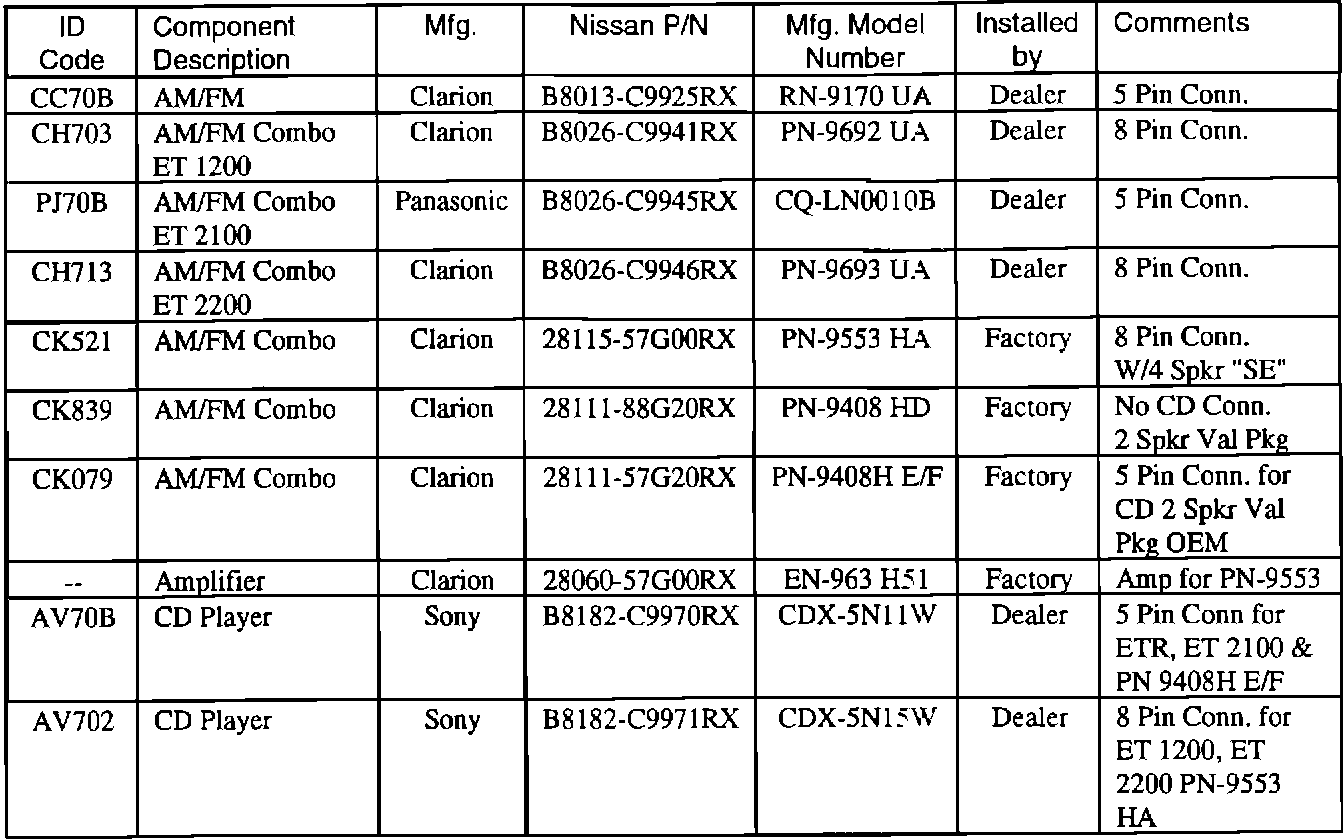

240SX

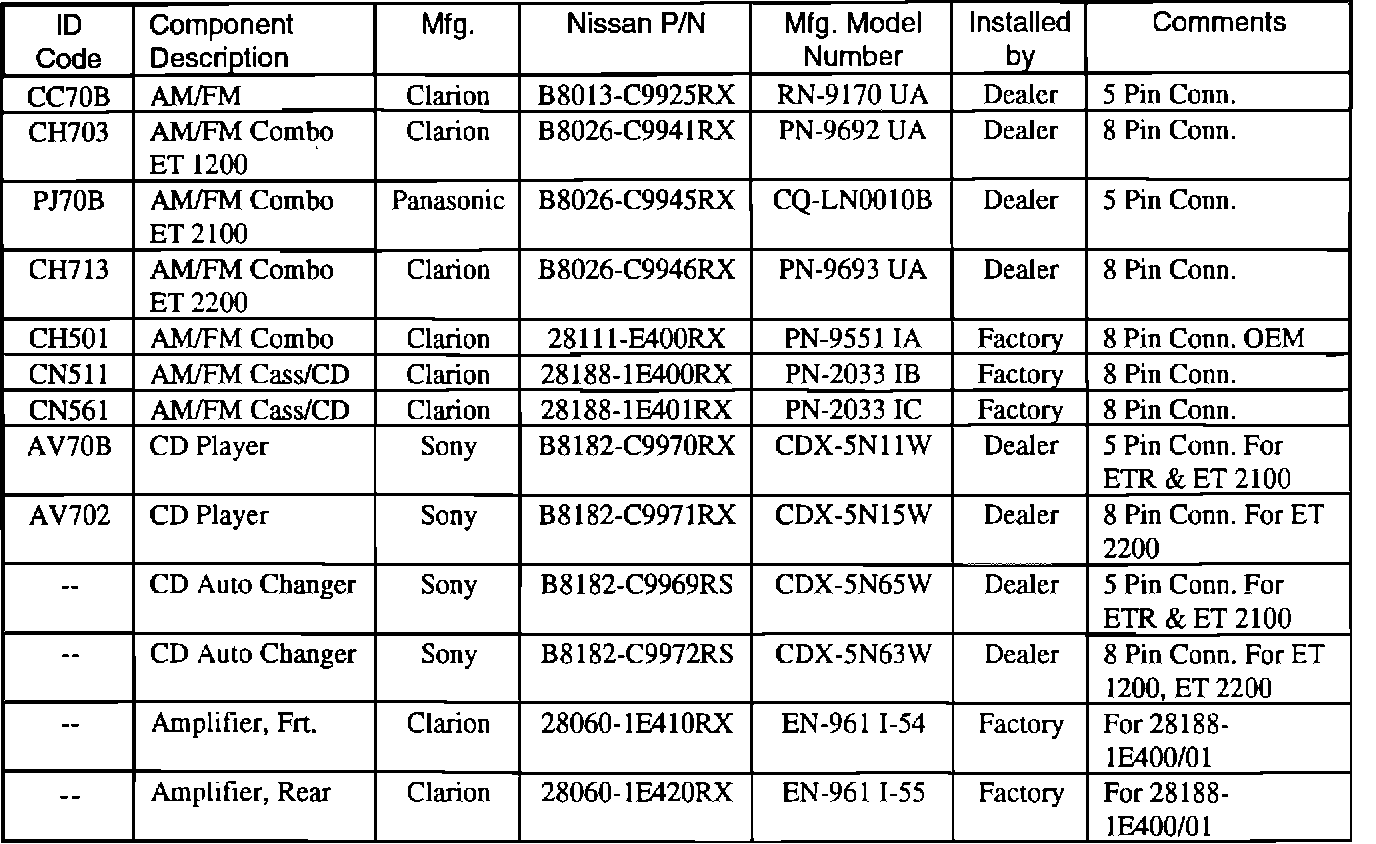

ALTIMA

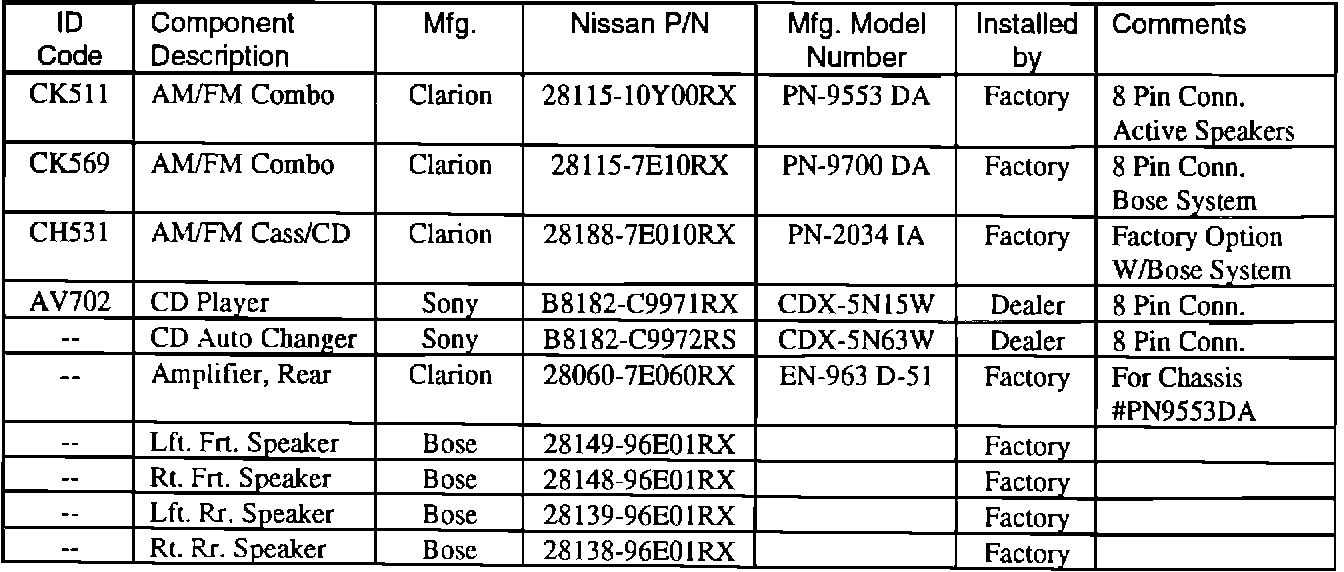

MAXIMA

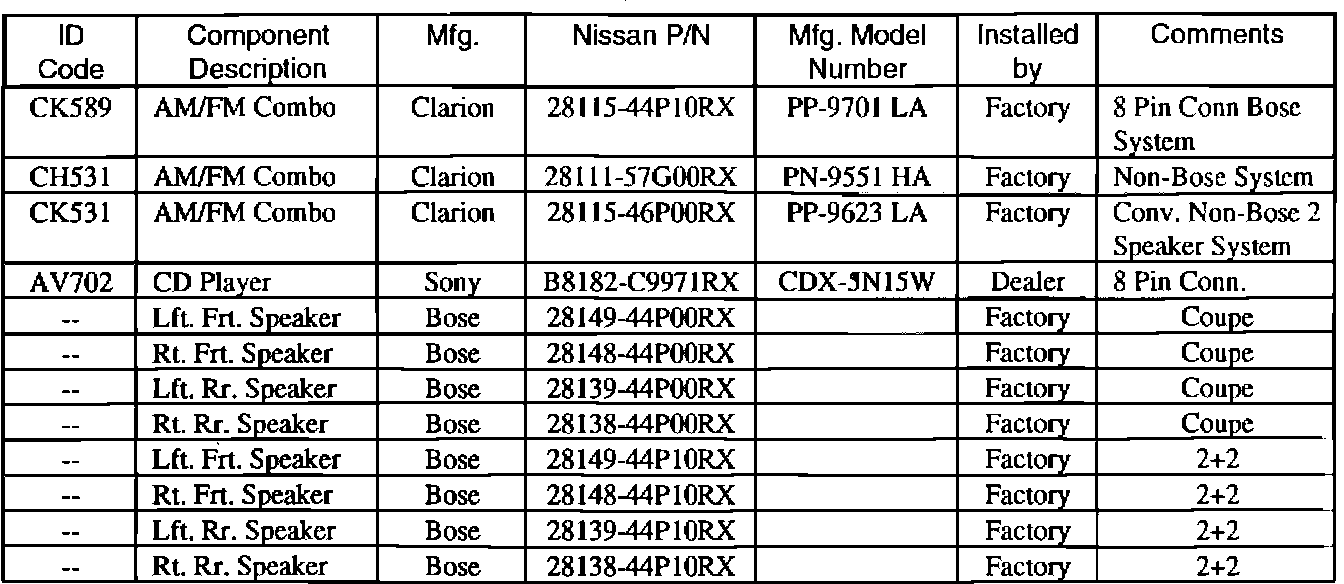

300ZX

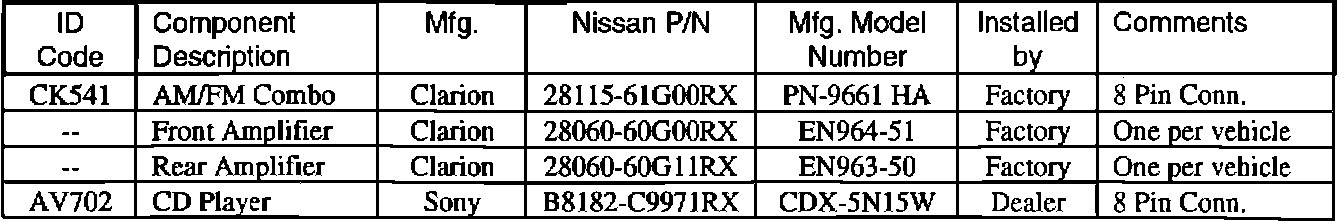

PATHFINDER

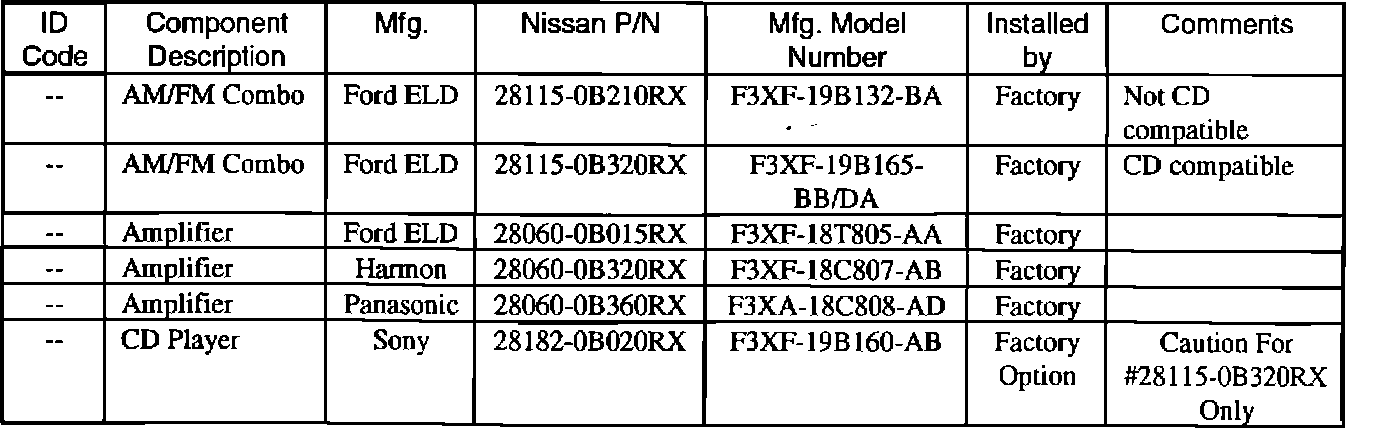

QUEST
