Emission Control Systems: Diagrams

Vacuum And Electrical System Diagram:





GENERAL SYSTEM SCHEMATIC

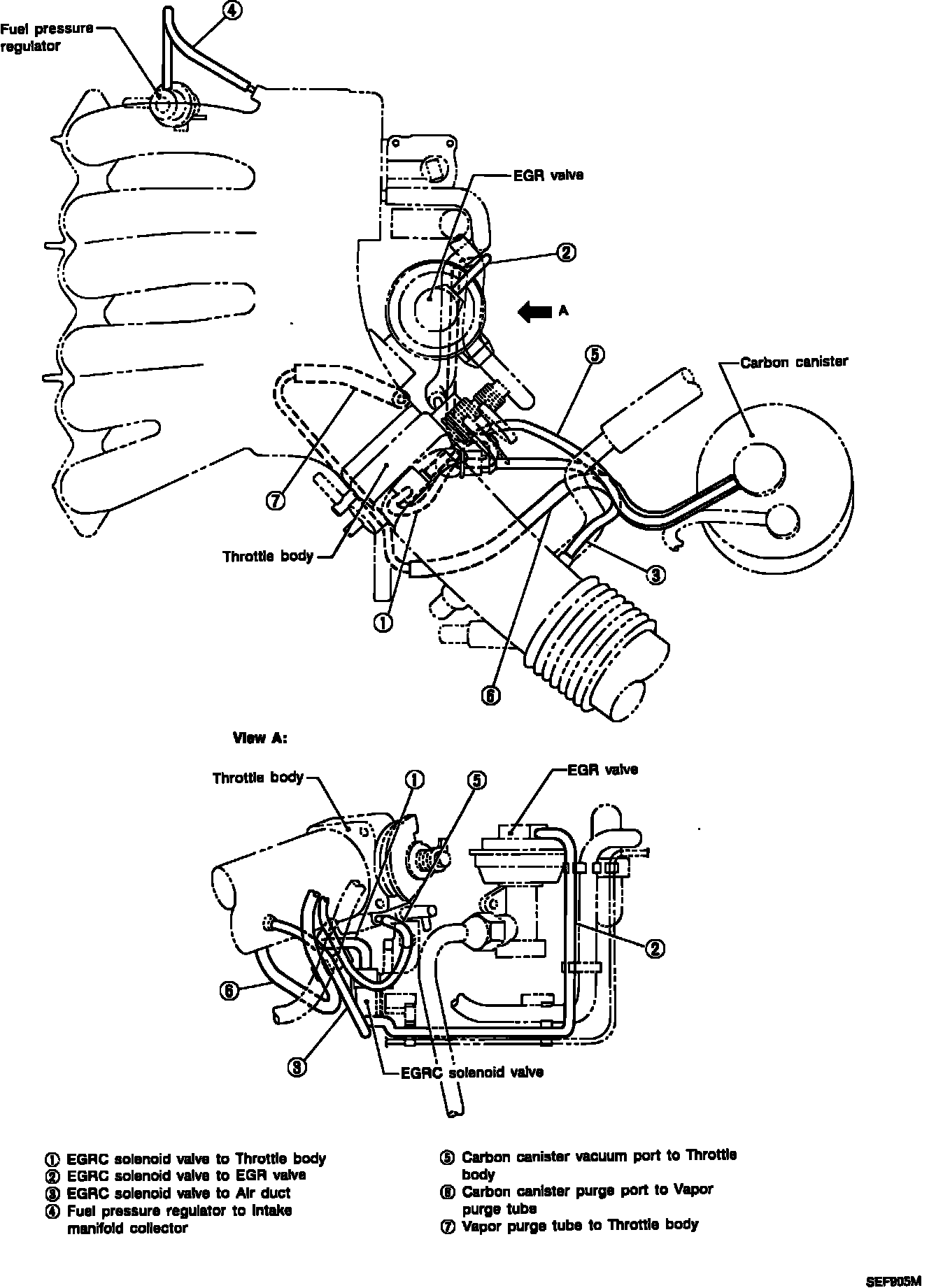

Vacuum Routing And Connections:





VACUUM FITTINGS AND CONNECTIONS
