Engine Control Module: Specifications

ECM Pin Expected Voltages:

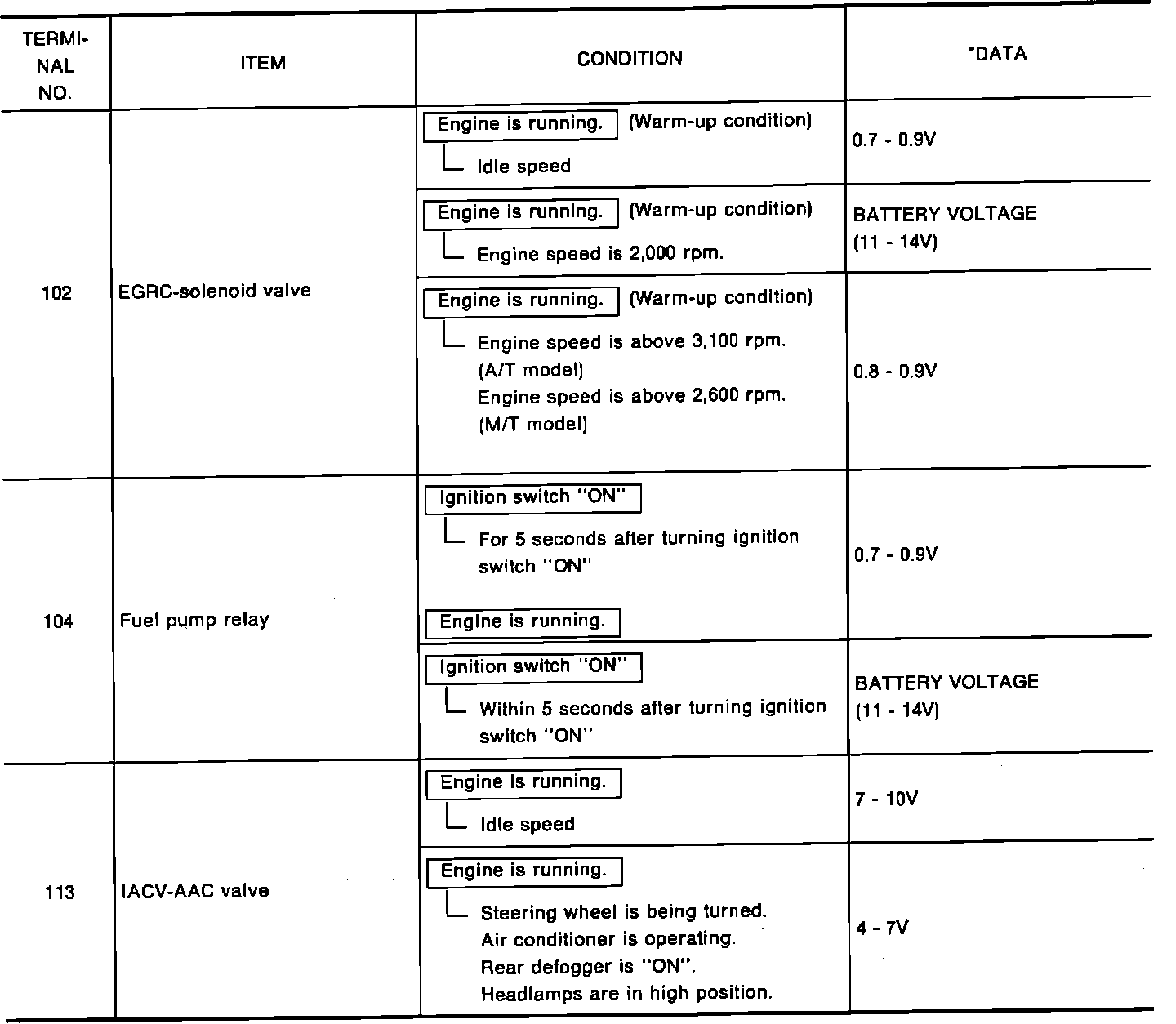

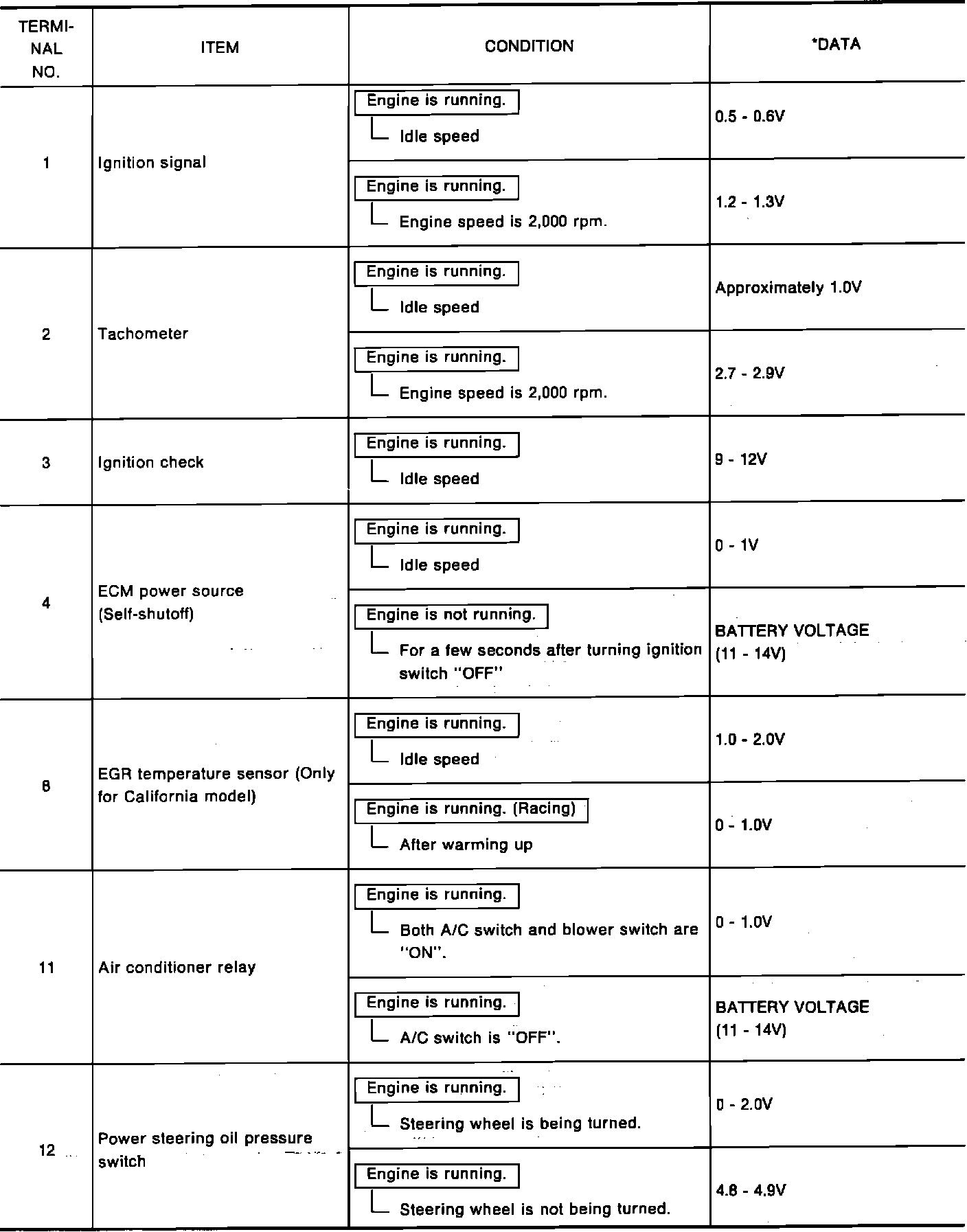

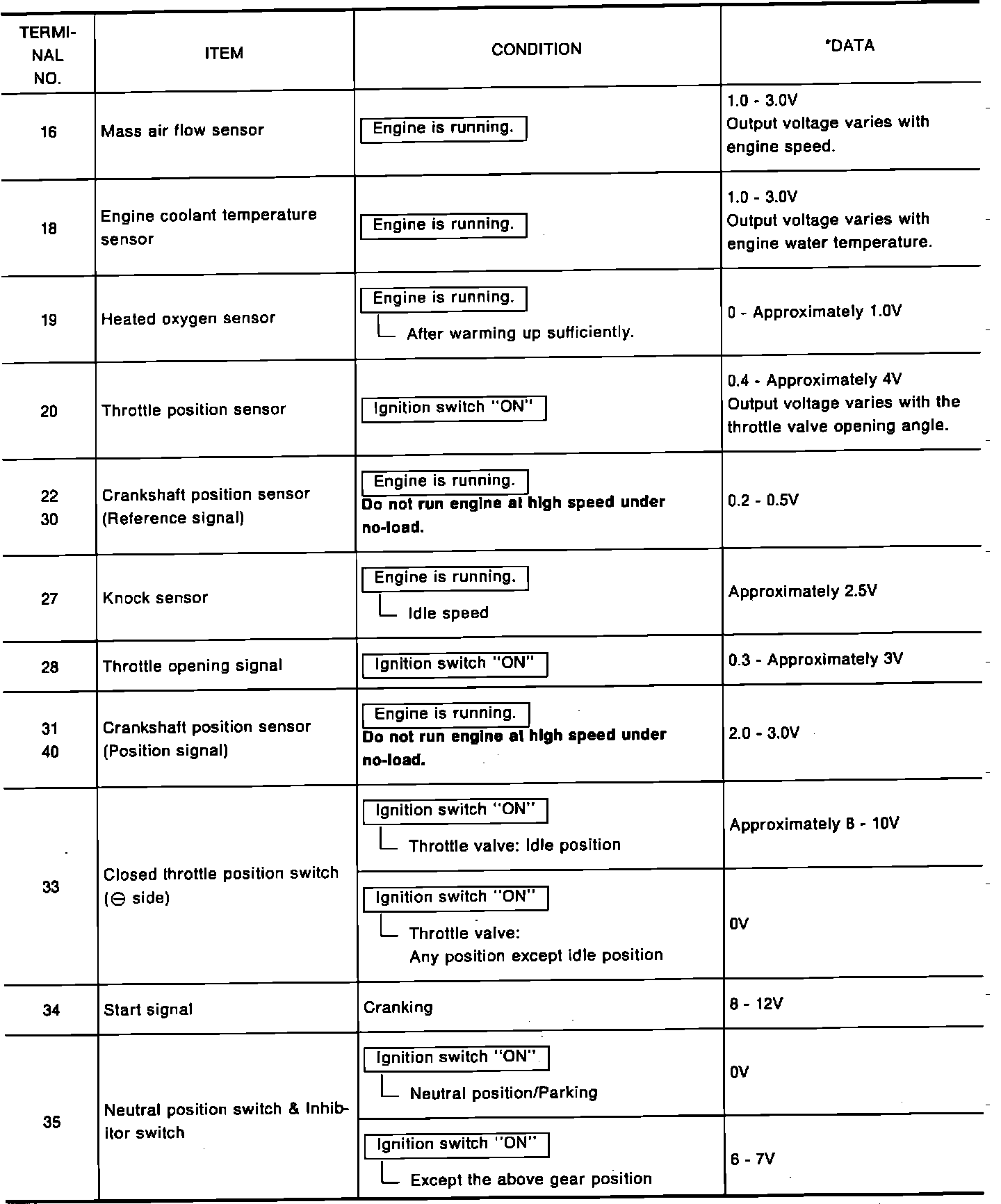

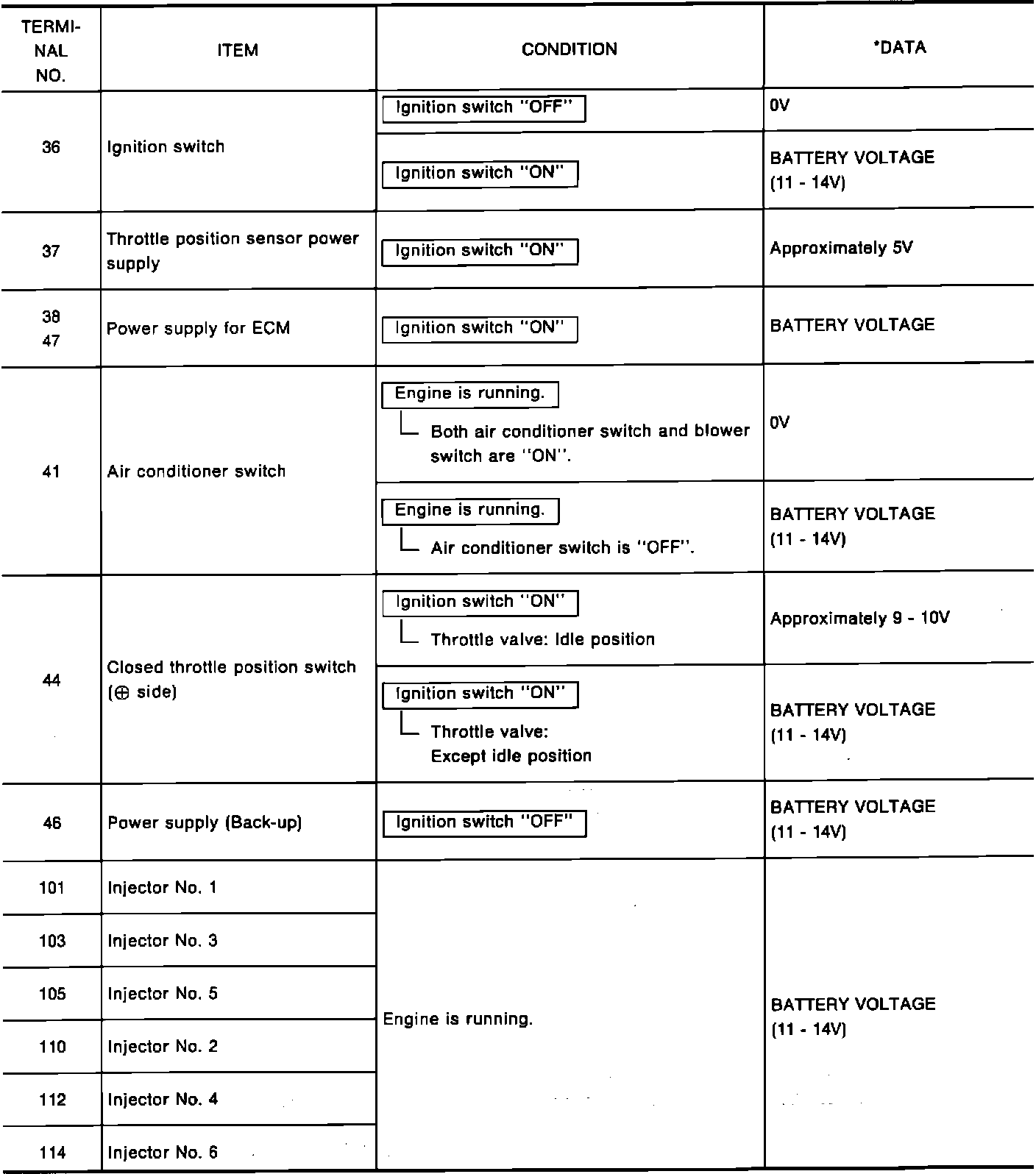

EXPECTED PIN VOLTAGES

ECM Pin ID:

ECM TERMINAL ID

NOTE: Testing of circuit voltages can be done at the ECM connector by CAREFULLY backprobing the connector. Use a high-quality digital DVOM.
