Home >> Nissan-Datsun >> 1993 >> D21 Hardbody 2WD V6-2960cc 3.0L SOHC MFI (VG30E) >> Repair and Diagnosis >> Locations >> Connector Locations >> M Connectors >> 201-M Thru 324-M: Main, Passenger Compartment >> Part 2 of 3

Part 2 of 3

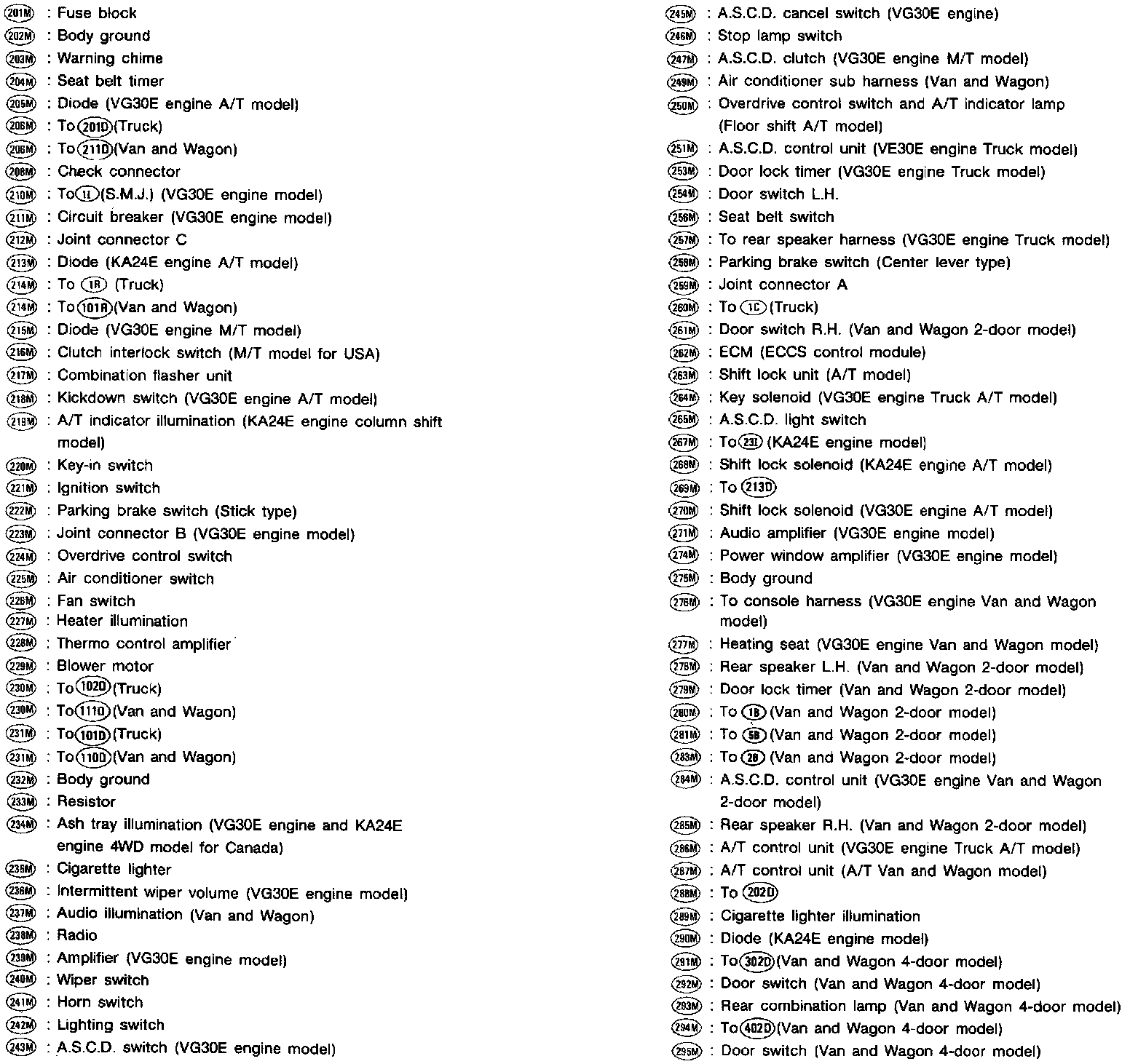

Harness Layout: Main Harness (Interior):
