A/C System Pressures Diagnosis

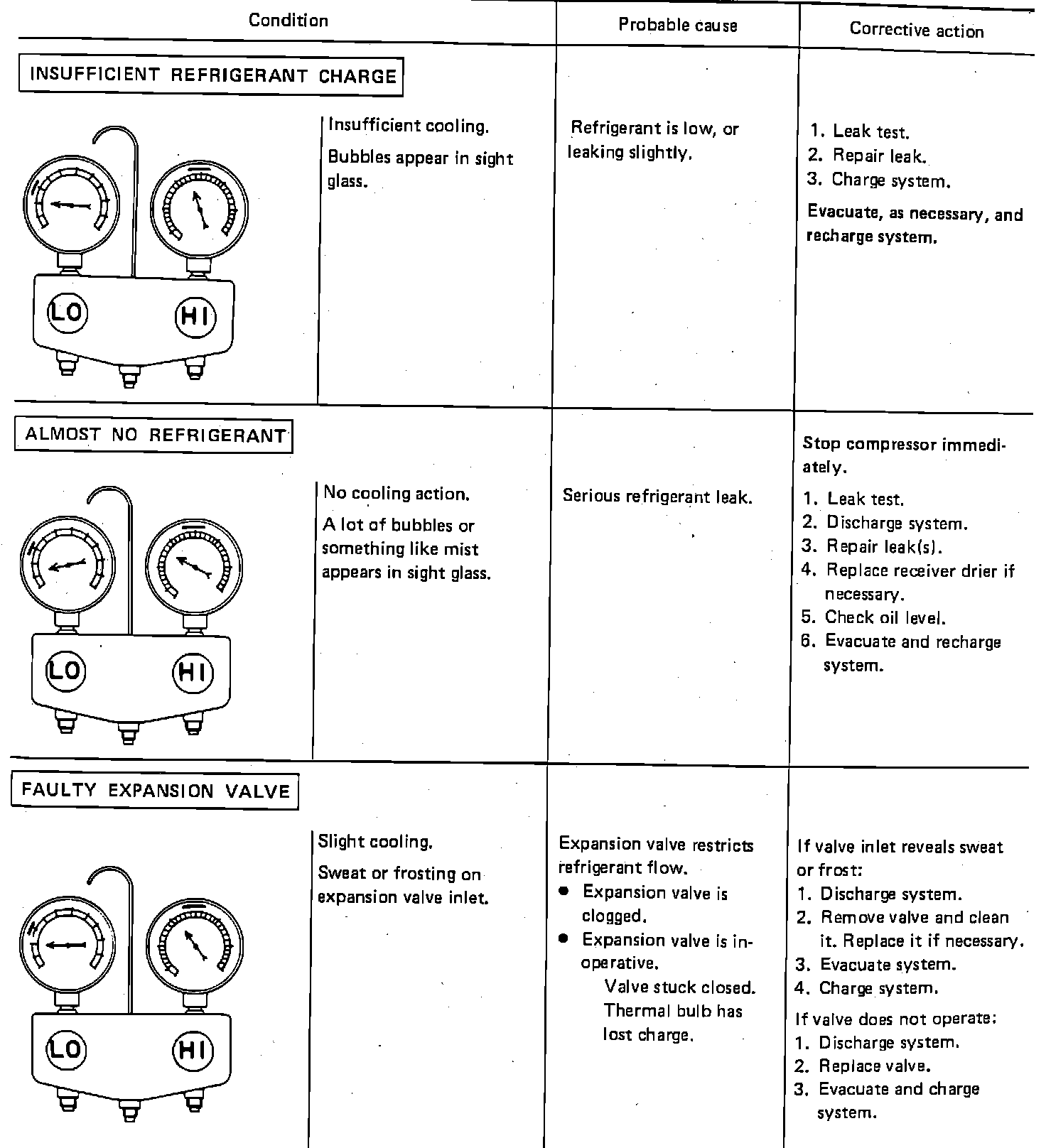

Fig. 5a Manual Heater & A/C diagnosis (part 1 of 3).:

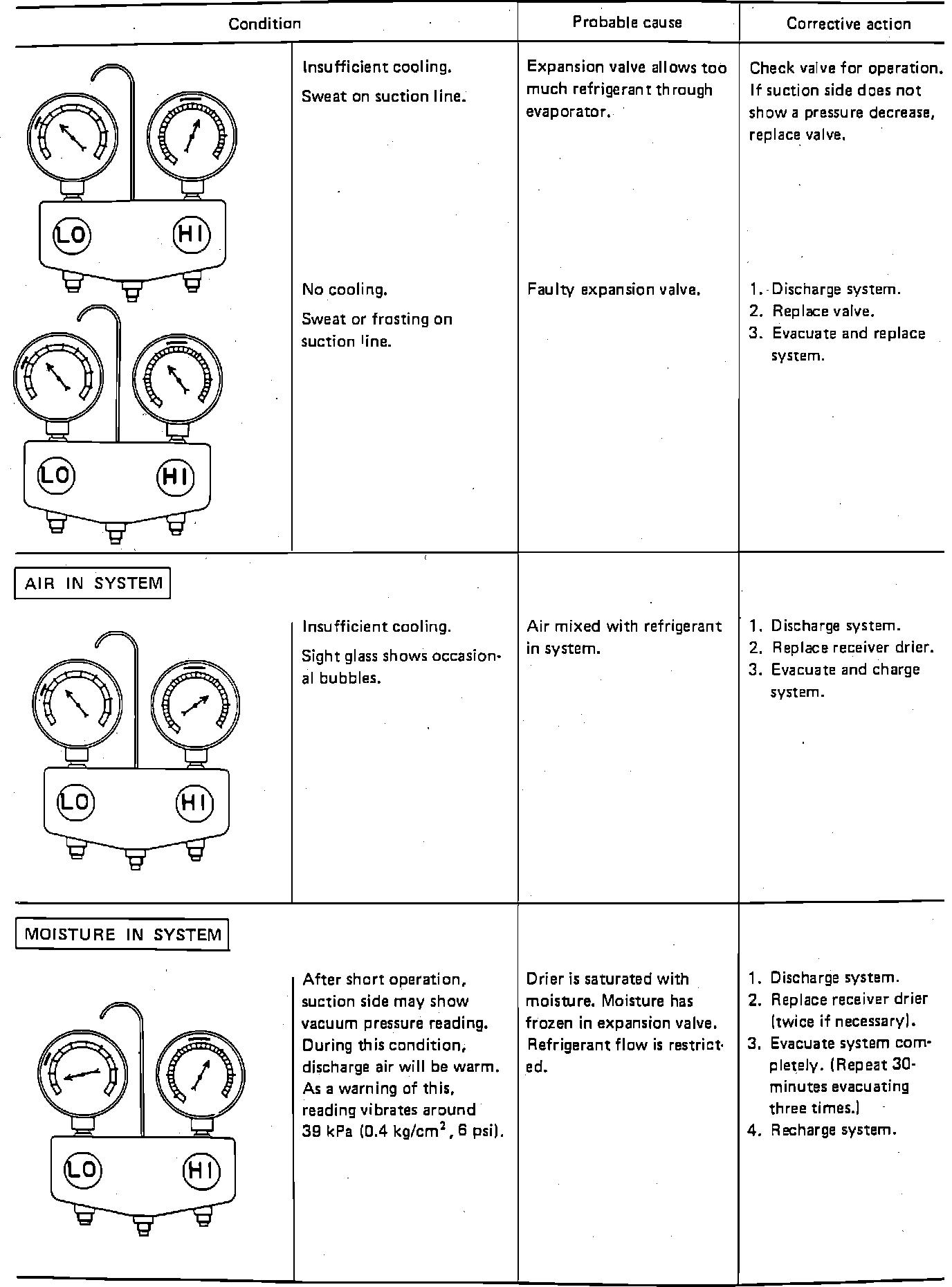

Fig. 5b Manual Heater & A/C diagnosis (part 2 of 3).:

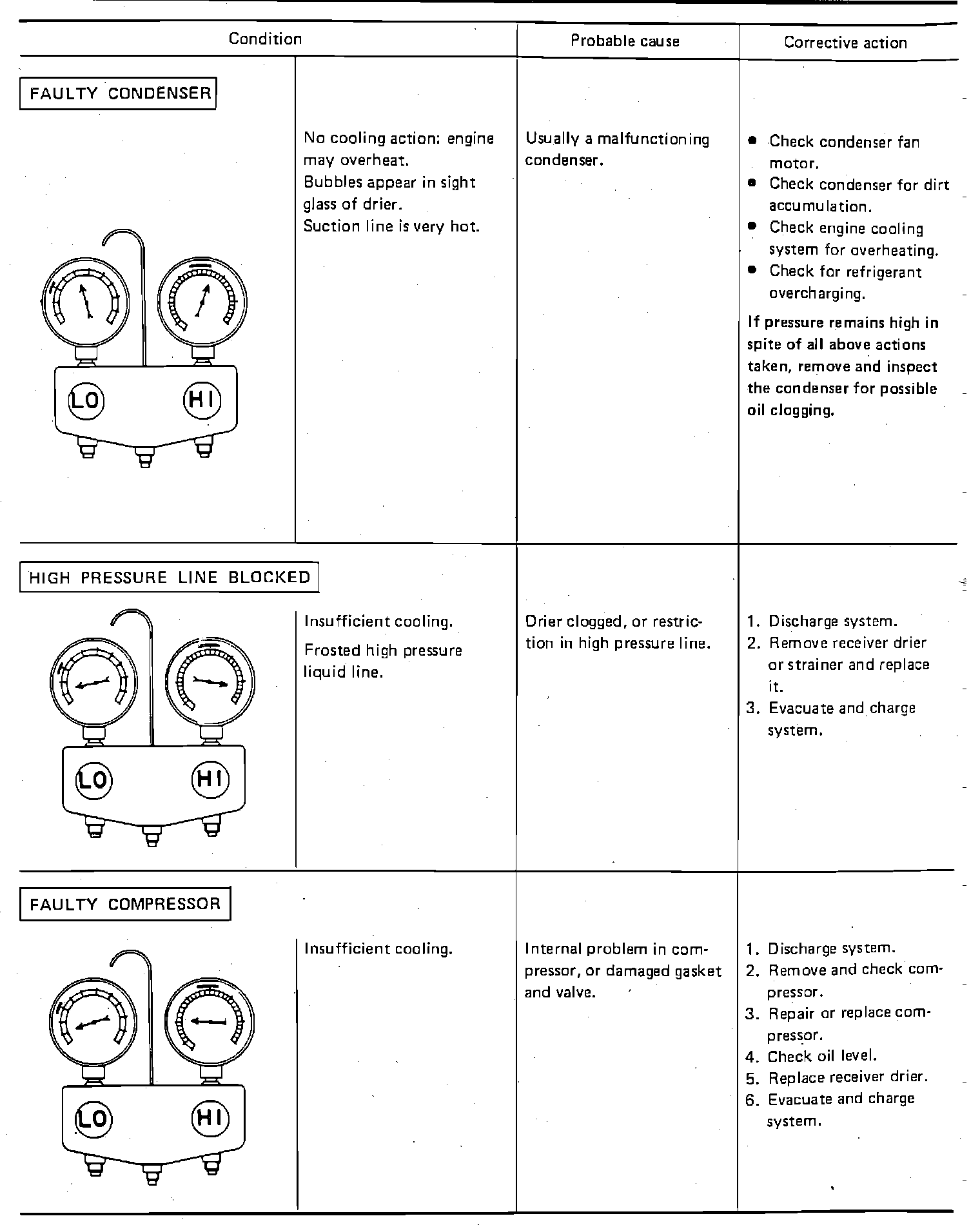

Fig. 5c Manual Heater & A/C diagnosis. (part 3 of 3):
