Blower Motor Resistor: Locations

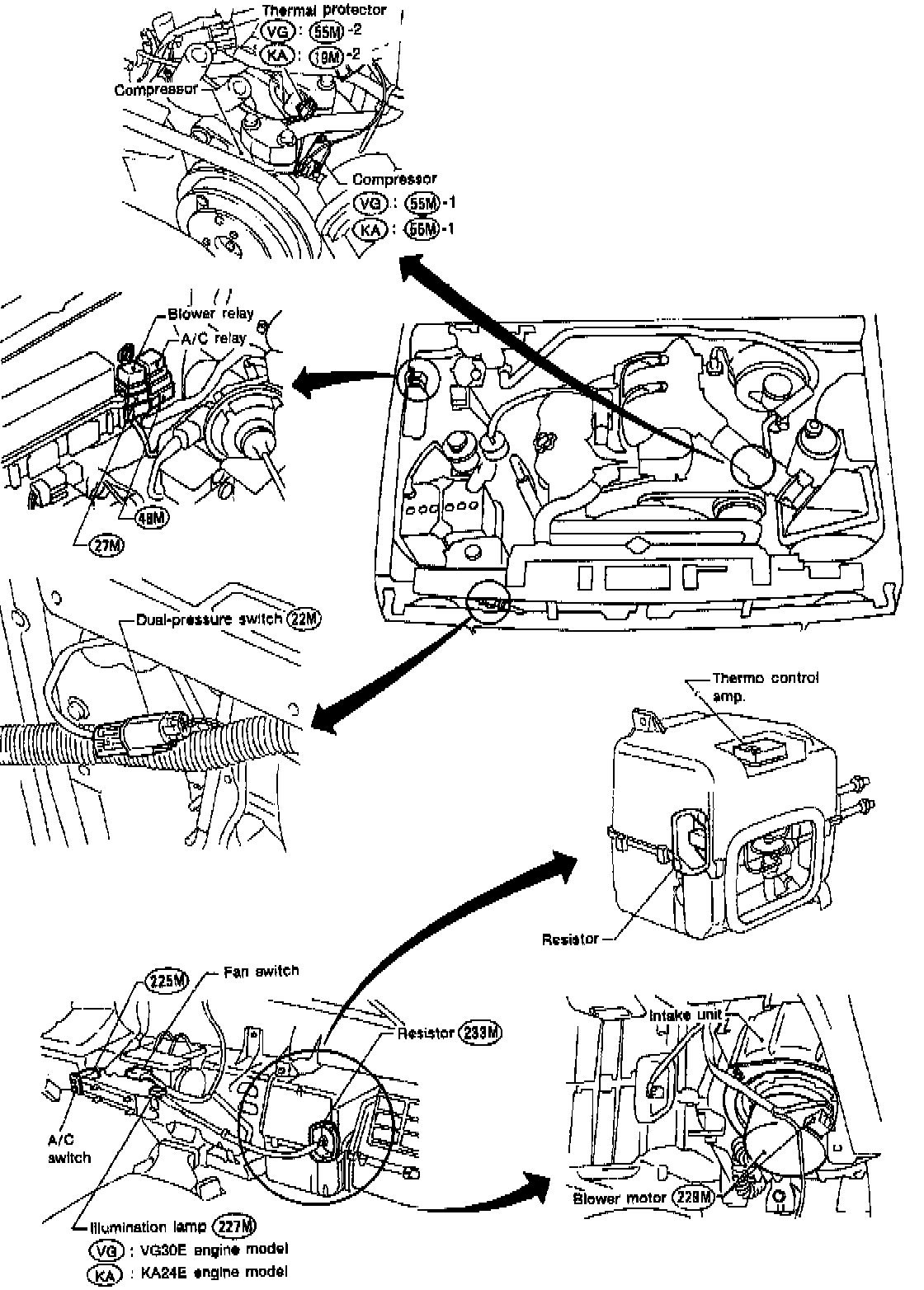

Component Locations (Manual Climate Control):





Auto Air Conditioner-Passenger Compartment:

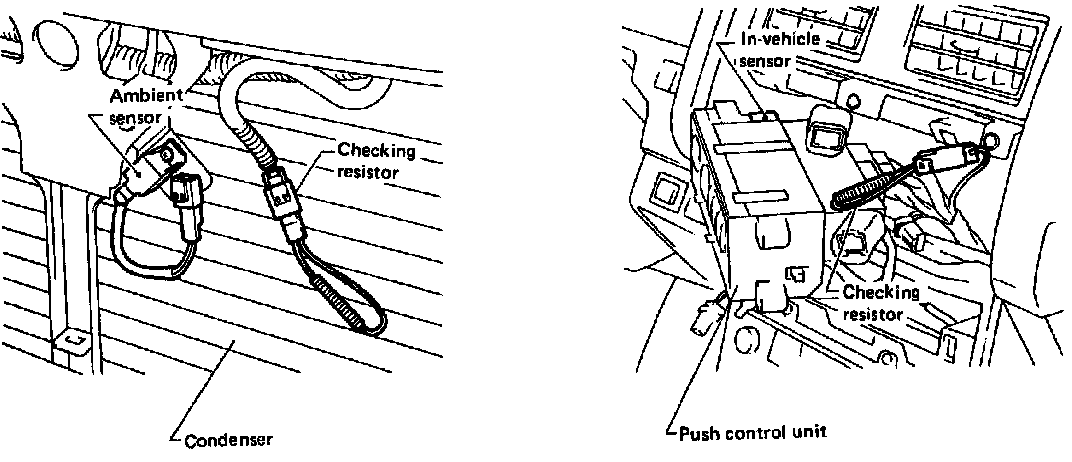

Resistor Locations - Auto A/C:
