Oil Pressure Sender: Testing and Inspection

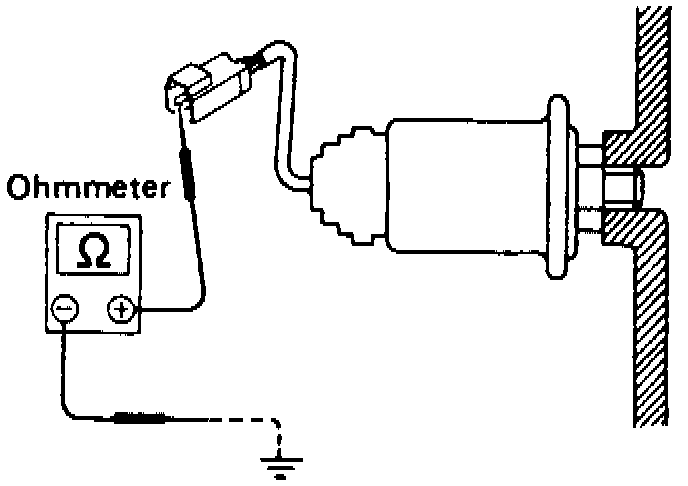

Fig. 48 Oil Pressure Switch Inspection:

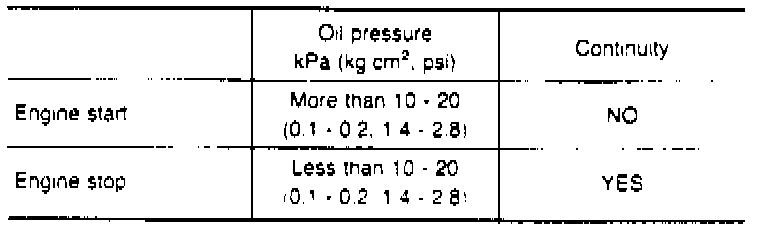

Fig. 49 Oil Pressure Switch Specifications:

Connect an ohmmeter as shown in Fig. 48, then compare results with Fig. 49.
