Home >> Nissan-Datsun >> 1993 >> D21 Hardbody 2WD V6-2960cc 3.0L SOHC MFI (VG30E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems >> Front Wiper and Washer >> Without Intermittent Wipers

Without Intermittent Wipers

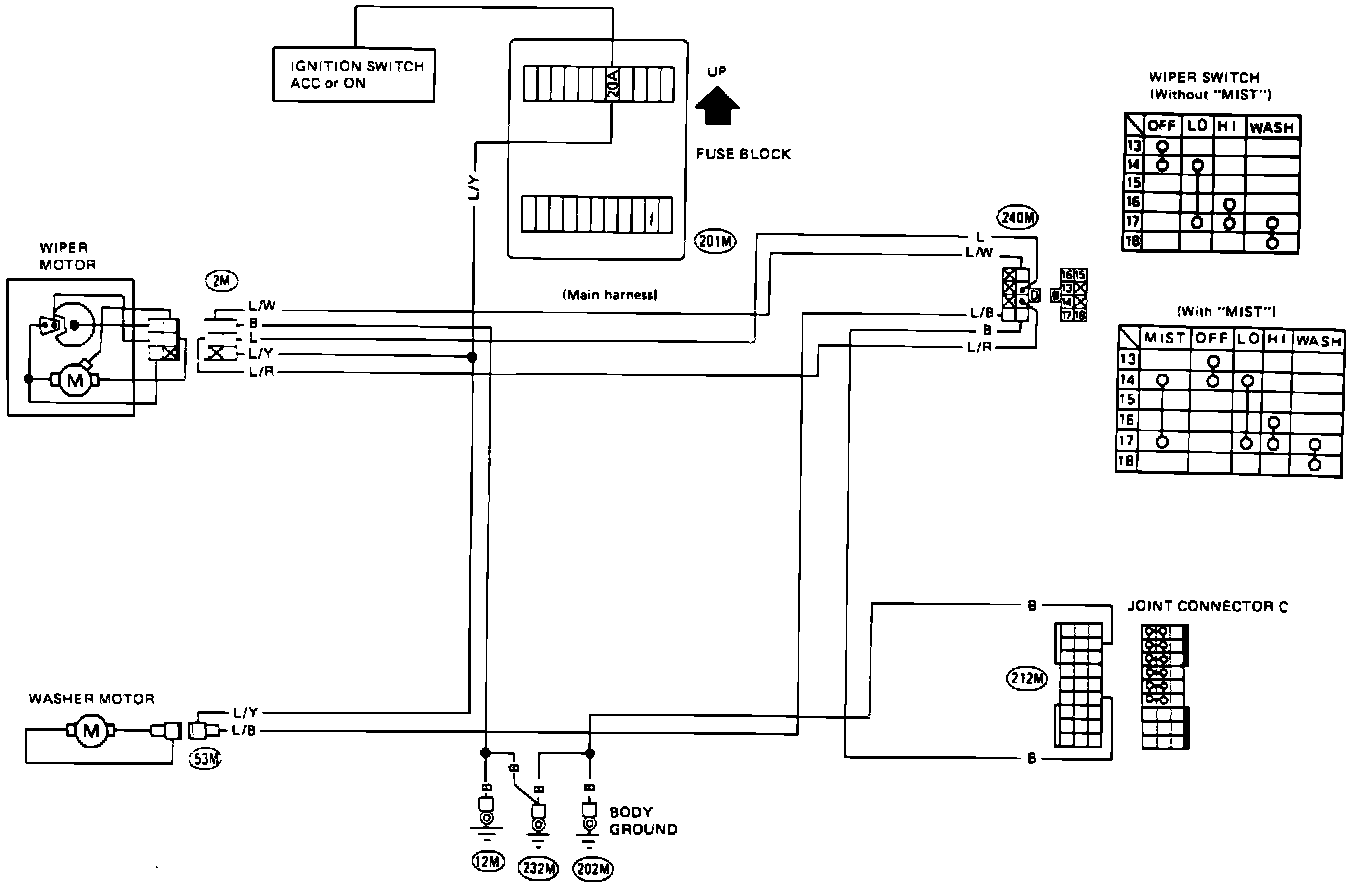

Front Wiper/Washer (Without Intermittent):
