Brakes - Updated ABS Control Unit Location

Classification:
BR93-004

Section:
Brake System

Reference:
TECHNICAL BULLETIN NTB93-098

Models:
1993 Truck/Pathfinder

Date:
June 10, 1993

ABS CONTROL UNIT LOCATION

APPLIED MODEL:
1993 Truck and Pathfinder

SERVICE INFORMATION

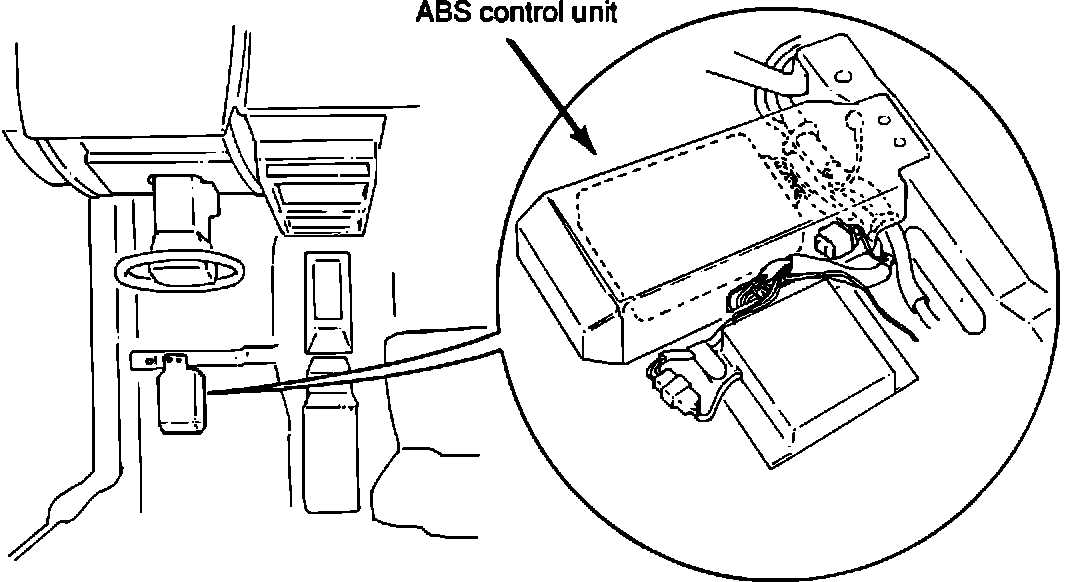

The location of the ABS control unit indicated on page BR-33 of the 1993 Truck Service Manual is incorrect. (It's also incorrectly shown on page BR-29 of the 1993 Truck/Pathfinder Service Manual, July, 1992 printing.) The control unit in both the Truck and Pathfinder is located under the driver's seat as shown in the illustration.
