Home >> Nissan-Datsun >> 1993 >> D21 Hardbody 2WD V6-2960cc 3.0L SOHC MFI (VG30E) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Dashboard / Instrument Panel >> Service and Repair

Dashboard / Instrument Panel: Service and Repair

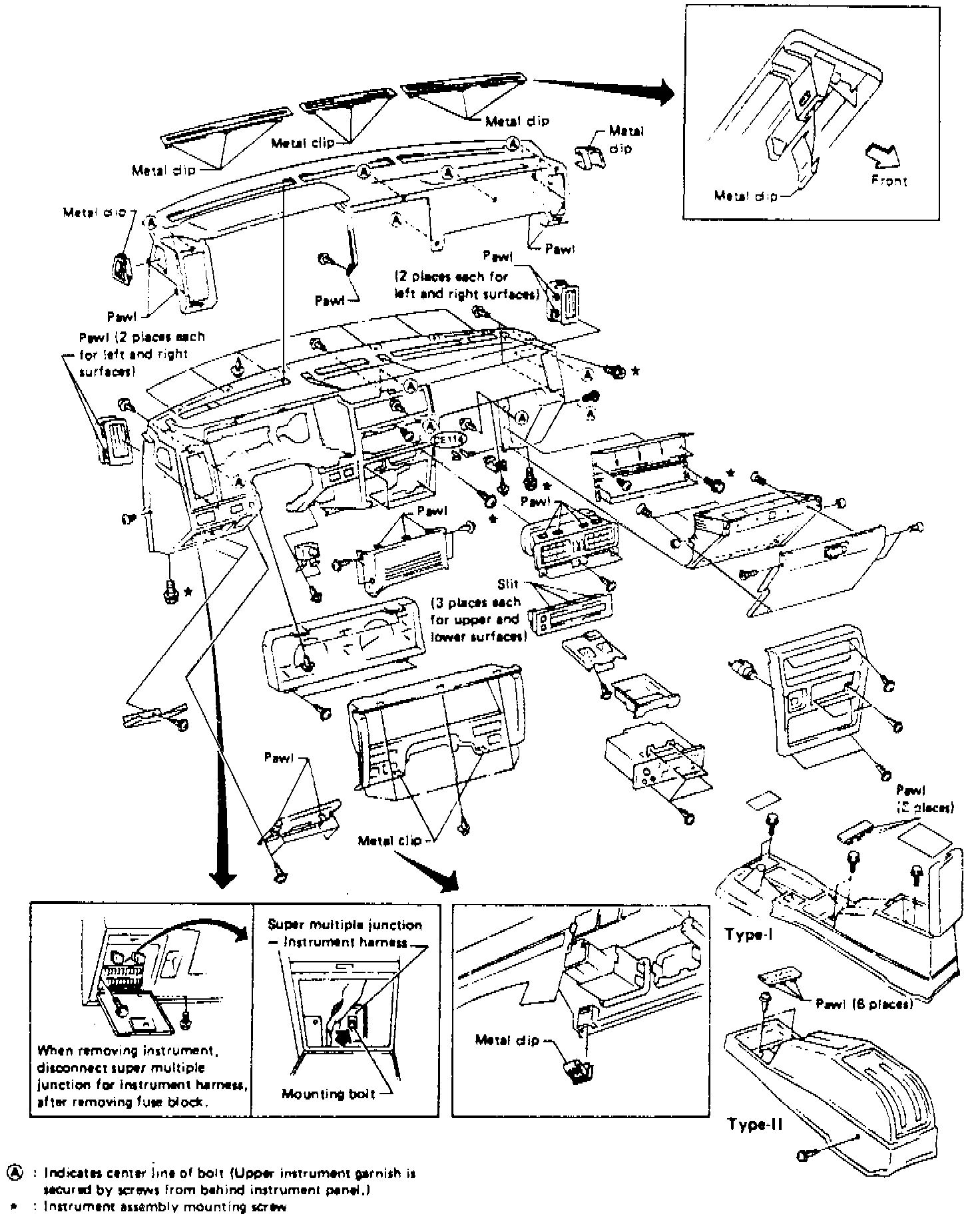

Fig. 6 Exploded View Of Instrument Panel:
