Mainshaft Front Bearing Outer Race and Oil Channel

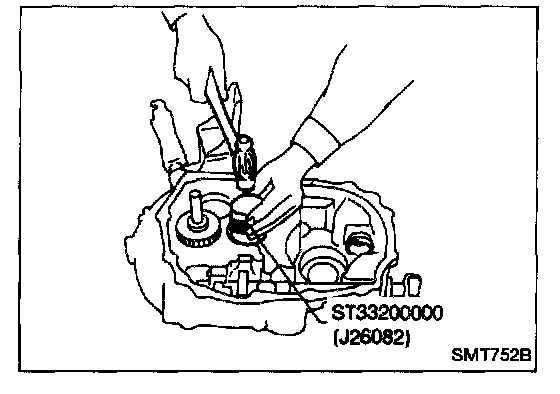

1. Remove mainshaft front bearing outer race.
2. Remove oil channel.




3. Install oil channel.

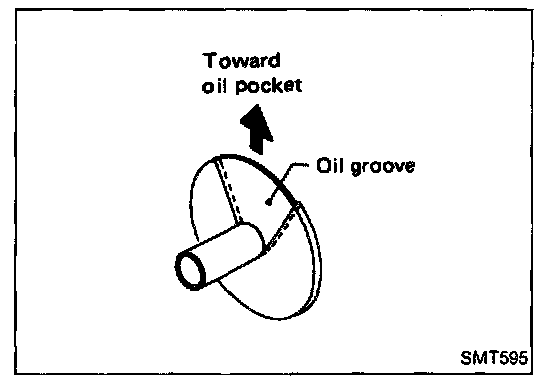

Note: Ensure that oil groove in oil channel always faces toward oil pocket when installing it on clutch housing.

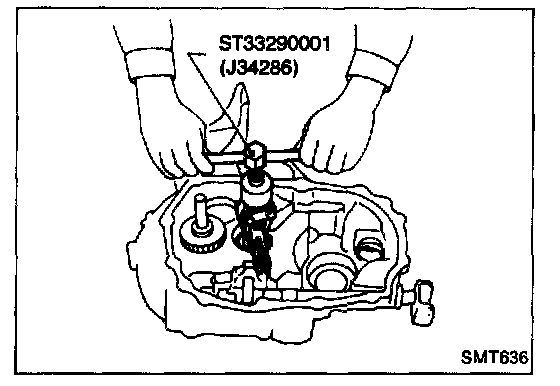

4. Install mainshaft front bearing outer race.

Mainshaft rear bearing outer race. Adjustment

Differential side bearing outer race. Adjustment
