Differential Oil Seal

1. Drain gear oil from transaxle.
2. Remove drive shafts.

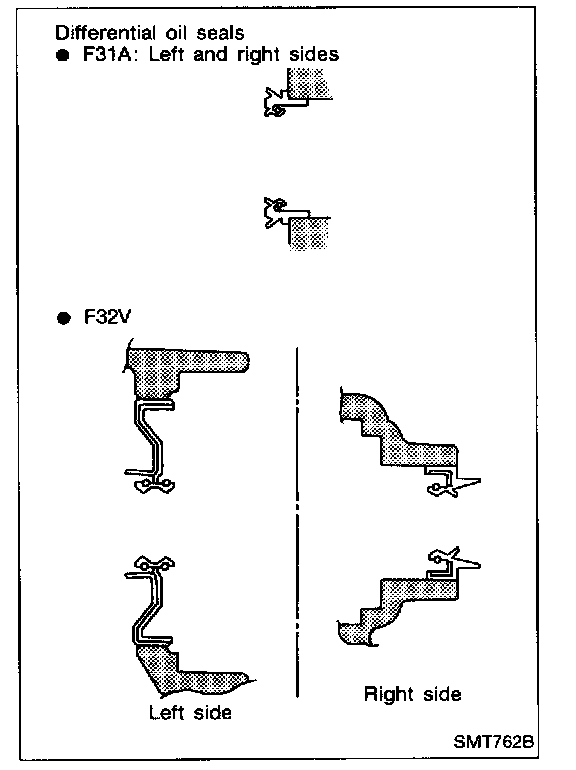

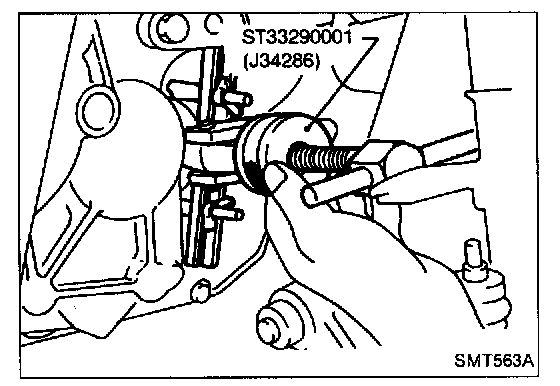

3. Remove differential oil seal.

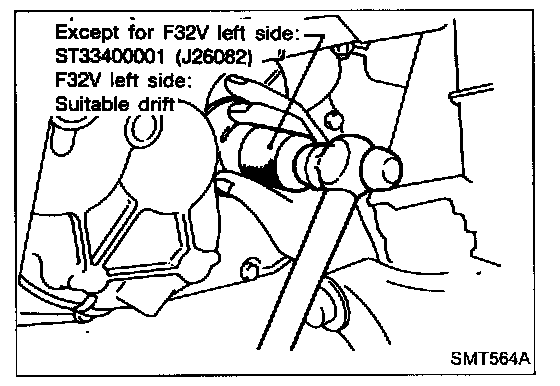

4. Install differential oil seal.

Note: Apply multi-purpose grease to seal lip of oil seal before installing.

5. Install drive shafts.
