A/T - Forward Sprag Rotation

Date: 1996

Technical Bulletin # 348

^ Transmission:
RL4F03A/V, RE4F03A/V, RE4F04A/V, 4F20E

^ Subject:
Forward sprag rotation

^ Application:
Nissan, Infiniti, Ford

RL4FO3A/V, RE4FO3A/V, RE4F04A/V, 4F20E

Forward Sprag Rotation

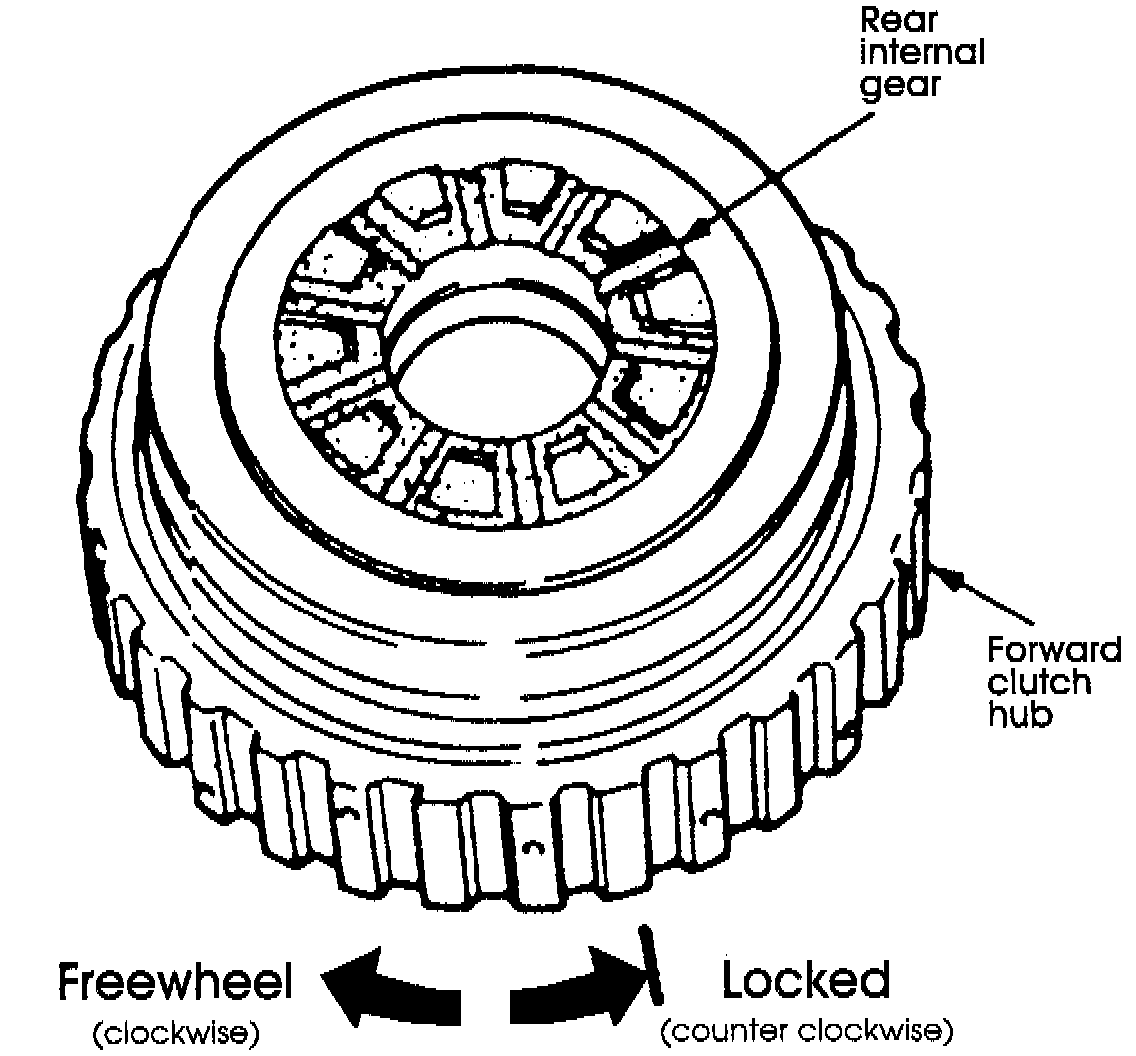

Some manuals may be misleading when describing proper forward sprag rotation. When properly assembled, the forward clutch hub should freewheel clockwise and lock counter clockwise with the rear internal gear held stationary.
