Shift Lock Control Unit Inspection

SHIFT LOCK CONTROL UNIT INSPECTION

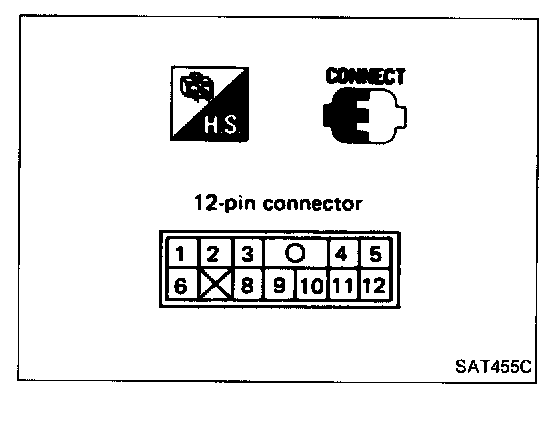

Pin connector terminal layout:

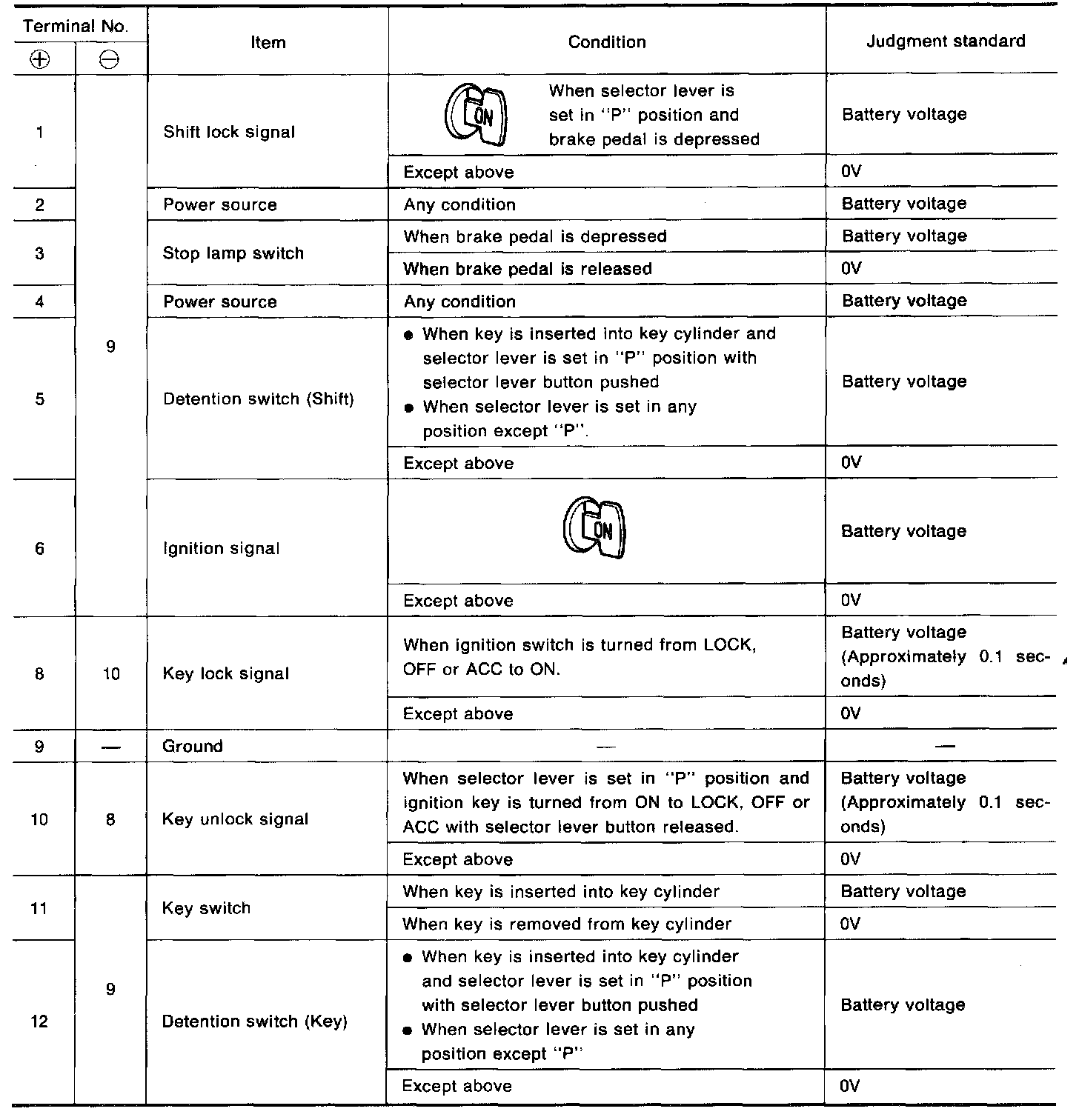

Shift Lock Control Unit Inspection Table (Data Are Reference Values.):




- Measure voltage between each terminal by "SHIFT LOCK CONTROL UNIT INSPECTION TABLE".
