Key Lock Solenoid

Key lock solenoid

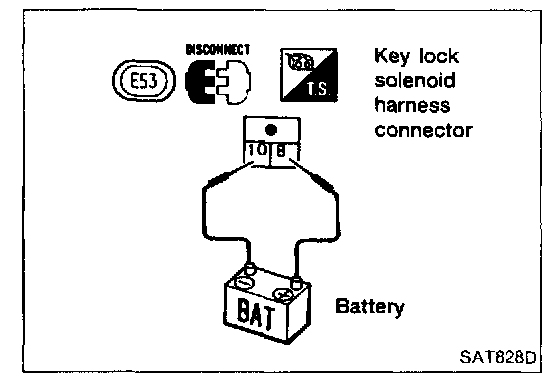

- Operation Of Locking Mechanism



- Check operation by applying battery voltage to key lock solenoid harness connector.
Operating sound must be emitted.

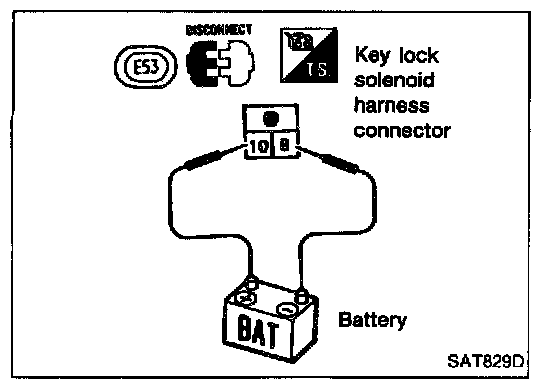

- Operation Of Unlocking Mechanism



- Check operation by applying battery voltage to key lock solenoid harness connector.
Operating sound must be emitted.
