Planetary Carrier

PLANETARY CARRIER

INSPECTION

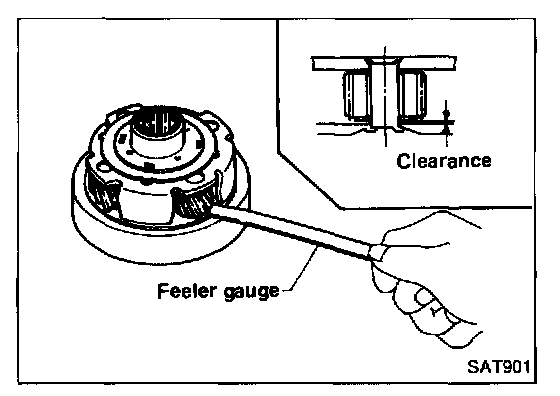

- Check clearance between pinion washer and planetary carrier with a feeler gauge.

Standard clearance: 0.20 - 0.10 mm (0.0079 - 0.0276 in.)
Replace if the clearance exceeds 0.80 mm (0.0315 in.).

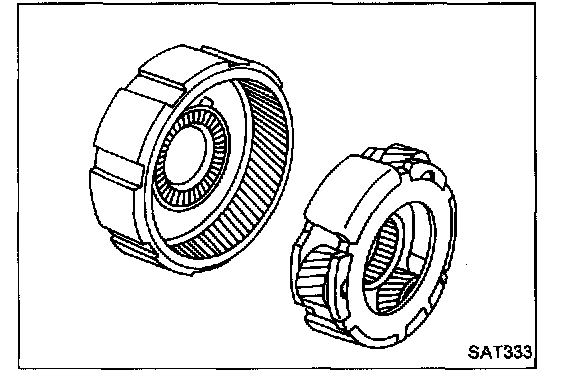

- Check planetary gear sets and bearings for damaged or worn gears.
