Low & Reverse Brake

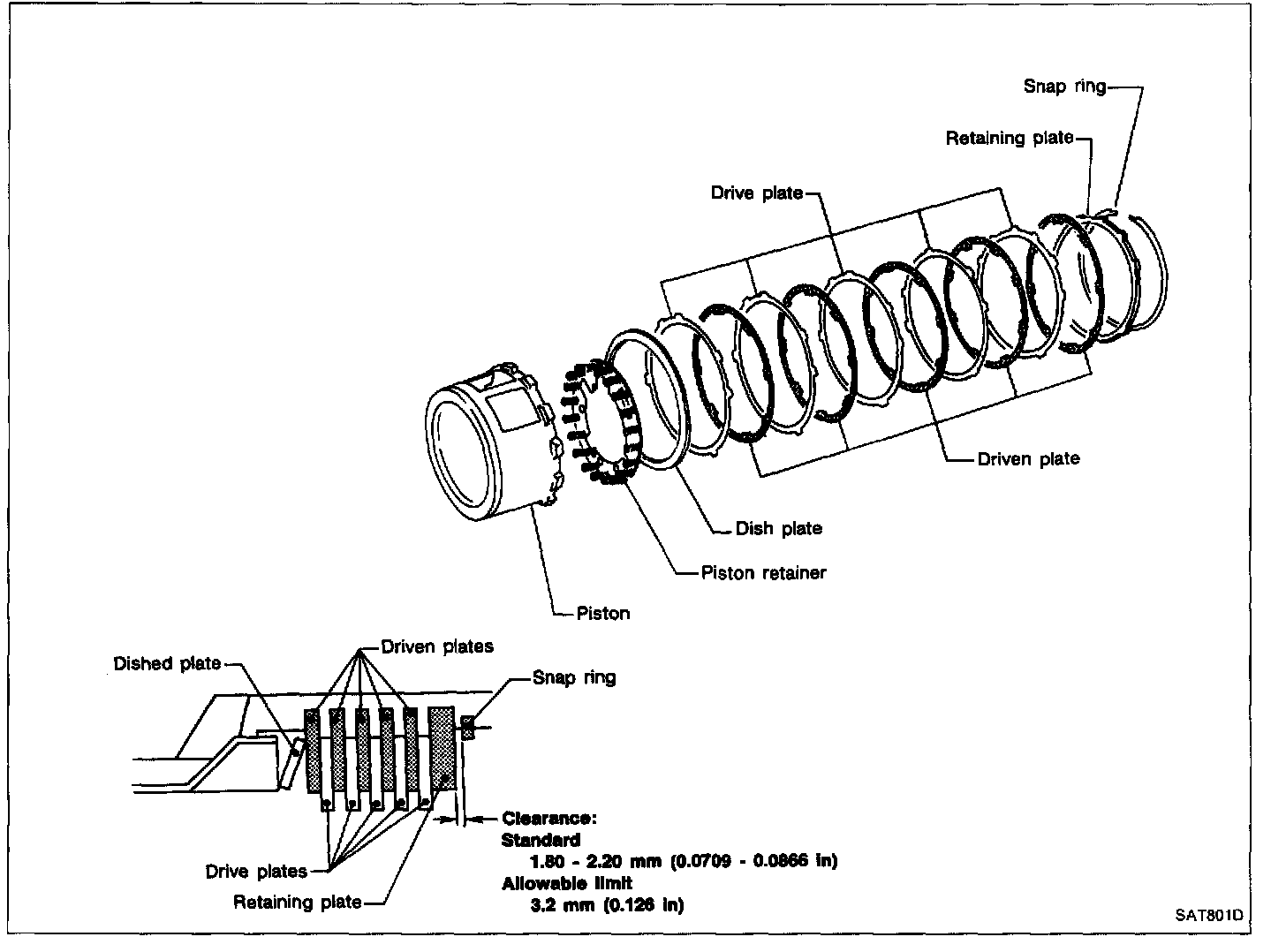

LOW & REVERSE BRAKEINSPECTION
- Examine low and reverse brake for damaged clutch drive plate facing and worn snap ring.
- Check drive plate facing for wear or damage; if necessary, replace.
Drive plate thickness:
Standard: 1.90 - 2.05 mm (0.0748 - 0.0807 in.)
Allowable limit: 1.7 mm (0.067 in.)
