Engine Speed Governor

GOVERNOR

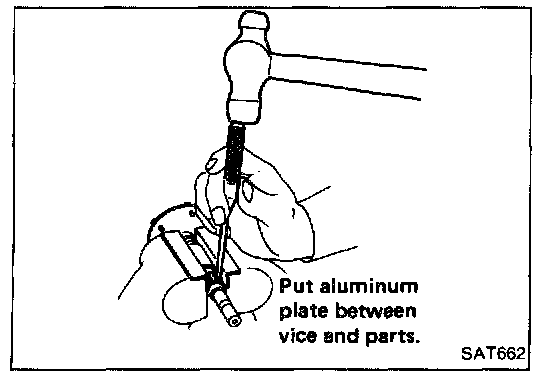

- Remove governor worm.

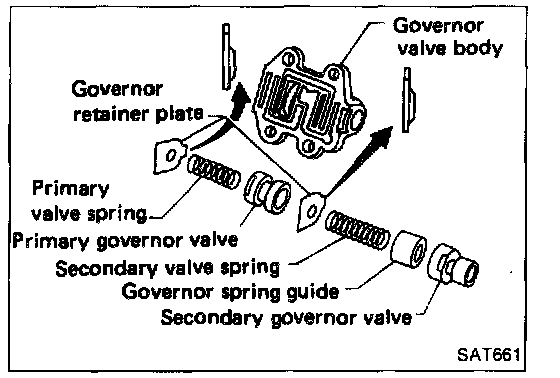

- Disassemble governor and check governor valves and valve body for indication of burning or scratches.
- Check valve springs for damage.

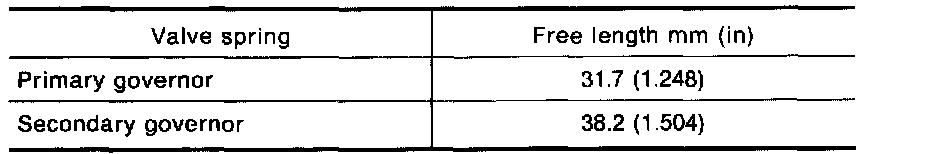

Measure free length of valve springs.
If any abnormalities are found, replace governor body, valves and springs as an assembly.
