Bearing Retainer

BEARING RETAINER

DISASSEMBLY




1. Remove bearing retainer from transmission case.
2. Remove inner cone.

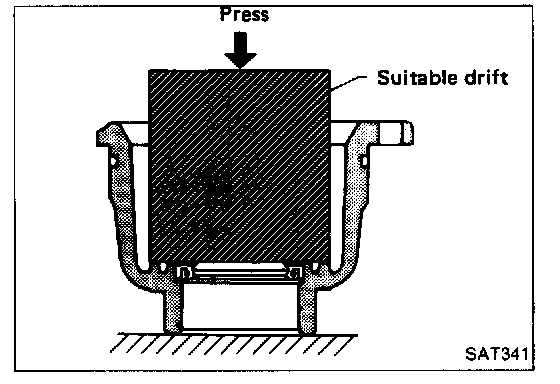

3. Remove oil seal and O-ring.

ASSEMBLY

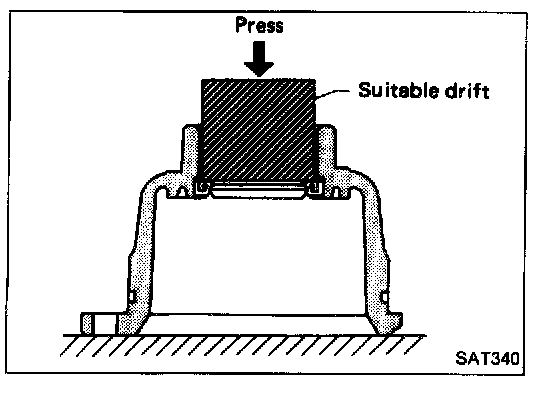

1. Apply A.T.F. to seal surface and O-ring, then drive new seal and O-ring into place.

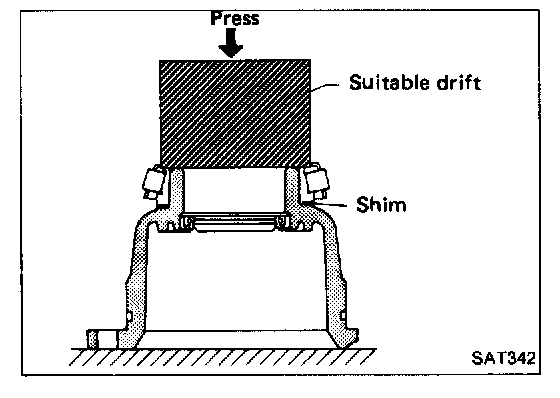

2. Install inner cone with shim.
