Governor Valve
GOVERNOR VALVE
1. Remove air duct.
2. Remove governor cap snap ring and spacer.

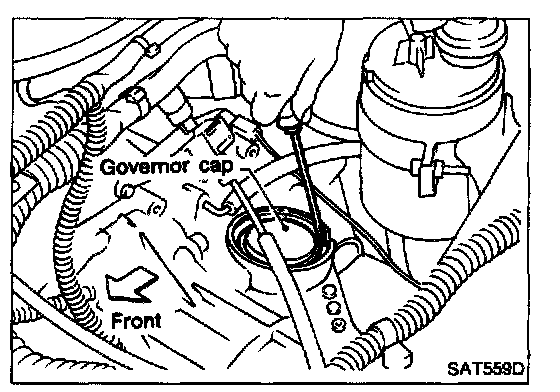

3. Remove governor cap.

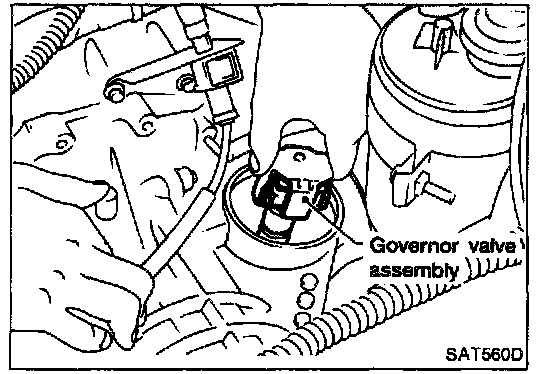

4. Remove governor valve assembly from transaxle.
5. Check governor valve assembly if necessary - Refer to "DISASSEMBLY".
1. Remove air duct.
2. Remove governor cap snap ring and spacer.
3. Remove governor cap.
4. Remove governor valve assembly from transaxle.
5. Check governor valve assembly if necessary - Refer to "DISASSEMBLY".
