Governor Valve
GOVERNOR VALVE

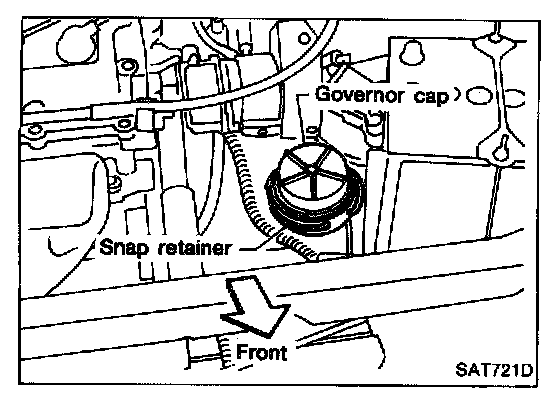

1. Remove governor cap snap retainer and governor cap.

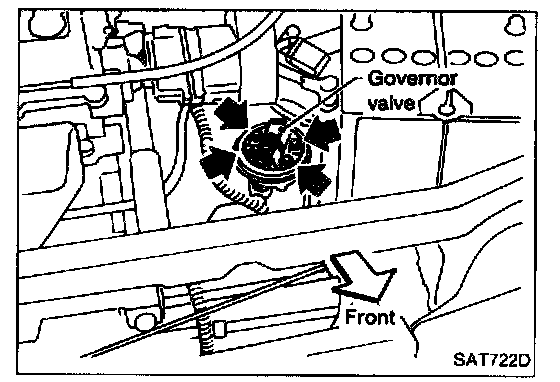

2. Remove governor valve assembly from governor shaft.
3. Check governor valve assembly if necessary - Refer to "REPAIR FOR COMPONENT PARTS".
1. Remove governor cap snap retainer and governor cap.
2. Remove governor valve assembly from governor shaft.
3. Check governor valve assembly if necessary - Refer to "REPAIR FOR COMPONENT PARTS".
