Differential Side Oil Seal Replacement

DIFFERENTIAL SIDE OIL SEAL REPLACEMENT




1. Remove drive shafts

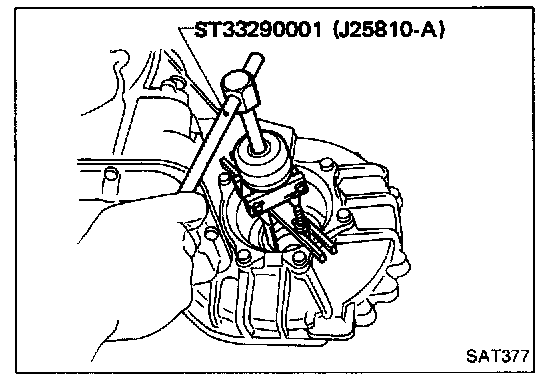

2. Remove oil seals.

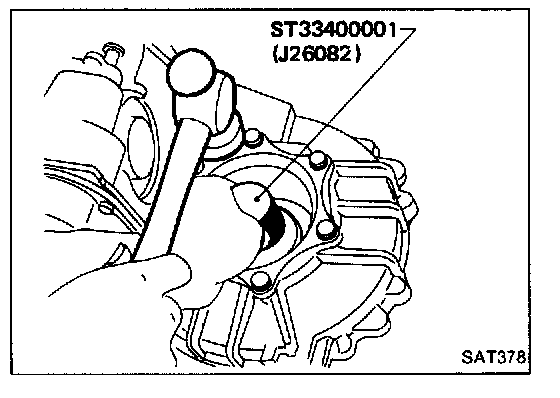

3. Install oil seals.
- Apply A.T.F. to oil seal surface.

4. Install drive shafts.
- Be extremely careful not to scratch oil seal when inserting drive shafts.
