On-Vehicle Service RL4F03A and F03V

DIFFERENTIAL SIDE OIL SEAL REPLACEMENT
1. Remove drive shaft assemblies.

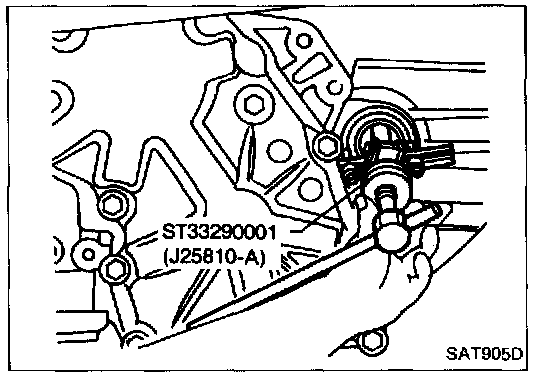

2. Remove oil seals.

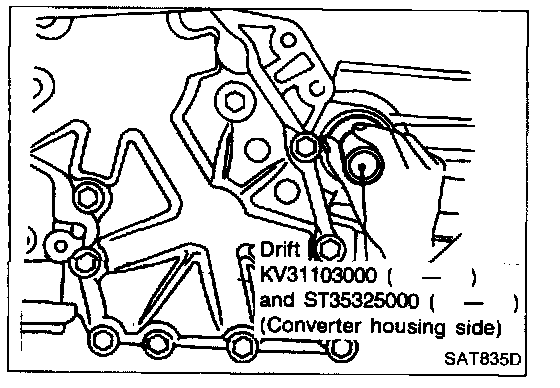

3. Install oil seals.
- Apply A.T.F. to oil seal surface before installing.

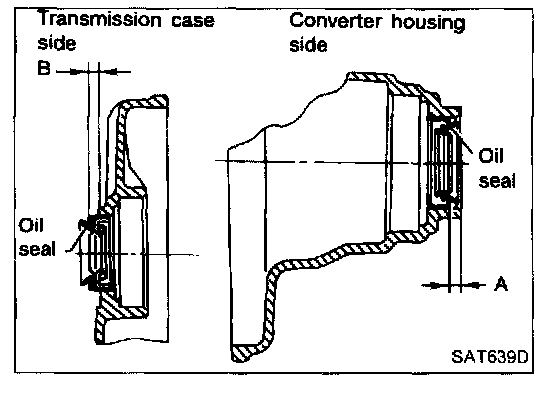

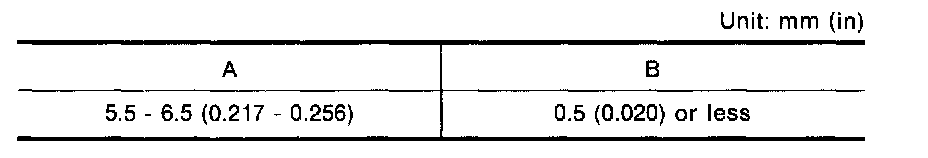

- Install oil seals so that dimensions "A" and "B" are within specifications.
4. Reinstall any part removed.
