Interior Trim - Floor Mat Retainer Replacement

Classification:
BF93-038

Section:
Body & Frame

Reference:
TECHNICAL BULLETIN NTB93-138

Models:
1991-93 Sentra

Date:
September 28, 1993

SENTRA/NX FRONT FLOOR MAT RETAINING HOOK REPLACEMENT

APPLIED MODELS:
1991-93 Sentra (B13)
1991-93 NX (KB13)

SERVICE PROCEDURE

Customers may complain of the front floor mat retaining hooks pulling out of the plastic clip located below the front edge of the passenger and driver's seat.

SERVICE PROCEDURE

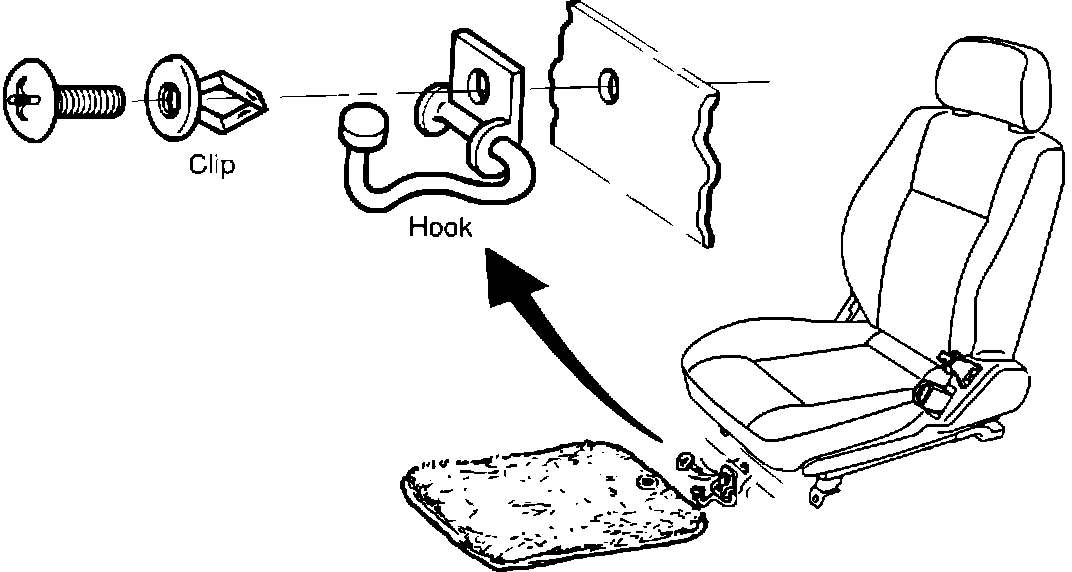

If the floor mat hook is missing or if the plastic retaining clip is damaged and needs replacing, use the clip for the 240SX (P/N 63844-35F00) and a new Sentra hook (P/N 74985-35F00).

PARTS INFORMATION

Description New Part Number Former Part Number

Retaining clip 240SX 63844-35F00 01553-06161





WARRANTY INFORMATION
