Engien - Cylinder Head Service Update

Classification: EM94-004

Section: Engine Mechanical

Reference: TECHNICAL BULLETIN NTB94-048

Models: 1991-93 Sentra

Date: April 26, 1994

GA16DE SENTRA CYLINDER HEAD SERVICE

APPLIED MODEL:
1991-93 Sentra with GA16DE

APPLIED DATE:
8/90 - 3/93

SERVICE INFORMATION

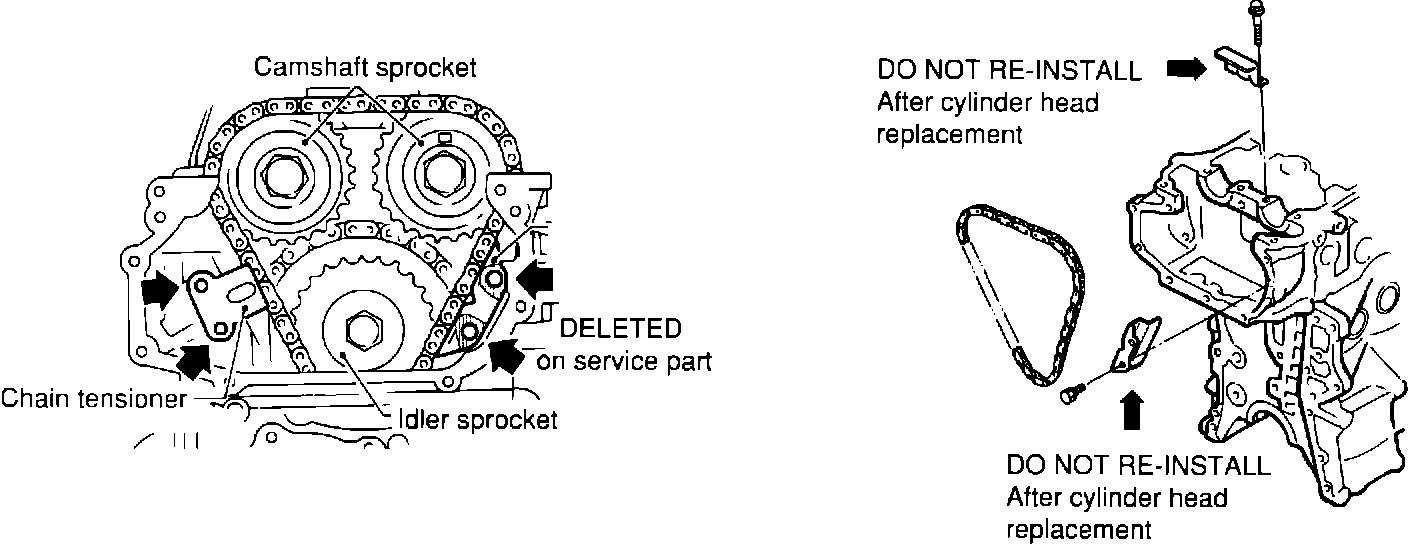

When replacing a Sentra GA16DE cylinder head, discard the top and right side timing chain guides. The service part cylinder head does not have threaded holes to install the guides. As of 3/93 production, these guides have been deleted from GA16DE engines.

PARTS INFORMATION

Description Part Number Application

Cylinder head 11040-57Y01 GA16DE
