Ball Joint: Testing and Inspection

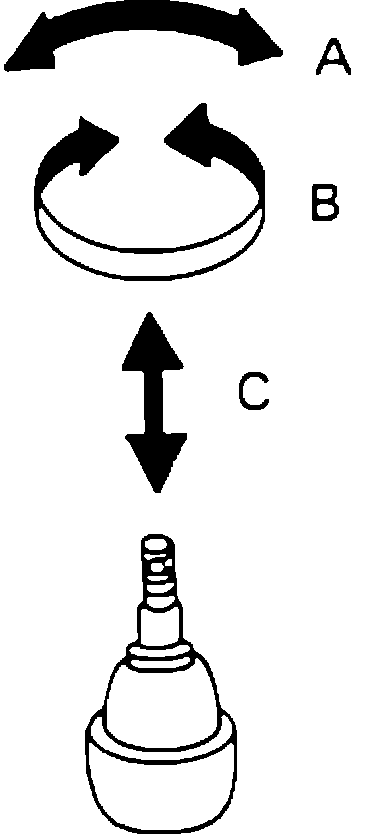

Fig. 5 Inspecting Ball Joint.:

Check ball joint for play. If ball stud is worn, play in axial direction (C) is more than zero inches, ball joint swing force (A) is not 1.8-12.3 lbs. or ball joint turning torque (B) is not 4.3-30.4 inch lbs., replace ball joint, Fig. 5. Before checking, turn ball joint at lease 10 revolutions.
