Steering Column: Service and Repair

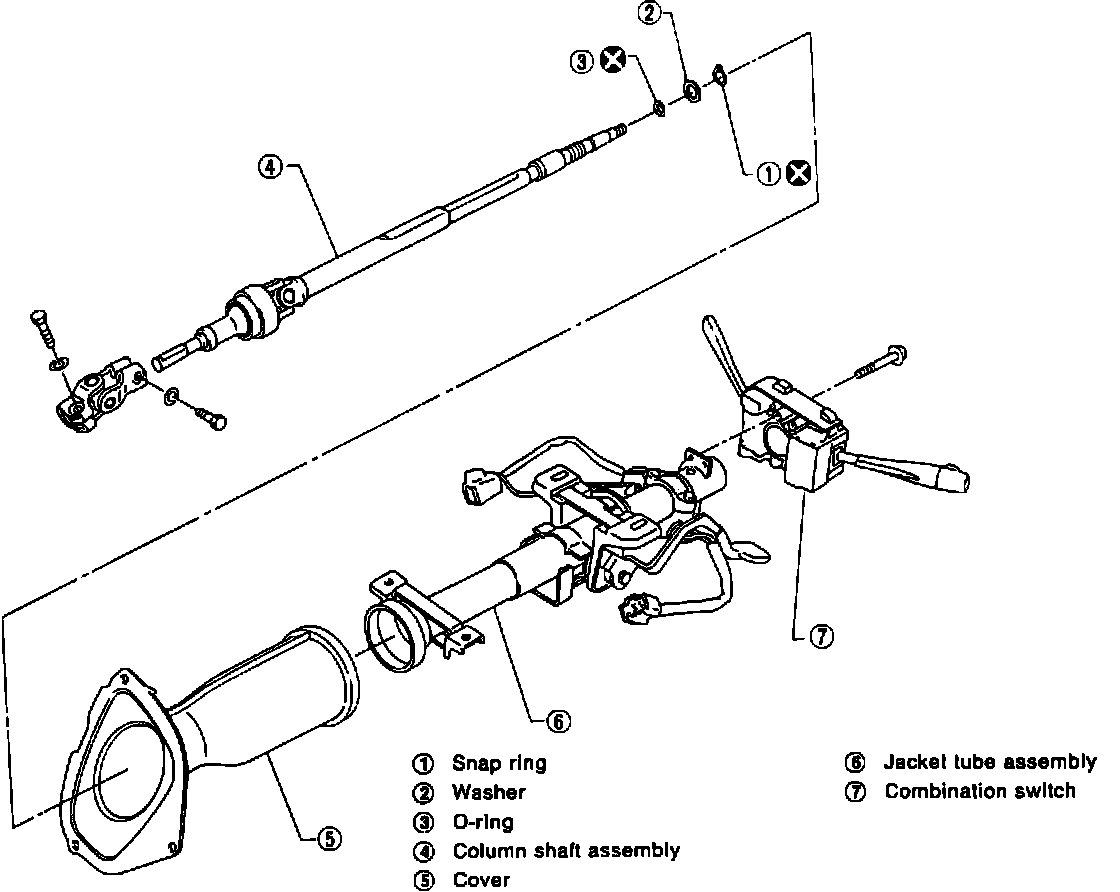

Fig. 10 Exploded View Of Steering Column. 1991-92 NX Coupe, NX 1600, NX 2000 & Sentra:





For steering column service, refer to Fig. 10.
