Neutral Safety Switch: Testing and Inspection

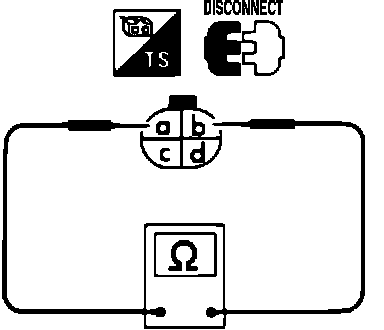

Inhibitor Switch Test:

1. Disconnect connector for inhibitor switch.
2. Using an ohm meter check for continuity as per the following.
3. Transmission in PARK position:
Continuity between terminals A and B.
4. Transmission in NEUTRAL position:
Continuity between terminals A and B.
Replace inhibitor switch if it fails above tests.
