Home >> Nissan-Datsun >> 1992 >> NX L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Diagrams >> Electrical Diagrams >> Charging System Wiring Circuit

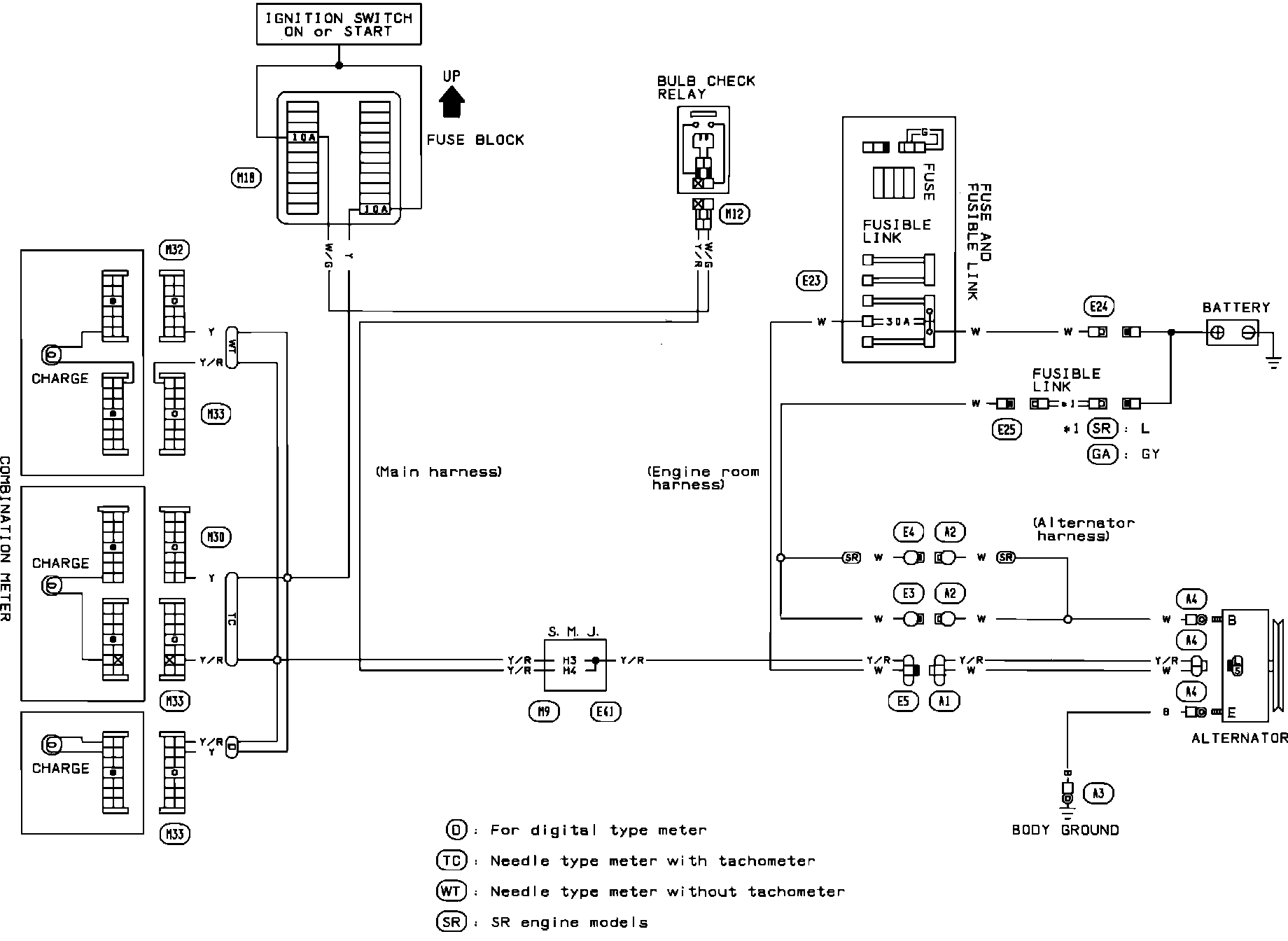

Charging System Wiring Circuit

Charging System:
