Home >> Nissan-Datsun >> 1992 >> NX L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Starting and Charging >> Neutral Start Relay (Inhibitor Relay) >> Locations >> Clutch Relay

Clutch Relay

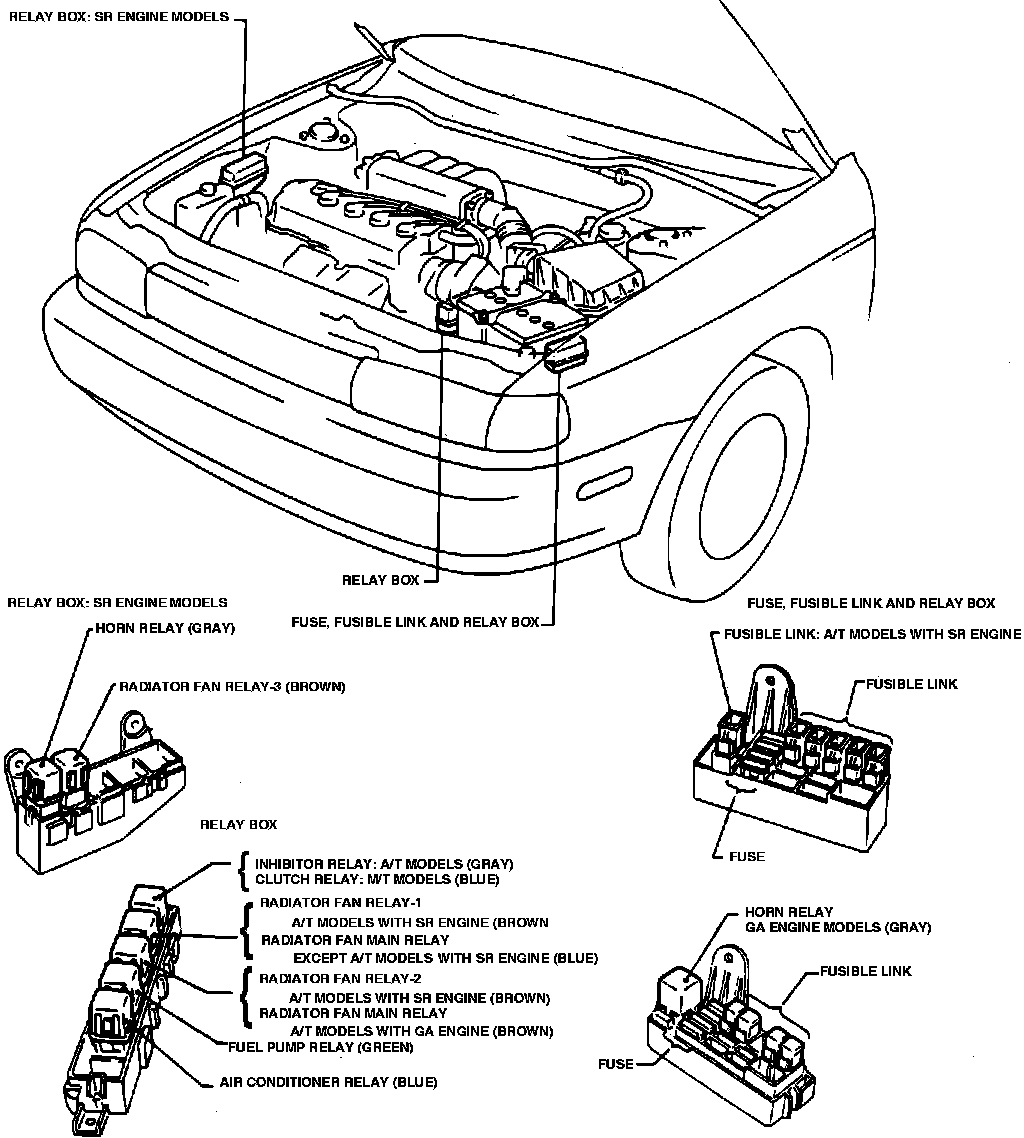

Engine Compartment Component Location (Sedan):

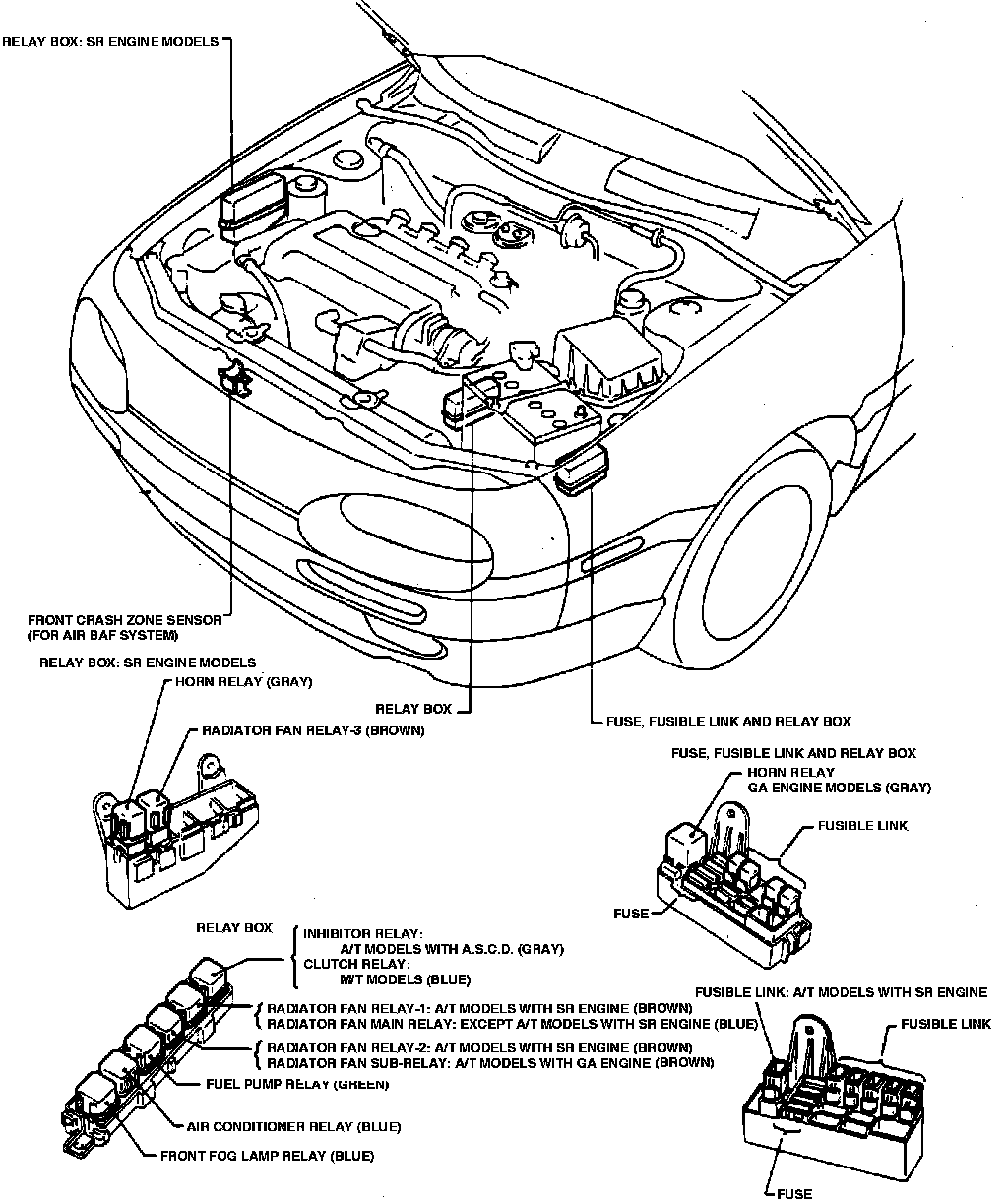

Engine Compartment Component Location (Coupe):




Front LH Side Of Engine Compartment, Right Of Battery, In Engine Compartment Relay Box
