Cooling Fan Relay

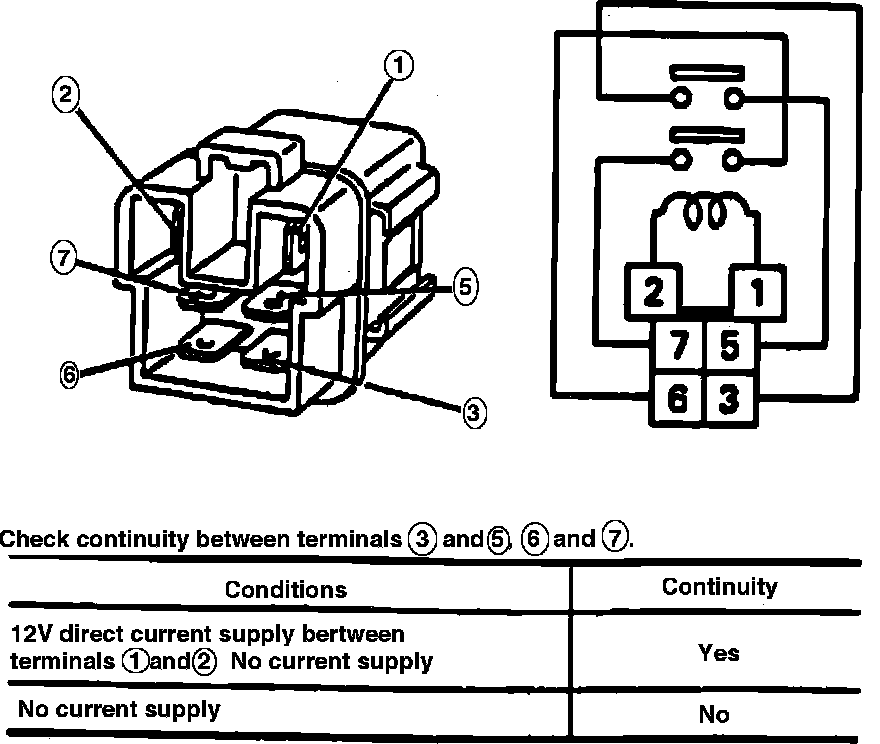

Fig. 21 Testing Cooling Fan Relay No. 1.:

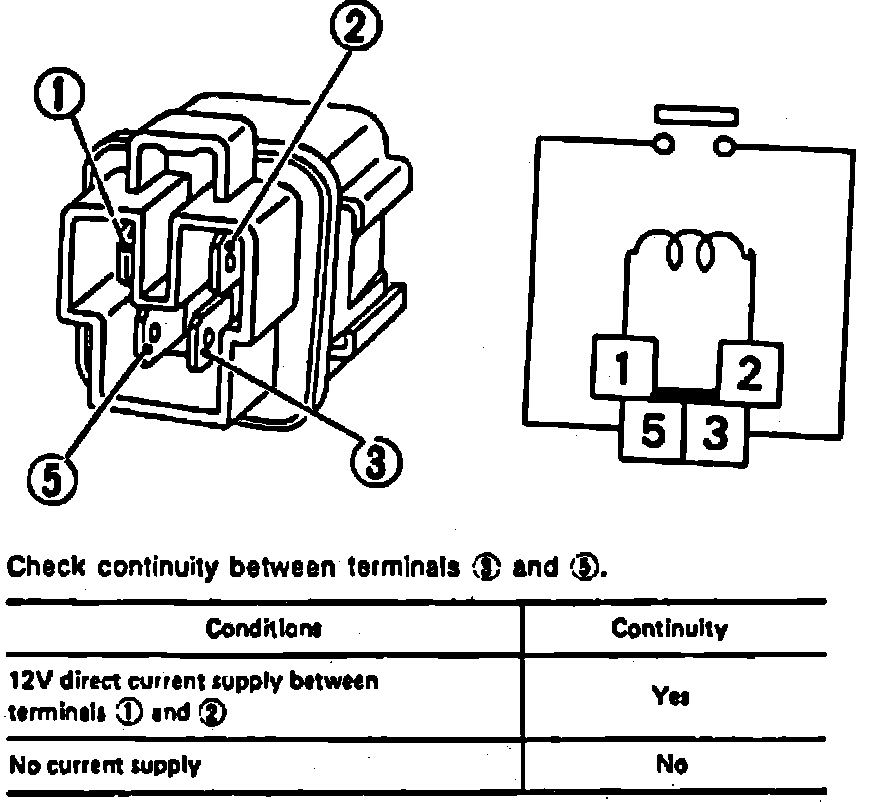

Fig. 23 Testing Cooling Fan Relay No. 2 & No. 3.:

Refer to Figs. 21 and 23 for fan relay testing, if test results are not as specified, replace relay.
