Stall Test
STALL TEST PROCEDURE1. Check A/T and engine fluid levels. If necessary, add fluid.

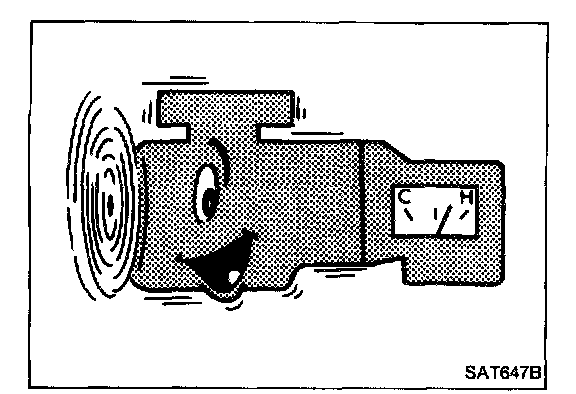

2. Warm up engine until engine oil and A.T.F. reach operating temperature after vehicle has been driven approx. 10 minutes.
A.T.F. operating temperature: 50 - 80°C (122 - 176°F)

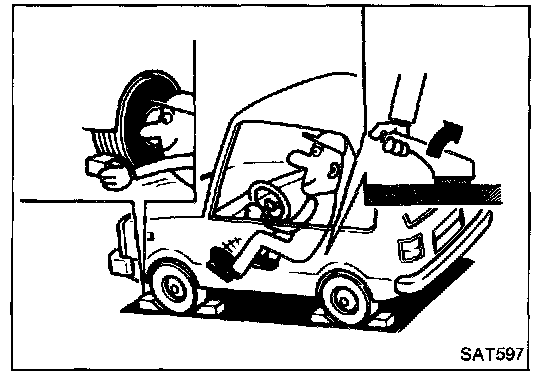

3. Set parking brake and block wheels.
4. Install a tachometer where it can be seen by driver during test.

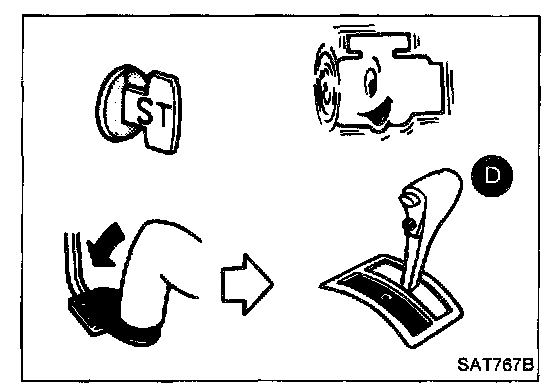

5. Start engine, apply foot brake, and place selector lever in "D" range.

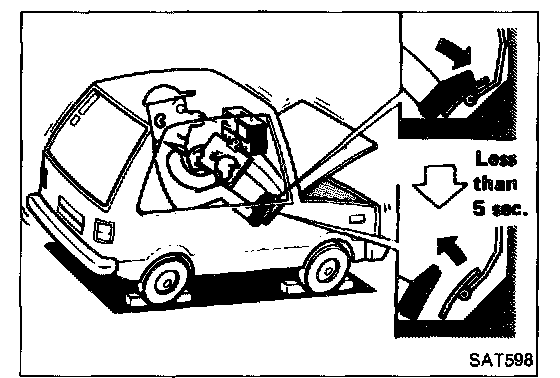

6. Accelerate to wide-open throttle gradually while applying foot brake.
7. Quickly note the engine stall revolution and immediately release throttle.
- During test, never hold throttle wide-open for more than 5 seconds.
Stall revolution standard:
RL4F03A (GA16DE engine): 2,450 - 2,750 rpm
RL4F03V (SR20DE engine): 1,900 - 2,200 rpm

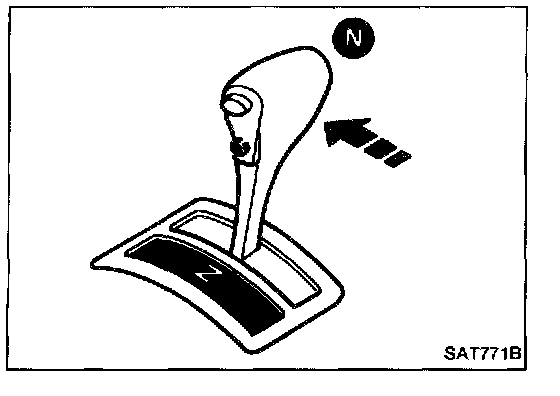

8. Shift selector lever to "N".
9. Cool off A.T.F.
- Run engine at idle for at least one minute.
10. Perform stall tests in the same manner as in steps 5 through 9 with selector lever in "2", "1" and "R", respectively.

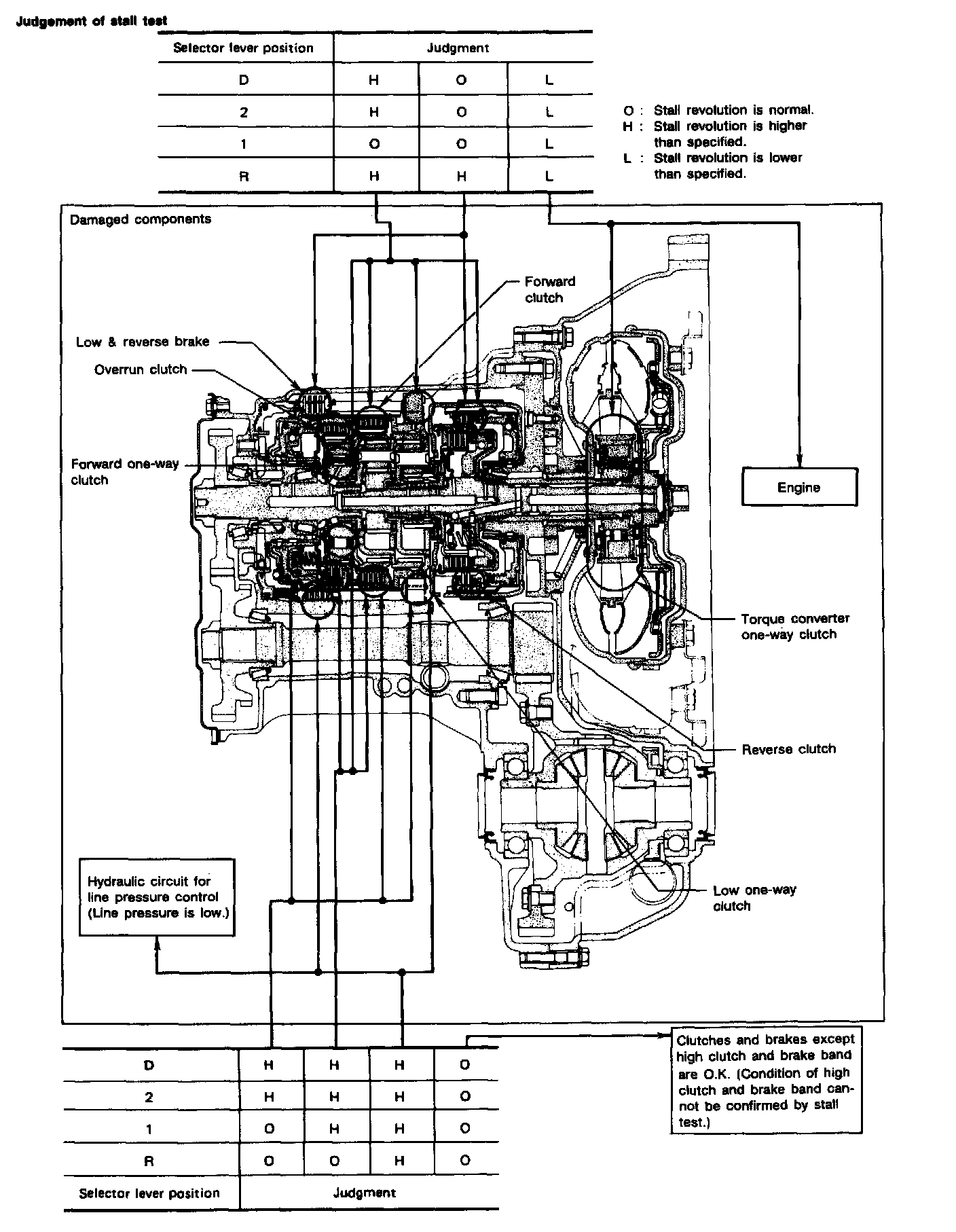

Judgement Of Stall Test:
