Fuel Pump: Testing and Inspection

Fuel Pump Testing:

1. Remove upper and lower portions of rear seat.
2. Remove round fuel pump access panel.
3. Remove fuel pump electrical connector.

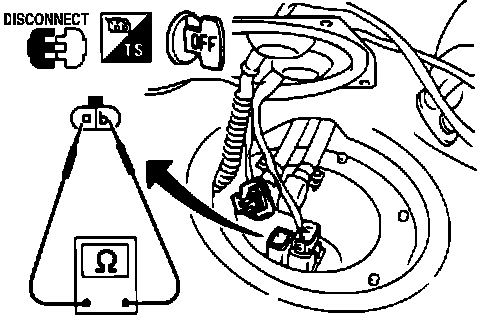

4. Check for continuity between terminals A and C. Replace the pump if the circuit is open.
