EGR Control Solenoid: Testing and Inspection

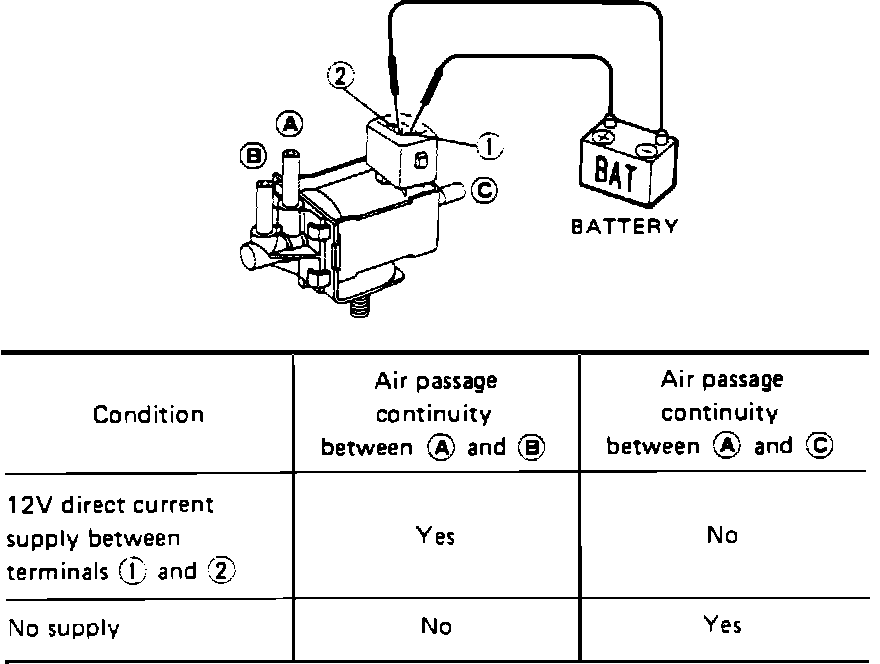

EGRC - Solenoid Valve Test:

Apply voltage to the solenoid terminals and check air passages for continuity as shown above.
CAUTION: Reversing polarity will damage the solenoid.
^Replace solenoid if it fails above test.
