Start Signal

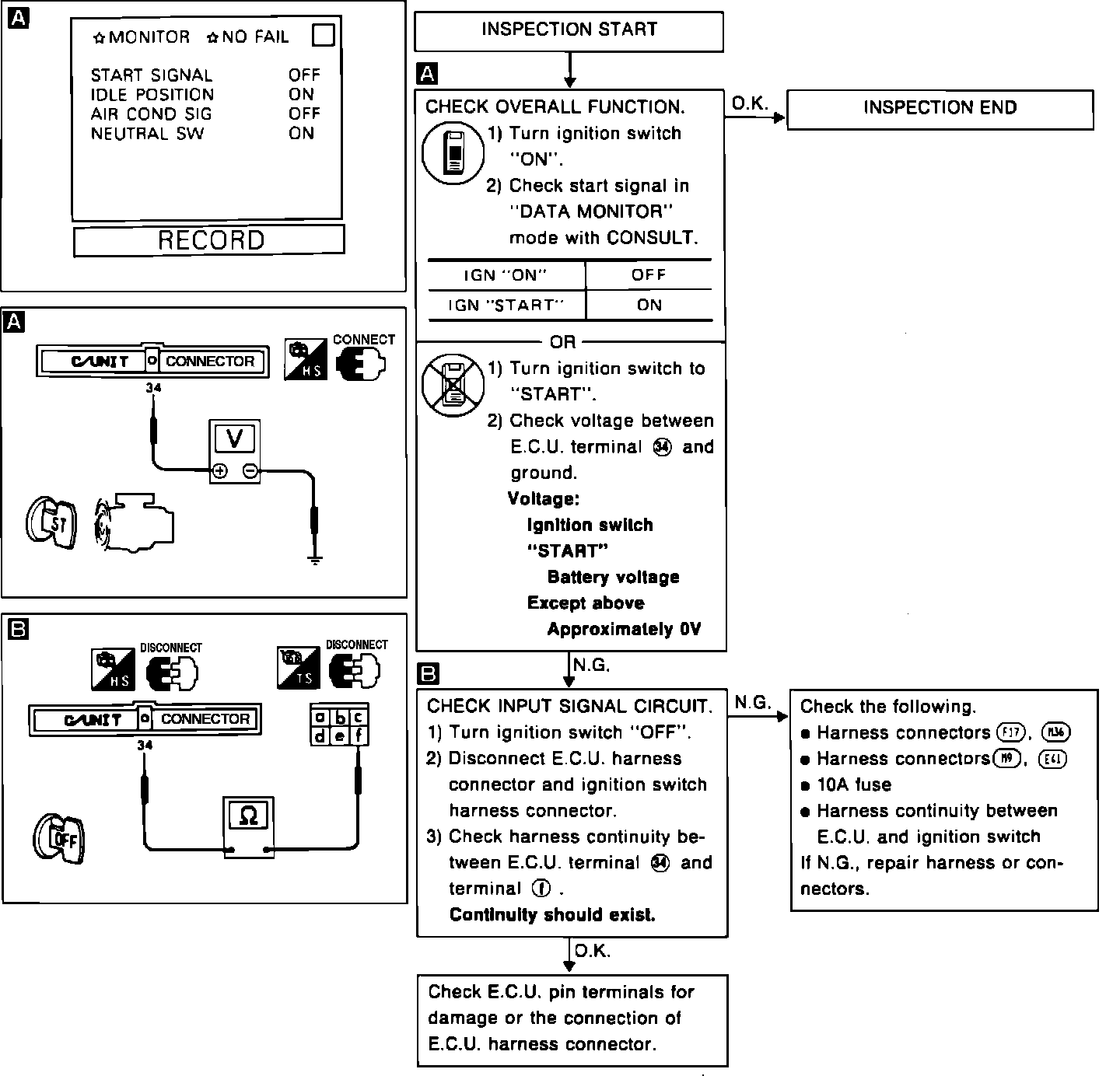

Start Signal Circuit Diagnosis:

CIRCUIT TEST IMAGE

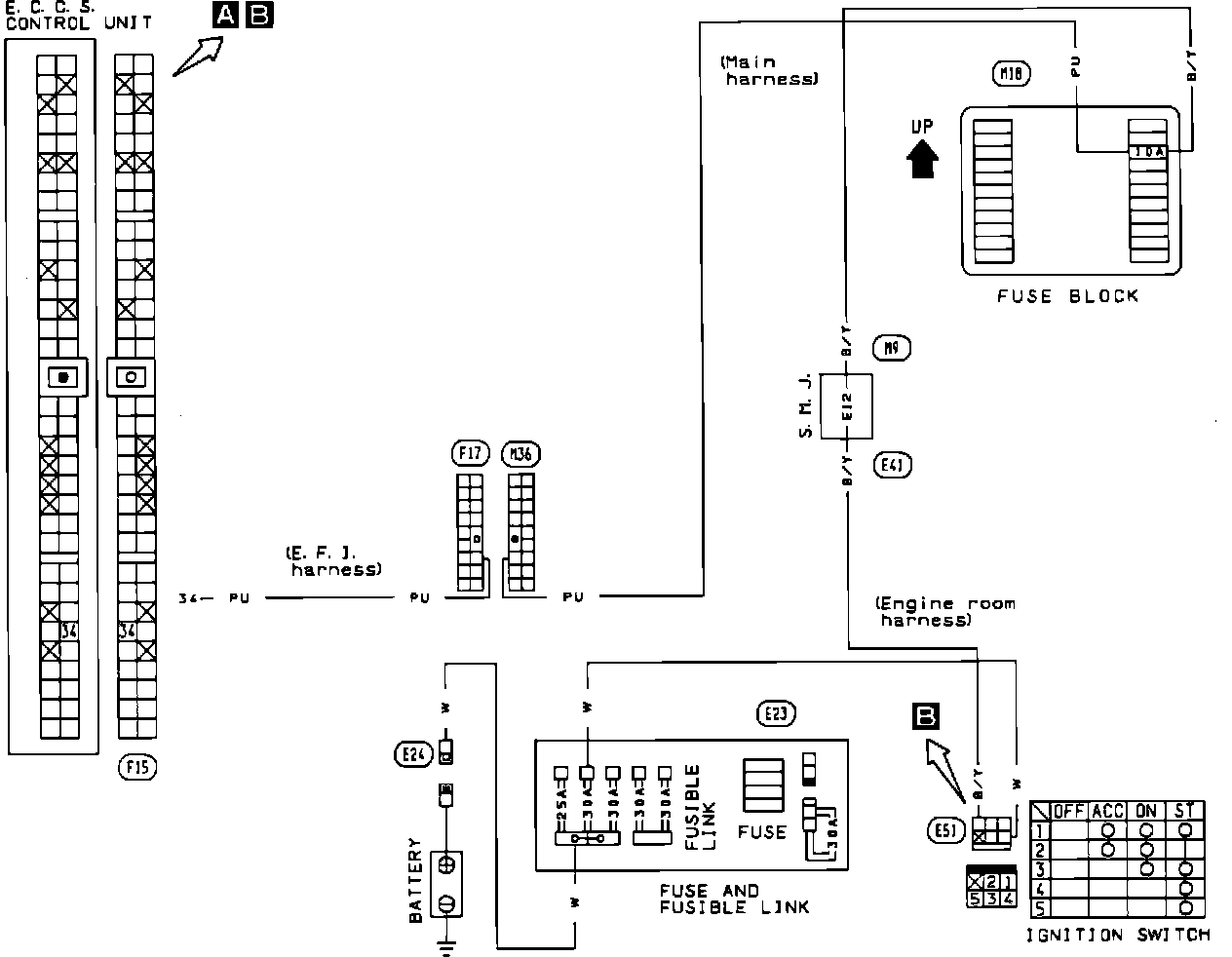

Start Signal Circuit:

CIRCUIT DIAGRAM IMAGE
