M/T Only

݊[3Circuit Diagnosis M/T:

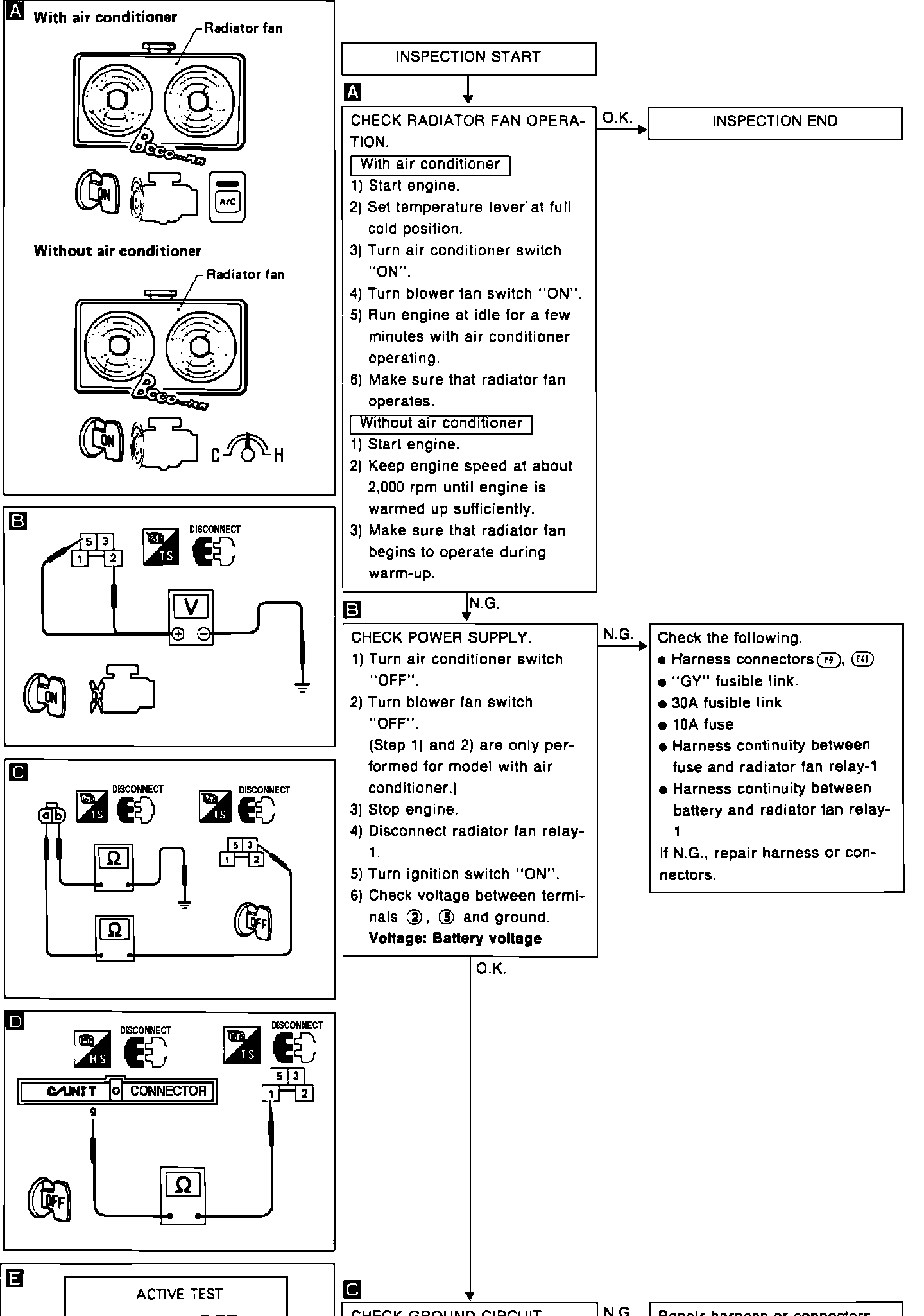

DIAGNOSTIC CHART IMAGE

Radiator Fan Control Circuit:





CIRCUIT DIAGRAM IMAGE

Harness Connectors M/T:

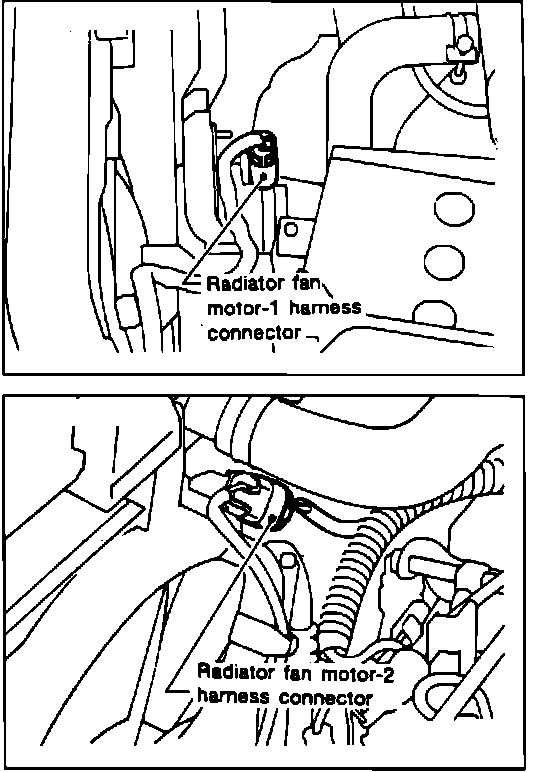

CONNECTOR LOCATION IMAGE

Relay Locations:





RELAY LOCATION IMAGE
