A/T Only

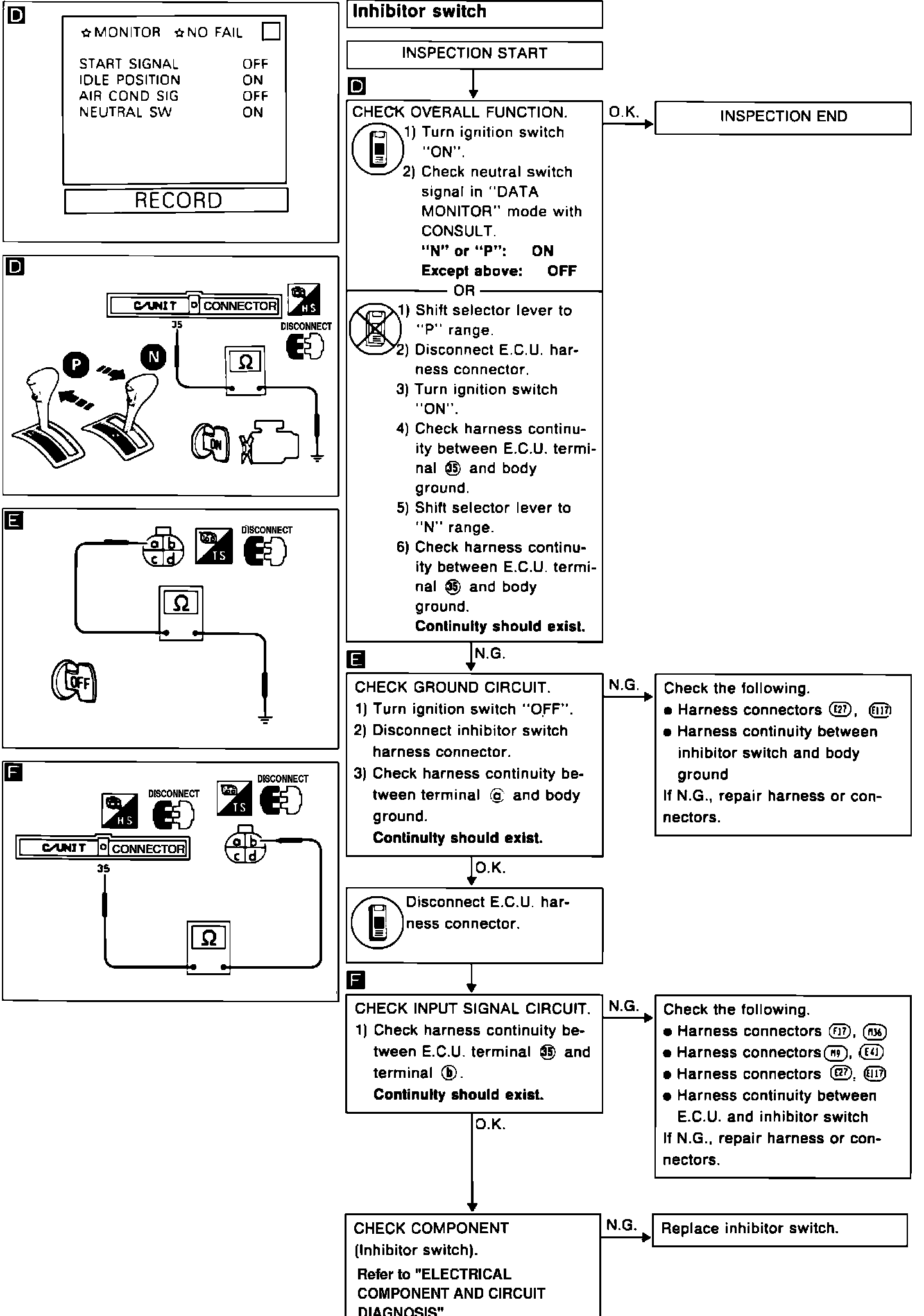

 3Inhibitor Switch Circuit Diagnosis:





CIRCUIT TEST IMAGE

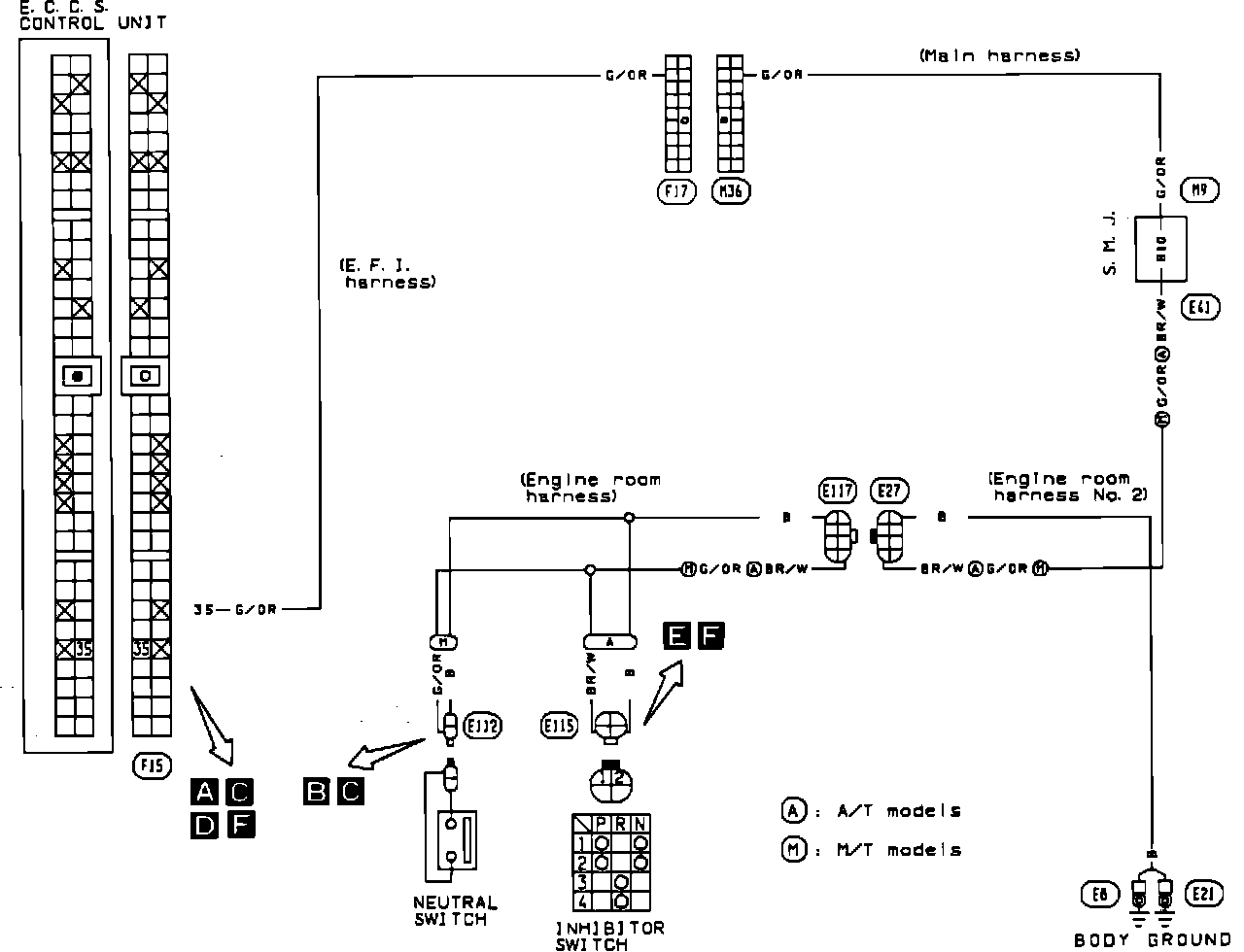

Neutral/Inhibitor Switch Circuit:





CIRCUIT DIAGRAM IMAGE

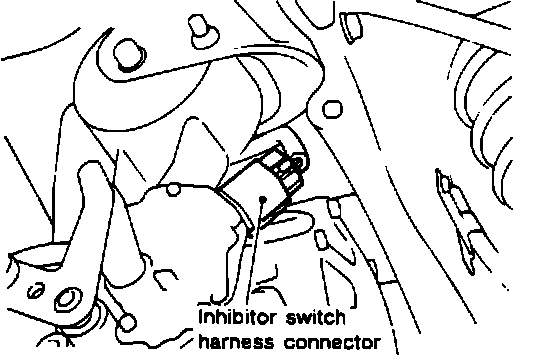

Harness Connector:





INHIBITOR LOCATION IMAGE
