Auxiliary Air Control (AAC) Valve Circuit

Auxiliary Air Control Valve Diagnosis:

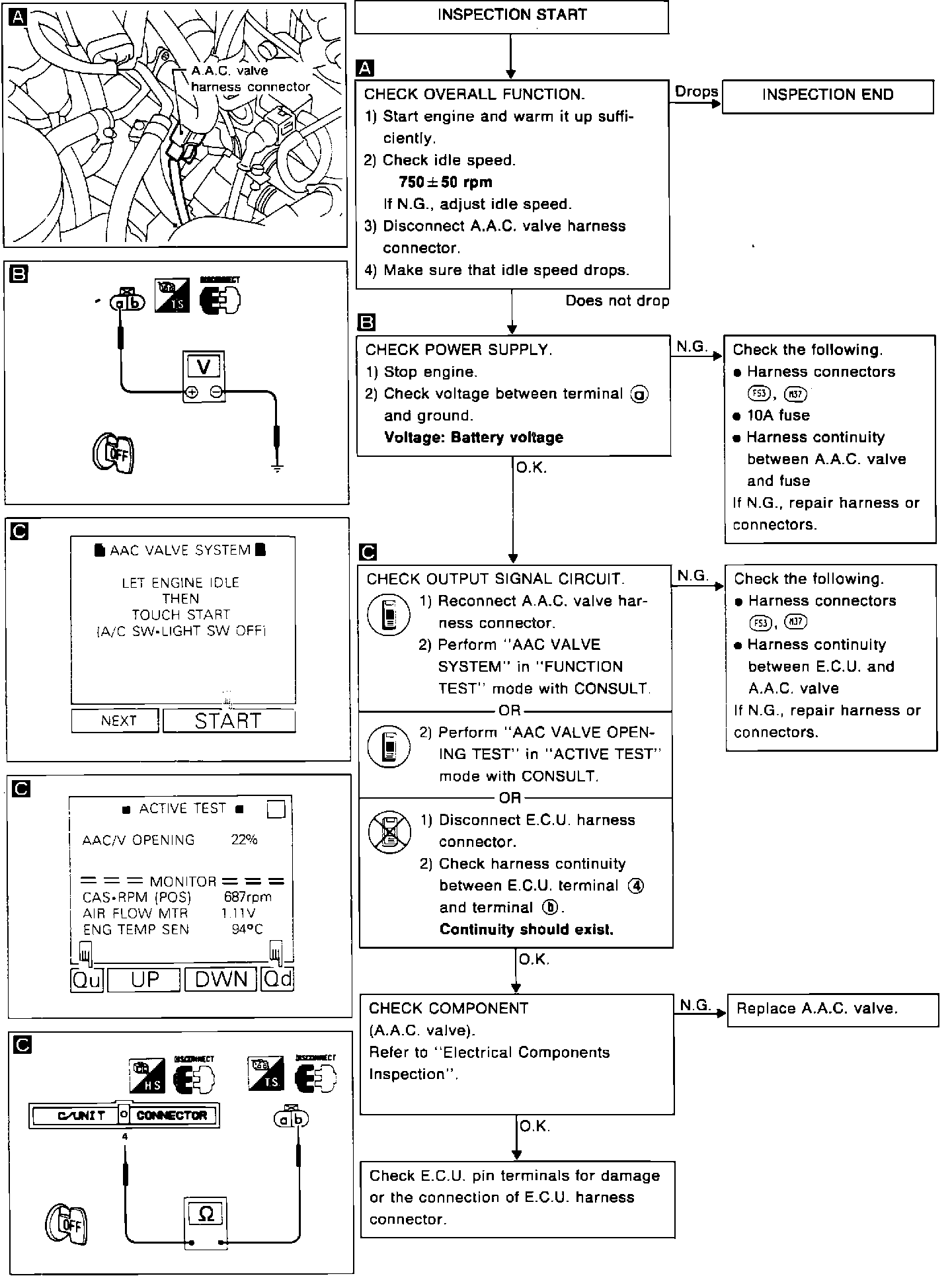

CIRCUIT TEST IMAGE

Auxiliary Air Control Valve:

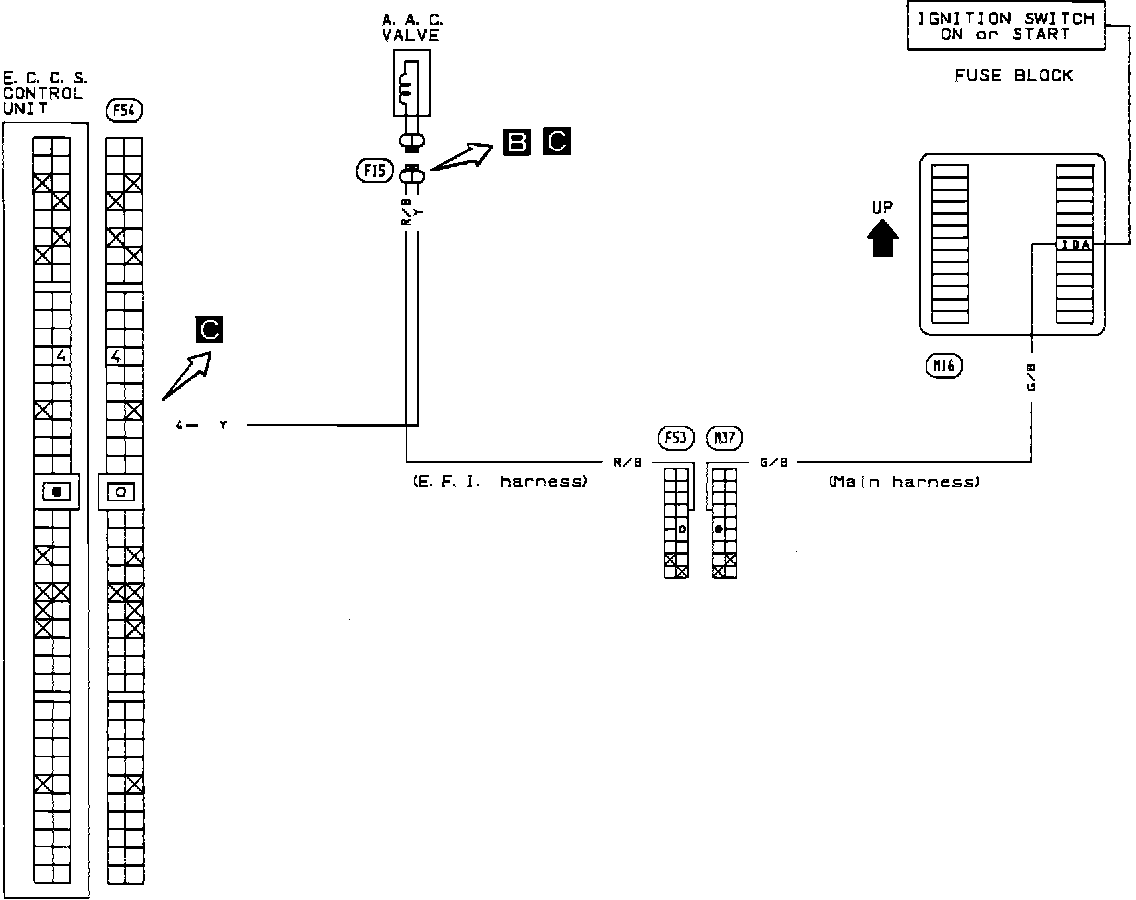

CIRCUIT DIAGRAM IMAGE

Auxiliary Air Control Valve Component Locations:

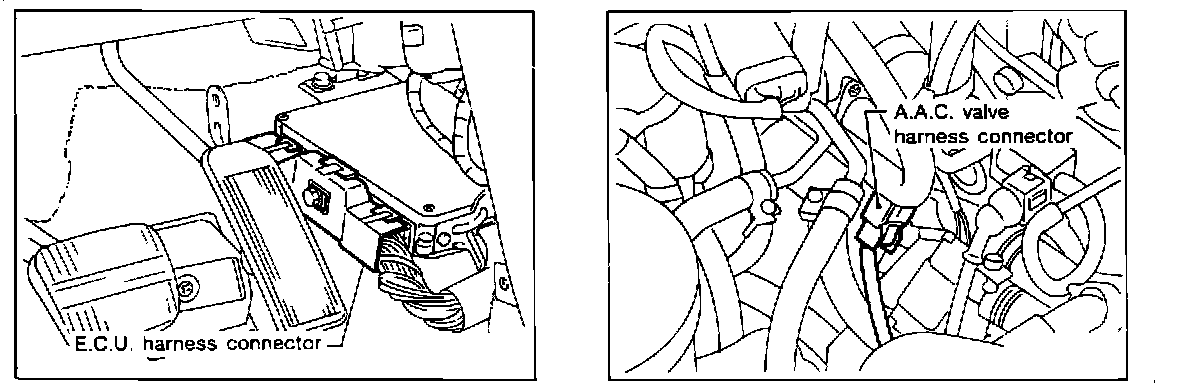

CONNECTOR LOCATION IMAGE
