Air Regulator

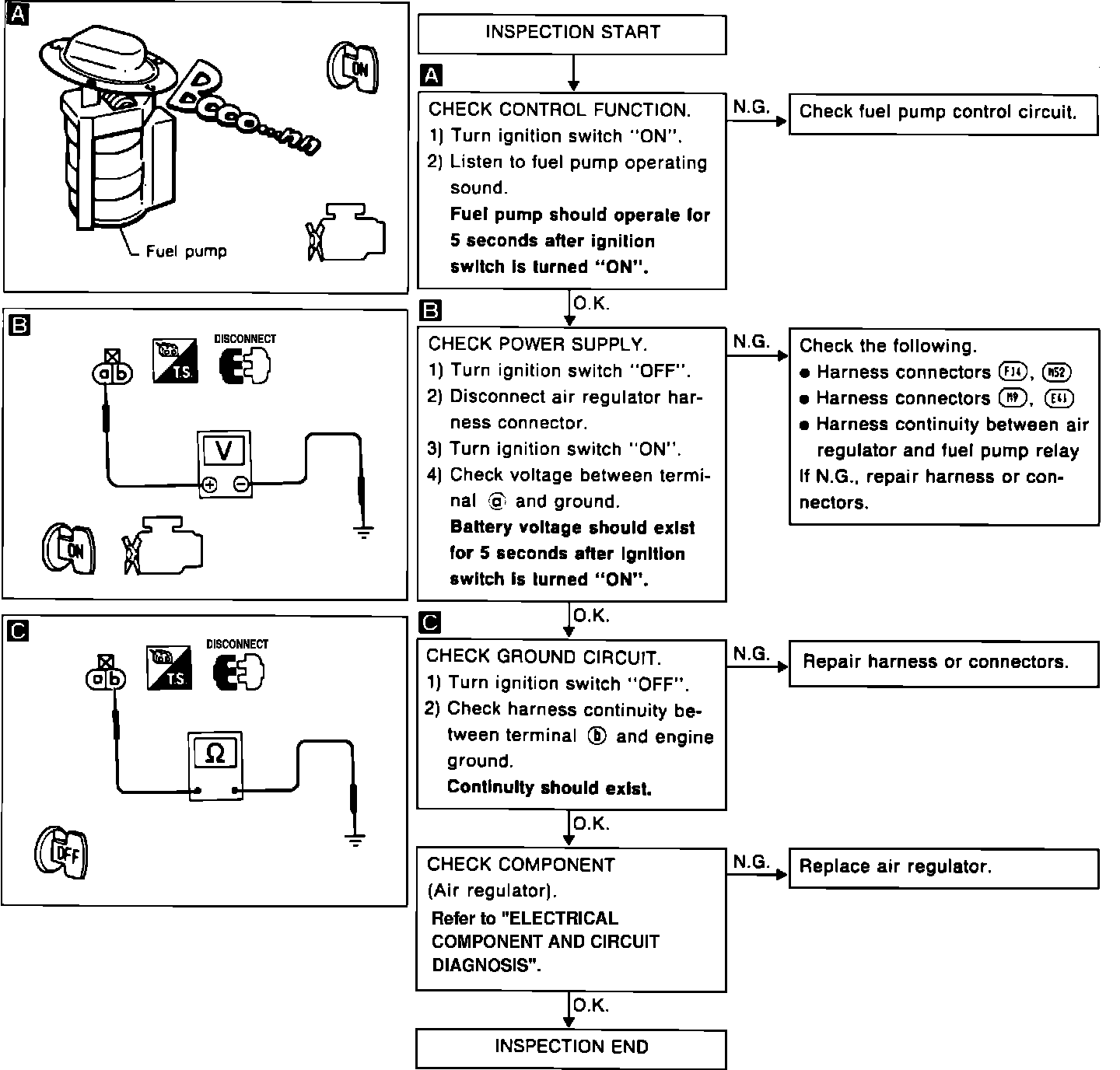

Air Regulator Circuit Diagnosis:





CIRCUIT TEST IMAGE

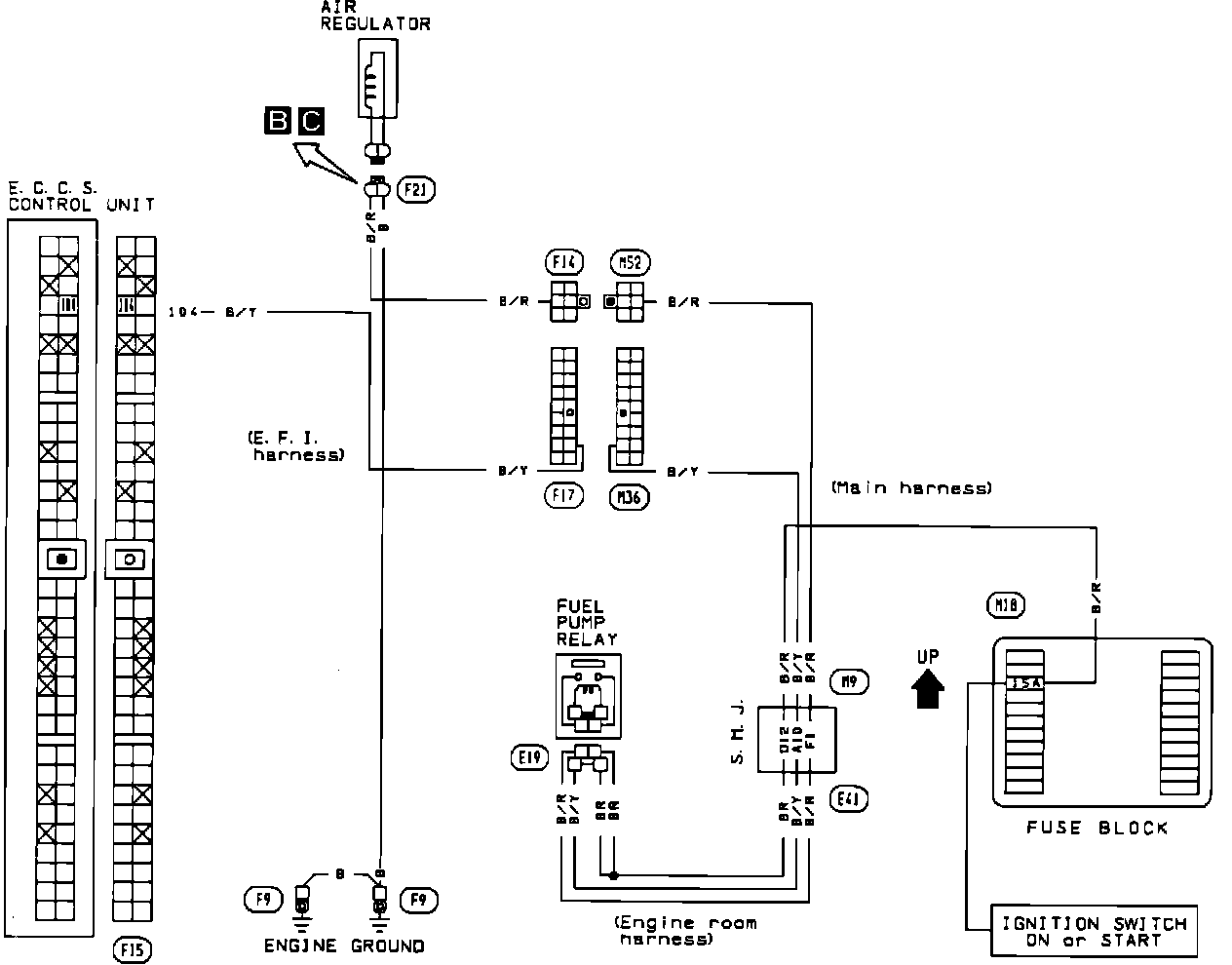

Air Regulator Circuit:





CIRCUIT DIAGRAM IMAGE

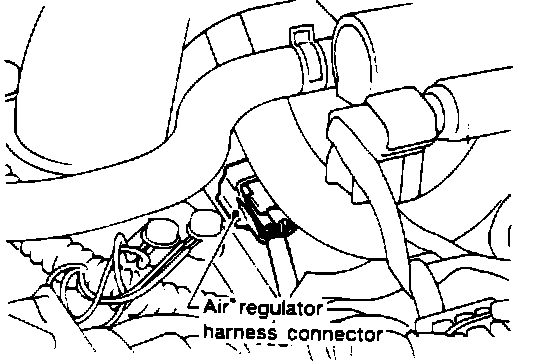

Harness Connector:





AIR REGULATOR AND RELAY CONNECTORS IMAGE
