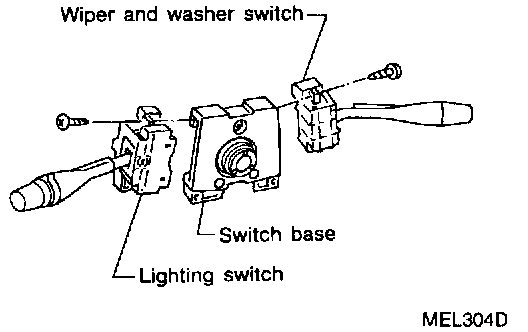

Combination Switch

1. Disable airbag system as described under MAINTENANCE PROCEDURES/AIRBAG ARMING & DISARMING.
2. Disconnect battery ground cable.
3. Remove steering column shell covers.
4. Disconnect switch electrical connections.






5. Remove retaining screws and switch.
It is not necessary to remove combination switch base to replace light switch.
6. Reverse procedure to install, rearming airbag as described under MAINTENANCE PROCEDURES/AIRBAG ARMING & DISARMING.
