Oil Level Check

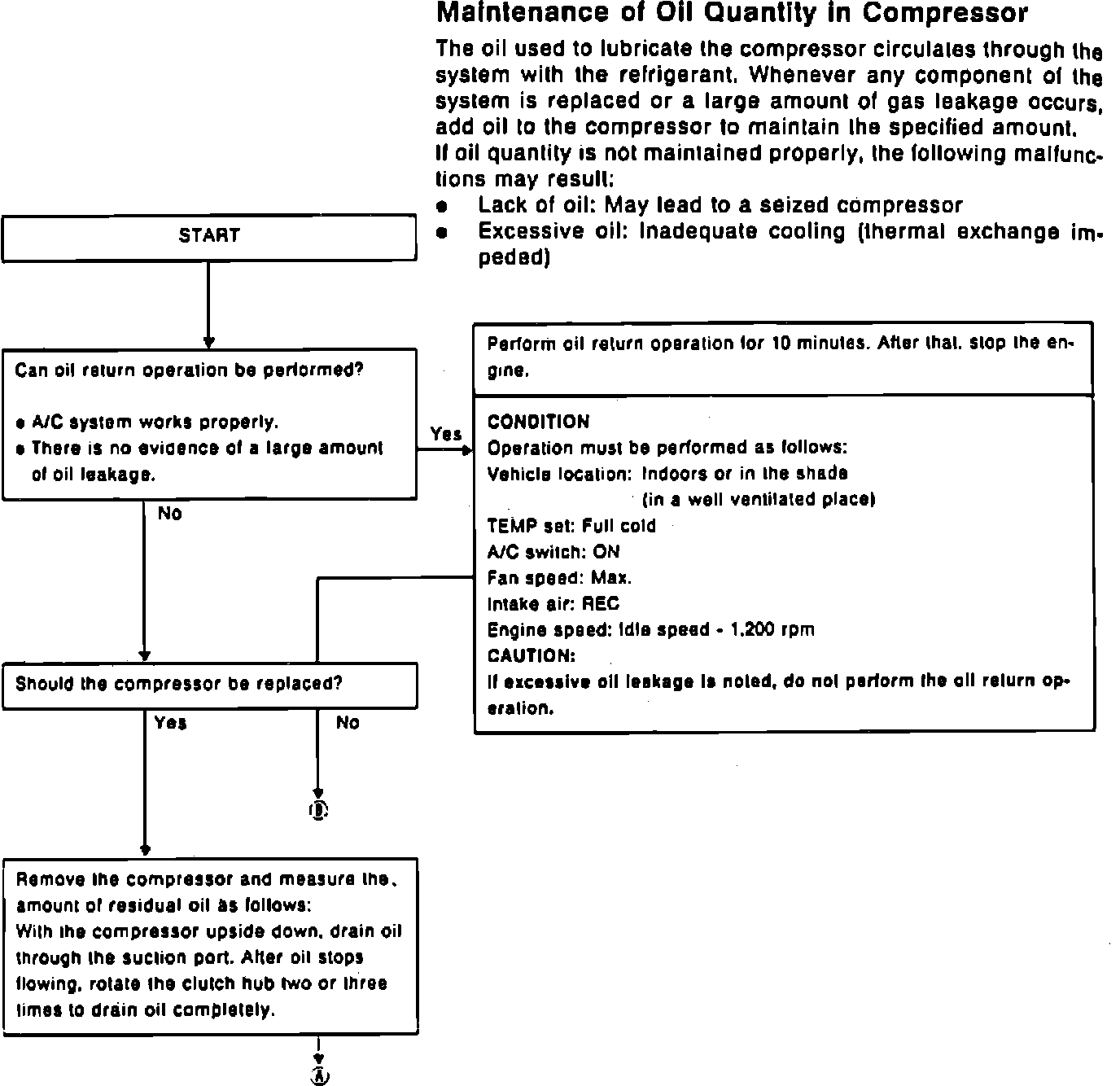

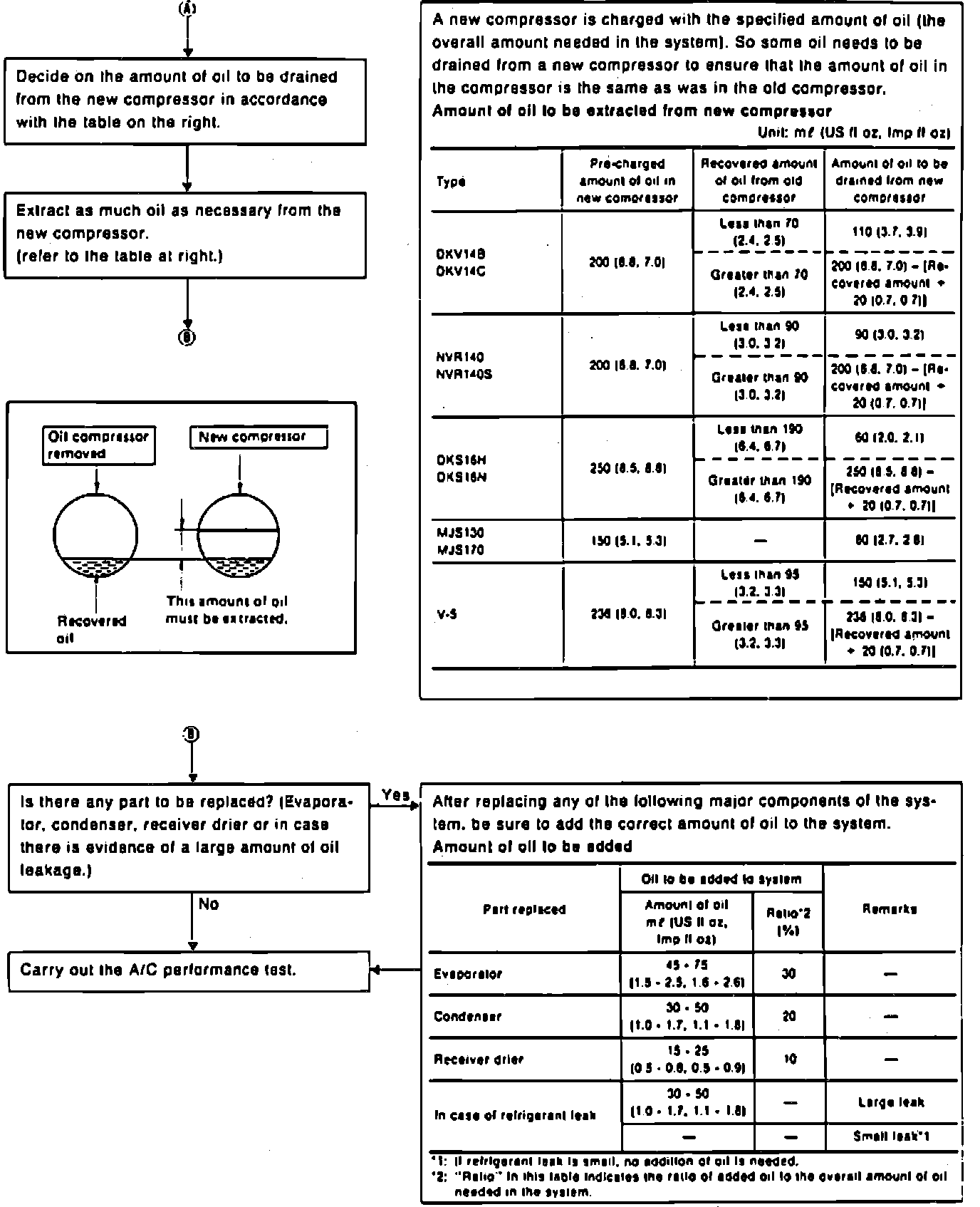

Fig. 26 Refrigerant Oil Replacement Flow Chart.:





Fig. 26 Refrigerant Oil Replacement Flow Chart.:





Adjust oil quantity according to the chart in Fig. 26.
