Refrigerant Pressure Sensor / Switch: Locations

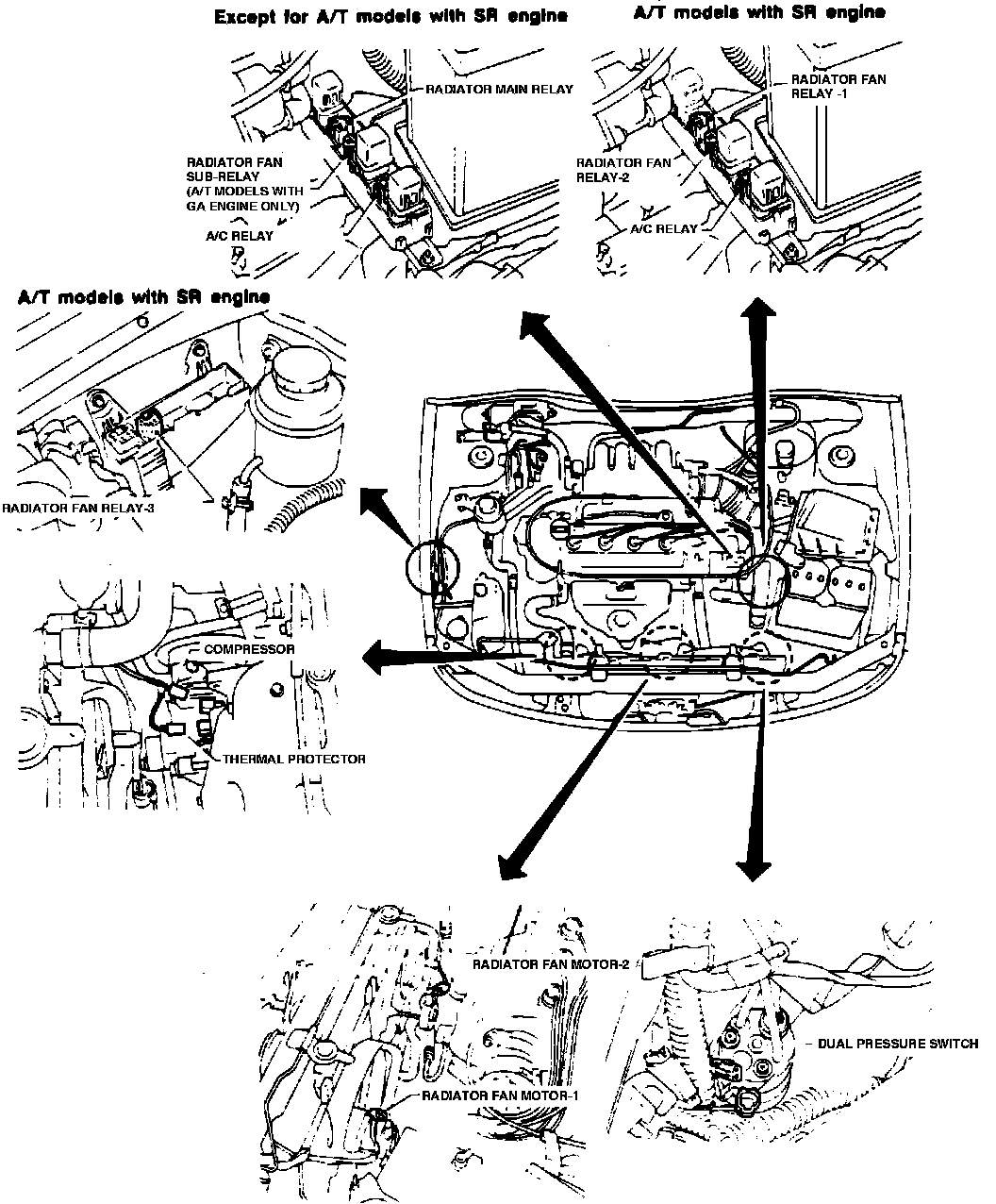

A/C Component Location (Engine Compartment):




Front LH Side Of Engine Compartment
