Cooling System: Testing and Inspection

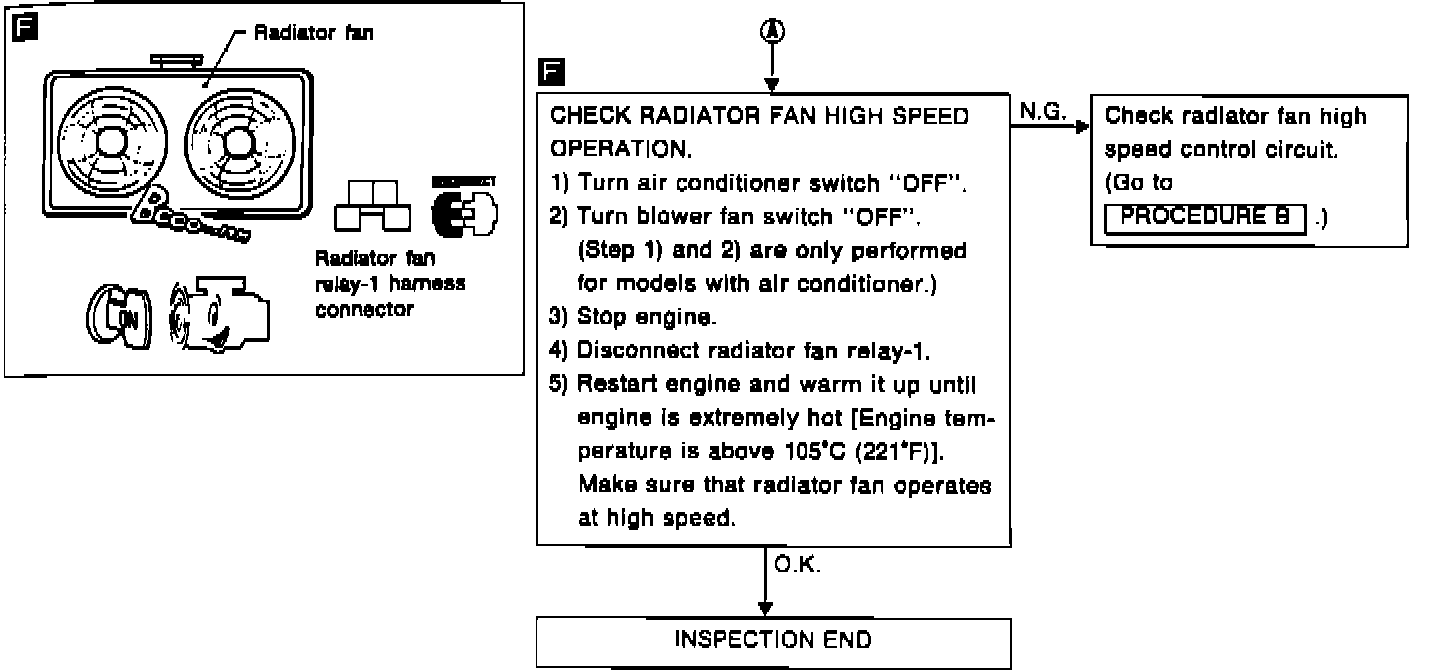

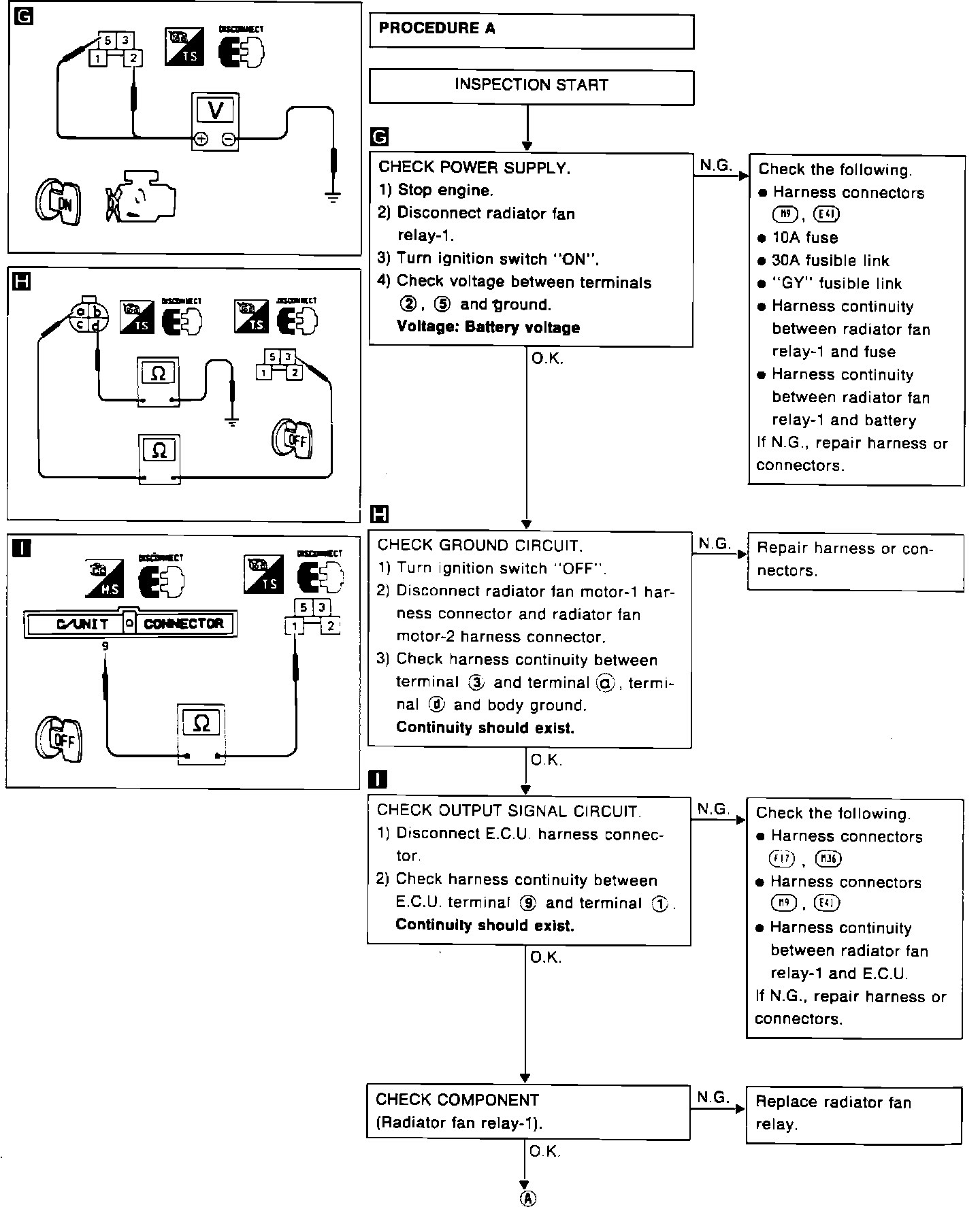

Fig. 16 Cooling Fan Diagnosis:

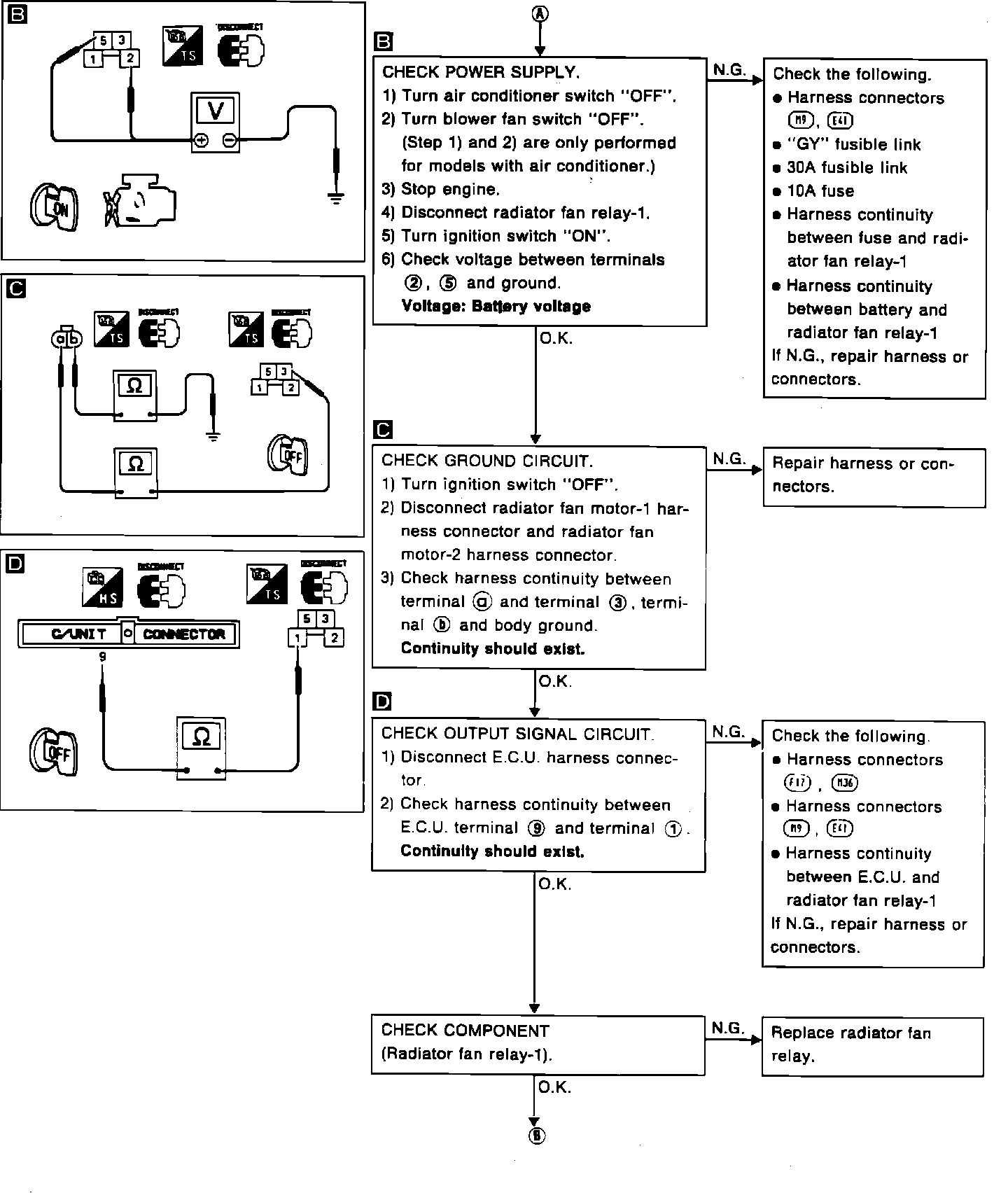

Fig. 16 Cooling Fan Diagnosis:

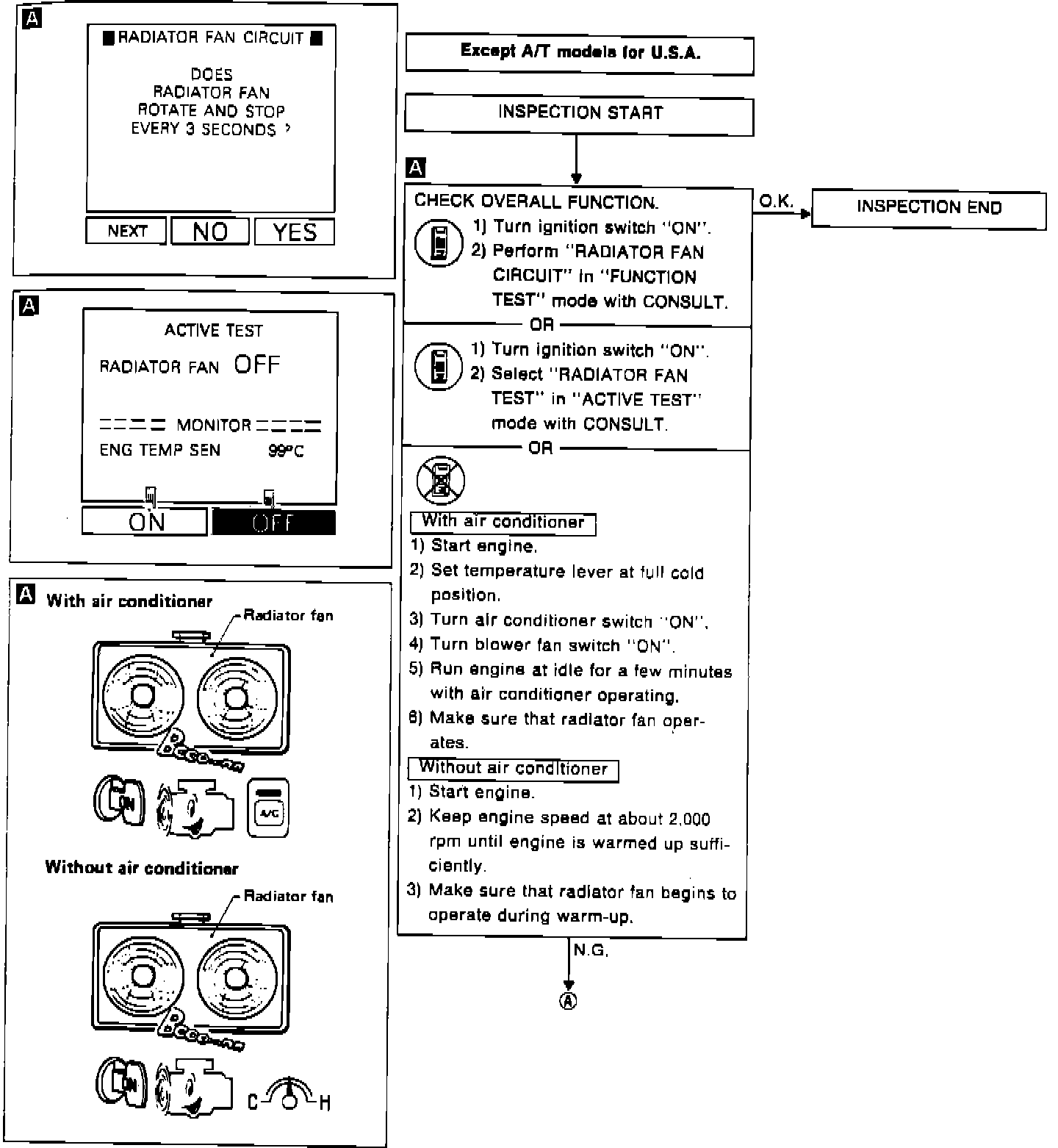

Fig. 16 Cooling Fan Diagnosis:

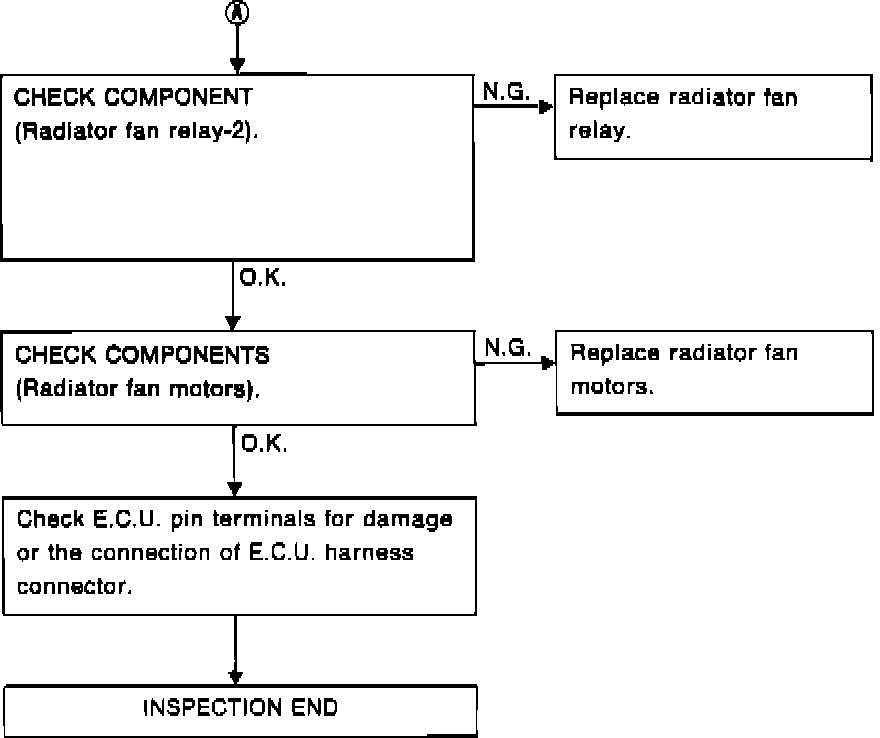

Fig. 16 Cooling Fan Diagnosis:

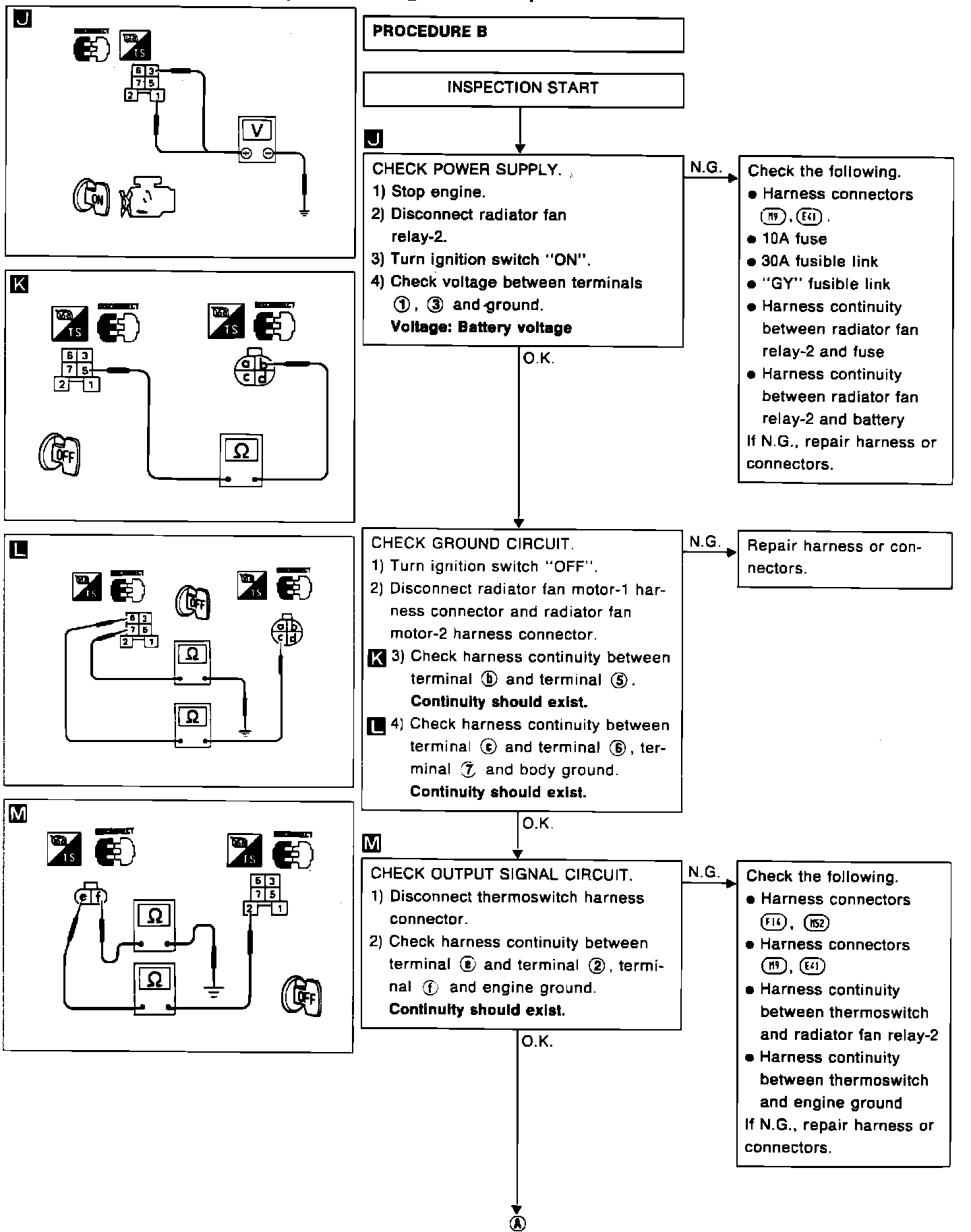

Fig. 16 Cooling Fan Diagnosis:

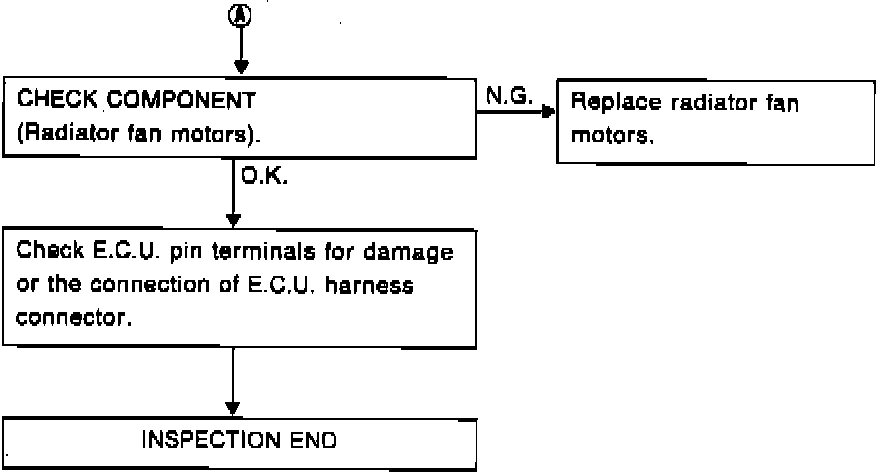

Fig. 16 Cooling Fan Diagnosis:

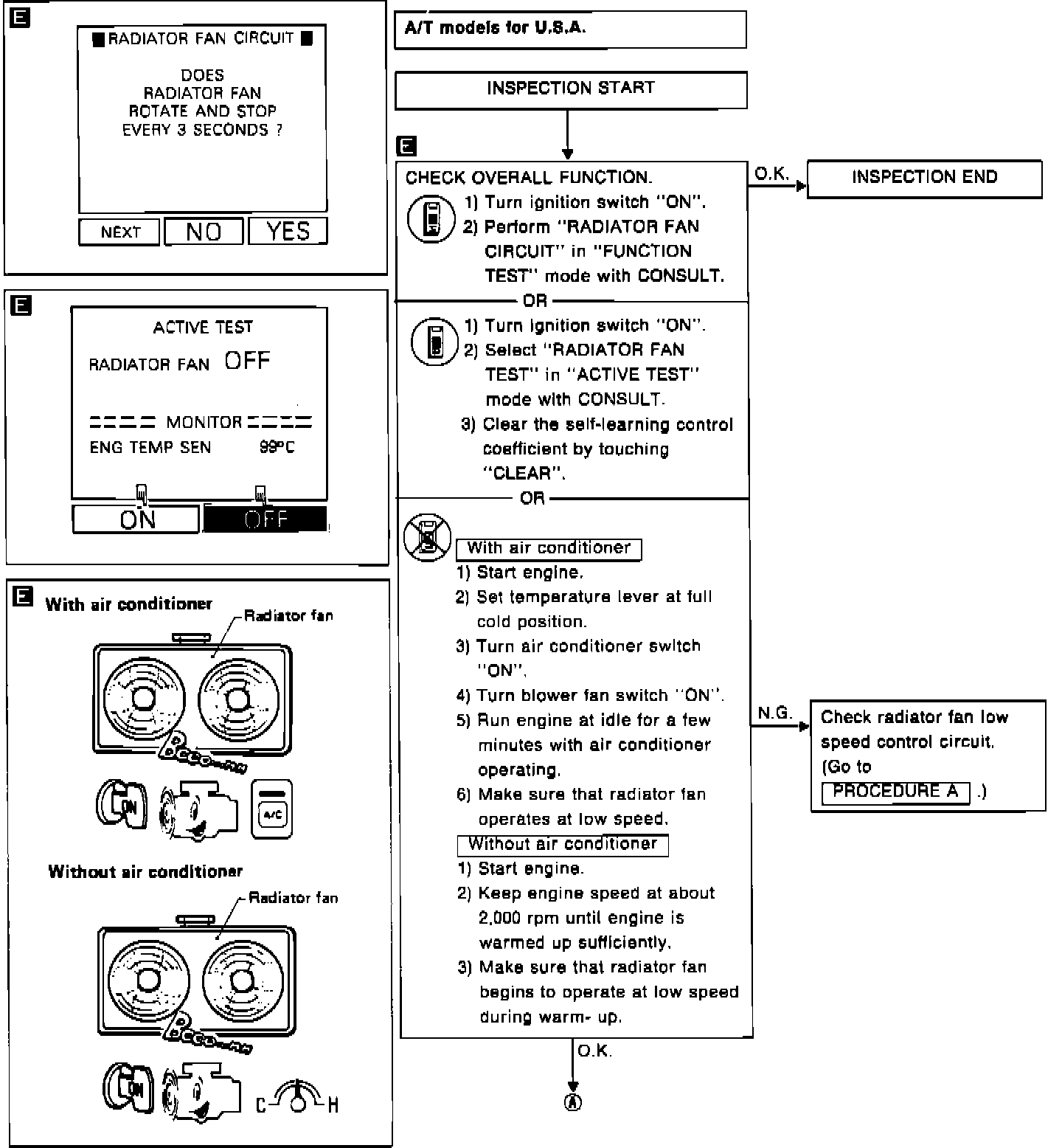

Fig. 16 Cooling Fan Diagnosis:

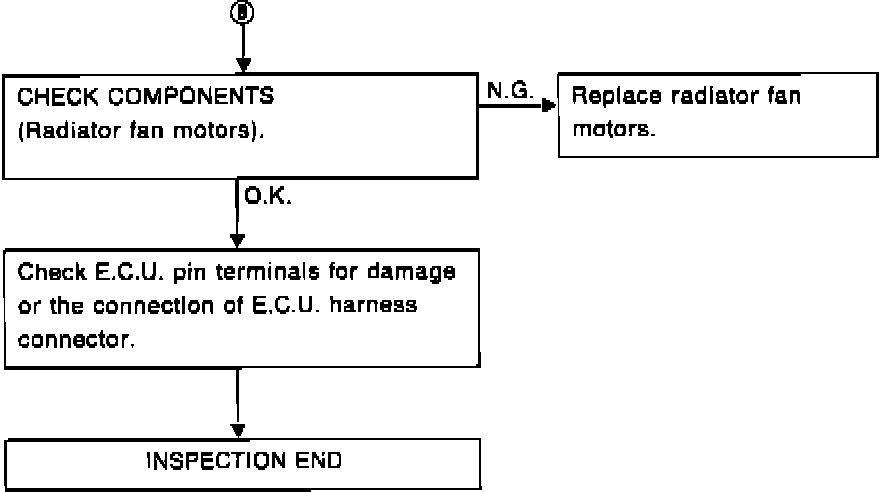

Fig. 16 Cooling Fan Diagnosis:

Fig. 16 Cooling Fan Diagnosis:

Refer to SCHEMATIC DIAGRAMS/ELECTRICAL AND ELECTRONIC DIAGRAMS, for wiring diagrams and diagnosis charts Fig. 16 to diagnose the cooling fan system.
