Radiator Cooling Fan: Description and Operation

Radiator Fan Control:

The ECU provides the ground signals to the radiator fan relays to control fan speed and operation based on signals supplied from the engine temperature sensor, A/C switch and vehicle speed sensor.

Radiator Fan Operating Conditions:

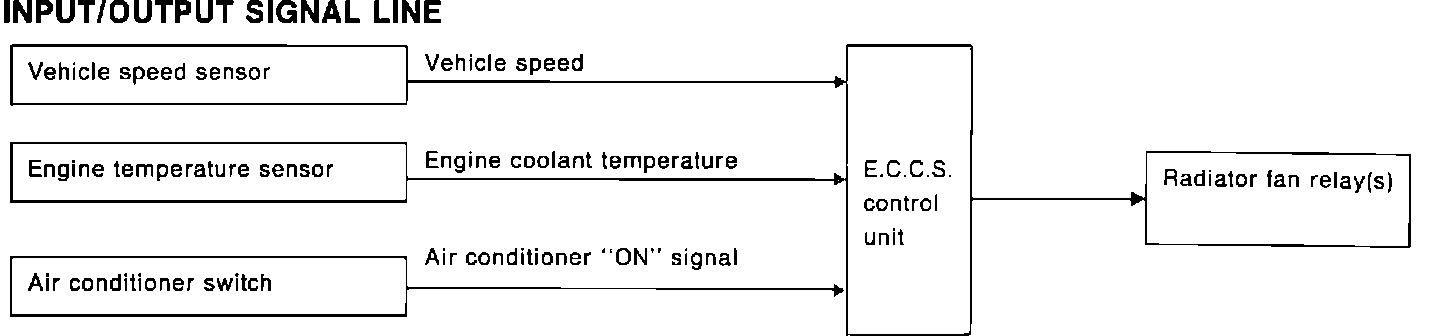

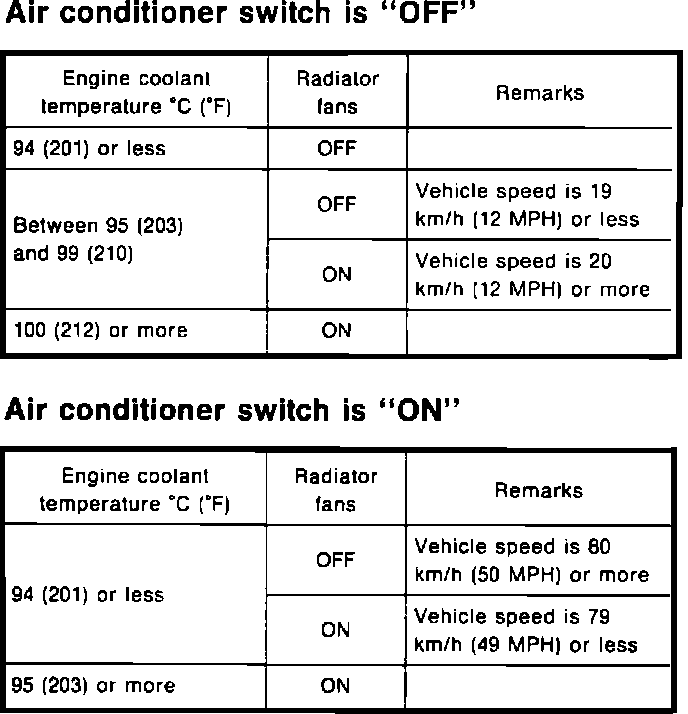

Refer to the figure for radiator fan operation operation.
